PRO Z 700 KW 760-S (53TIHKUV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kawasaki (2022) Drive Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kawasaki

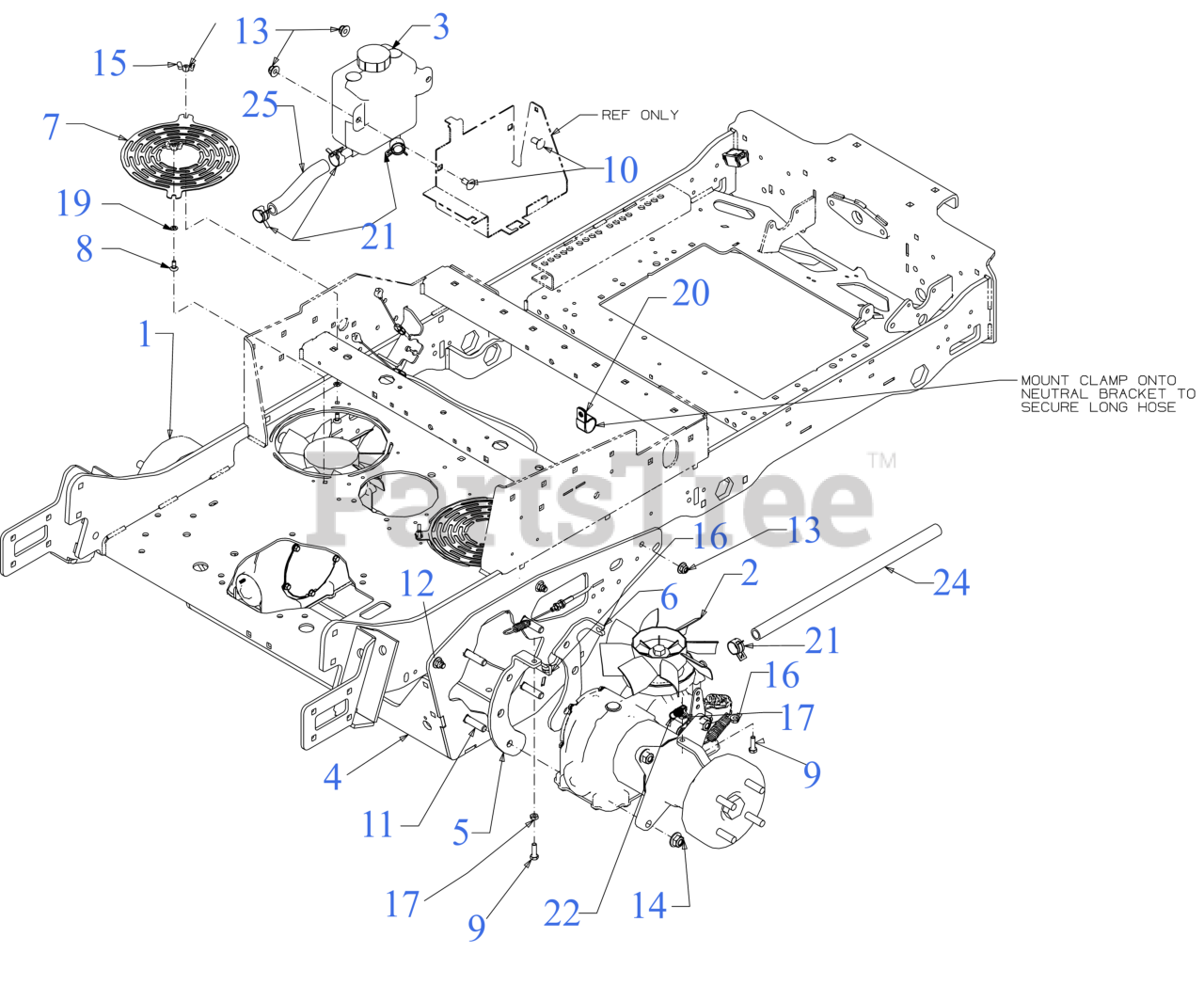

Drive Parts Diagram

  • Title
1

Cub Cadet 918-07021B

TRANSMISSION/MOTOR ASSEMBLY (LH) (PARKER)

Note: (See Separate Breakdown)

$3440.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07022B

TRANSMISSION/MOTOR ASSEMBLY (RH) (PARKER)

Note: (See Separate Breakdown)

$3440.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 931-05313

HYDRO TANK ASSEMBLY

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00358E

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$472.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10071

BRAKE SPRING MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10071-4021

BRAKE SPRING MOUNT - CUB YELLOW 2 (4021)

$41.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10072

BRAKE CABLE MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10072-4021

BRAKE CABLE MOUNTI - CUB YELLOW 2 (4021)

$35.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-27442

TRANSMISSION COVER PLATE

$35.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04191

CARRIAGE BOLT 1/2-13 GR5

$3.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

$3.99

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-05057

WING NUT 1/4-20

$5.49

$

In Stock, Qty 5

0

16

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

17

$6.99

$

In Stock, only 2 left!

0

19

Cub Cadet 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$13.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-05017

HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-05147

EXTENSION SPRING .500 OD x 1.71

$5.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 751-15380

OIL HOSE 5/8 ID x 18.00 LG

$48.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0
