PRO Z 700 KW 760-L (53TIHKTV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kawasaki (2018) Front Axle Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kawasaki

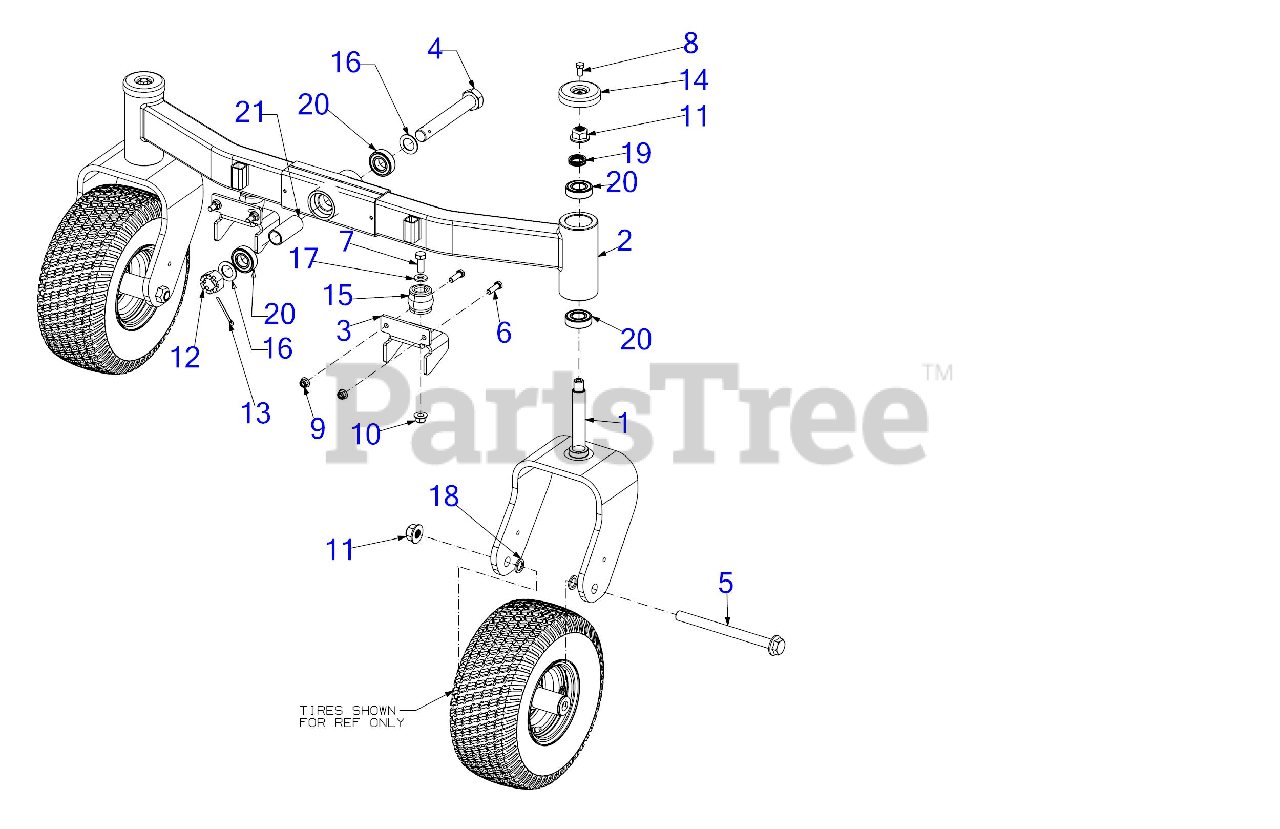

Front Axle Parts Diagram

  • Title
1

Cub Cadet 680-00509

FRONT CASTER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00509-4021

YELLOW FRONT CASTER A - CUB YELLOW 2 (4021)

$

$

Not available

$180.99

$

In Stock, only 1 left!

0

2

Cub Cadet 680-00529A

FRONT AXLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00529A-4021

YELLOW FRONT AXLE ASS - CUB YELLOW 2 (4021)

$779.99

$

Usually ships in 3-6 days

0

$630.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10434

AXLE BUMPER MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10434-4021

AXLE BUMPER MOUNTI - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-05189B

HEX HEAD SCREW 1-14 X 7 GR5
(Superseded to 710-05189C)

$59.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05388

SCREW 3/4-16 x 9.00 GR5

$32.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3032

SCREW 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

$3.99

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04338A

FLANGE LOCK NUT 3/4-16 TOP LOCK

$7.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-05159

CASTLE NUT 1.0-14 GR5

$31.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 14

0

14

Cub Cadet 721-04950

AXLE CAP 3"

$19.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 735-05159

AXIAL BUMPER

$49.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0277

FLAT WASHER 1.031 X1.62 X.095

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 936-0326

FLAT WASHER .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 736-04624

FLAT WASHER .75 x 1.13 x .10

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-05033A

WAVE WASHER

$4.99

$

In Stock, Qty 15

0

20

Cub Cadet 741-0941A

BALL BEARING

$17.99

$

In Stock, only 3 left!

0

21

Cub Cadet 750-06782

SPACER 1.00 X 1.25 X 2.99
(Superseded to 750-06782A)

$8.99

$

Usually ships in 3-6 days

0
