PRO Z 500 KW 560-S (53TIHJUV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Steering Column Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kawasaki

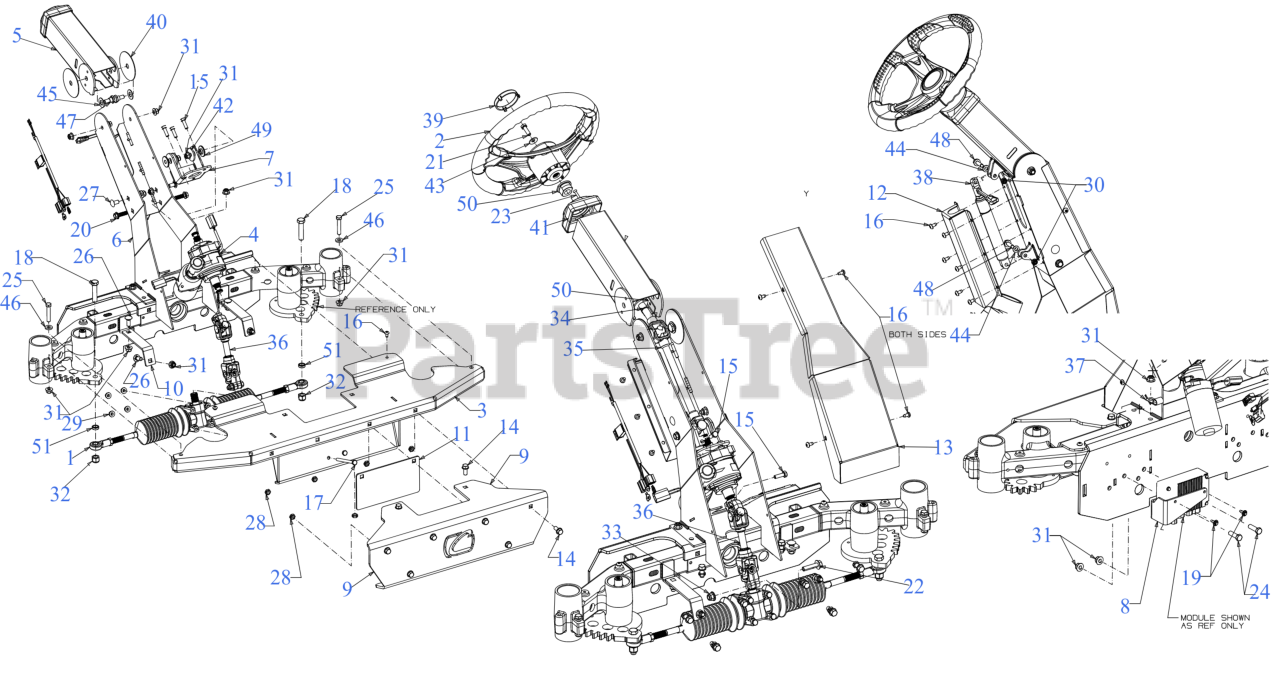

Steering Column Parts Diagram

  • Title

1

Cub Cadet 617P05123

STEERING GEARBOX

$

$

Not available

1

Cub Cadet 723-05001

FEMALE BALL JOINT

Note: (Not Shown)

$42.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-04008B

STEERING WHEEL

$94.99

$

In Stock, only 4 left!

0

3

Cub Cadet 680-00419

FRONT BUMPER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00419-4021

FRONT BUMPER ASSEM - CUB YELLOW 2 (4021)

$

$

Not available

$

$

4

Cub Cadet 980-00458A

POWER STEERING (W/MODULE AND HARNESS)

$1981.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 925-06825

POWER STEERING CONTROL MODULE

$866.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 725P06831

POWER STEERING WIRE HARNESS

$65.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00524A

UPPER PIVOT COLUMN ASSEMBLY
(Superseded to 680-00524A-4021)

Note: *CHOOSE COLOR WHEN ORDERING*

$99.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00525

COLUMN BASE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00525-4021

YELLOW BASE COLUMN AS - CUB YELLOW 2 (4021)

$149.99

$

Usually ships in 3-6 days

0

$121.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 680E01414

EPS PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$50.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10555B

STEERING MODULE MOUNTING BRACKET
(Superseded to 703-10555B-4021)

Note: *CHOOSE COLOR WHEN ORDERING*

$34.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10637A

FRONT BUMPER UPPER COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$81.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10662

RACK MOUNTING PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10662-4021

RACK MOUNTING PLAT - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10749

FRONT BUMPER BACKING PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10749-4021

FRONT BUMPER BACKI - CUB YELLOW 2 (4021)

$15.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-11256

TILT STEERING COLUMN COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-11256-4021

YELLOW TILT STEERING - CUB YELLOW 2 (4021)

$44.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-16861

COLUMN COVER
(Superseded to 703-16861-4021)

Note: *CHOOSE COLOR WHEN ORDERING*

$72.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-04629

SCREW M8-1.25 x 25 GR8.8

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 710-05410

SCREW 5/16-18 x 4.00 GR5

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-06059

SCREW 1/2-20 x 2.25

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0643

SCREW 5/16-18 x 1.00 GR5

$6.99

$

In Stock, Qty 5

0

22

Cub Cadet 710-06012A

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 7

0

23

Cub Cadet 710-1331

SCREW #10-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-05022

HEX NUT 1/2-20 GR8 NYLON

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 716-0231

E-RING

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 917-04905

STEERING SHAFT TOP

$228.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 717-06007

LOWER STEERING SHAFT
(Superseded to 717P06007)

$194.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 726-04124

J TYPE CLIP

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 727-05163

TILT STEERING DAMPENING CYLINDER

$97.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 731-04039

STEERING WHEEL CAP

$8.49

$

In Stock, only 1 left!

0

40

Cub Cadet 731-08236

COLUMN PLATE

$17.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 731-11491A

STEERING COLUMN COVER

$14.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 936-0227

FLAT WASHER
(Superseded to 736-0227)

$

$

Not available

43

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 936-0264

FLAT WASHER .344 x .62

$6.99

$

In Stock, only 3 left!

0

45

Cub Cadet 936-0414

TEFLON WASHER .565X1.20
(Superseded to 736-0414)

$

$

Not available

46

Cub Cadet 736-3010

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 738-04185

SHOULDER SCREW

$8.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 738-04363

SHOULDER SPACER

$5.99

$

In Stock, only 4 left!

0

50

Cub Cadet 741-07090

FLANGE BEARING

$15.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 750-04719

SPACER

$4.49

$

Usually ships in 3-6 days

0
