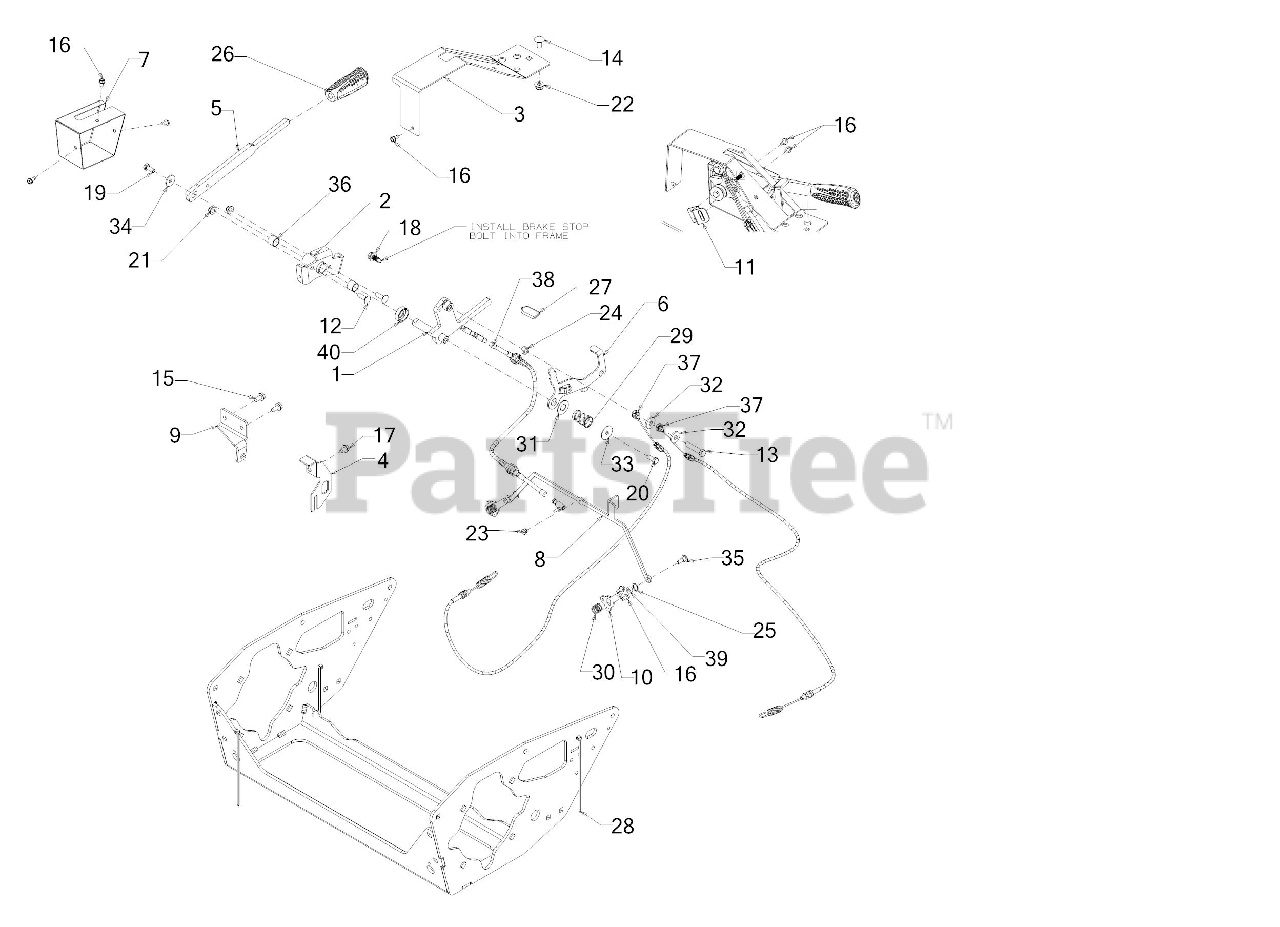

PRO Z 500 KW 560-S (53LIHJUV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kawasaki (2016) Brake Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kawasaki

Brake Parts Diagram

  • Title

1

Cub Cadet 680Z00435

PIVOT BRAKE SHAFT ASSEMBLY
(Superseded to 680E00435)

$81.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00436-4021

PIVOT TUBE ASSEMBLY
(Superseded to 680E00436)

$58.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10066

HYDRO DUMP LEVER COVER

Variations

Cub Cadet 703-10066-4021

HTDRO DUMP LEVER C - CUB YELLOW 2 (4021)

$37.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10076-4021

NEUTRAL SWITCH MOUNTING BRACKET
(Superseded to 703E10076)

$27.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10480A-4021

PARKING BRAKE LEVER

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10487A

DUMP VALVE RELEASE LEVER
(Superseded to 703E10487A)

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10540A-4021

BRAKE LEVER PIVOT COVER

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10545A

DUMP VALVE ACTUATOR BRACKET
(Superseded to 703E10545B)

$32.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10548-4021

CABLE MOUNTING BRACKET
(Superseded to 703E10548A)

$29.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703E10863

BYPASS LEVER

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10920-4021

3-POLE SWITCH BRACKET
(Superseded to 703E10920A)

$24.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

18

Cub Cadet 710-06335

HEX SCREW WASH TT 3/8-16 x .875

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-1880

SCREW 5/16-18 x .750

$4.99

$

In Stock, Qty 11

0

20

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04113

HEX NUT

$5.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 912-3017

HEX NUT
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 916-0114

SNAP RING

$6.99

$

In Stock, only 2 left!

0

26

Cub Cadet 720-04139B

GRIP

$18.99

$

In Stock, Qty 10

0

27

Cub Cadet 720-0433

SEAT ADJUSTER GRIP

$10.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 732-04481

COMPRESSION SPRING .844X.970X1.50

$5.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 732-04877

COMPRESSION SPRING

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 736-0187

FLAT WASHER .640ID X1.24OD x .06

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 4 left!

0

33

Cub Cadet 736-0362

FLAT WASHER .322 ID x 1.25 x .060

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 736-04117

FLAT WASHER 1.0 OD:.331 ID

$3.49

$

In Stock, Qty 20+

0

35

Cub Cadet 738-0706D

SHOULDER SCREW .375X.280:1/4-14

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 741-04555

SLEEVE BEARING

$16.99

$

In Stock, Qty 18

0

37

Cub Cadet 946-05103A

BRAKE CABLE

$42.99

$

In Stock, only 1 left!

0

38

Cub Cadet 946-05283A

NEUTRAL CONTROL CABLE

$125.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 750-05297

SPACER

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 750-06515

SPACER

$31.99

$

Usually ships in 3-6 days

0
