PRO Z 500 KW 560-L (53TIHJTV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kawasaki (2018) Front Axle Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kawasaki

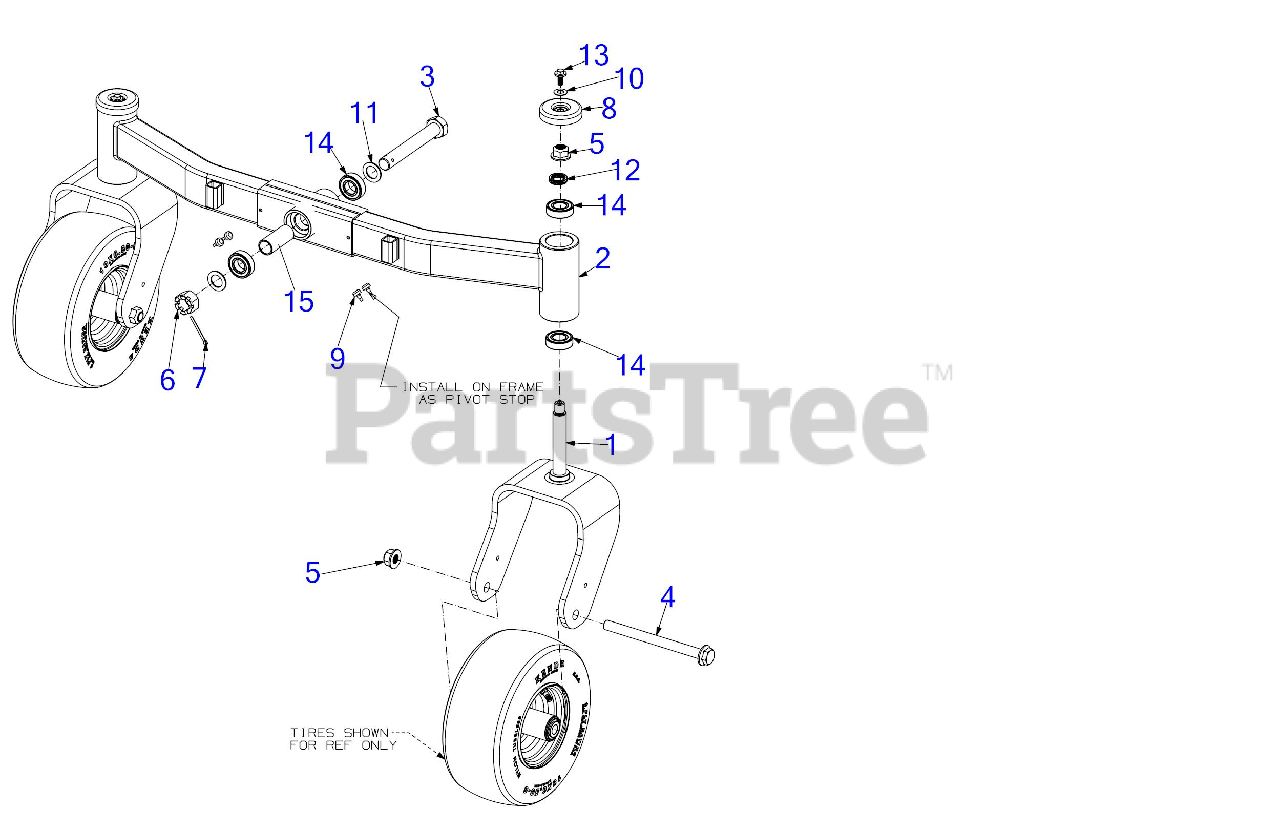

Front Axle Parts Diagram

  • Title

1

Cub Cadet 680-00509

FRONT CASTER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00509-4021

YELLOW FRONT CASTER A - CUB YELLOW 2 (4021)

$

$

Not available

$180.99

$

In Stock, only 1 left!

0

2

Cub Cadet 680-00529A

FRONT AXLE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00529A-4021

YELLOW FRONT AXLE ASS - CUB YELLOW 2 (4021)

$779.99

$

Usually ships in 3-6 days

0

$630.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-05189C

SCREW 1-14:7.0 GR5

$59.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-05388

SCREW 3/4-16 x 9.00 GR5

$32.99

$

In Stock, only 4 left!

0

5

Cub Cadet 712-04338A

FLANGE LOCK NUT 3/4-16 TOP LOCK

$7.99

$

In Stock, only 1 left!

0

6

Cub Cadet 712-05159

CASTLE NUT 1.0-14 GR5

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 14

0

8

Cub Cadet 721-04950

AXLE CAP 3"

$19.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, only 1 left!

0

10

Cub Cadet 936-0253

BELL WASHER
(Superseded to 736-0253)

$

$

Not available

11

Cub Cadet 736-0277

FLAT WASHER 1.031 X1.62 X.095

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-05033A

WAVE WASHER

$4.99

$

In Stock, Qty 15

0

13

Cub Cadet 738-04149

SCREW

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 741-0941A

BALL BEARING 1.0 x 52 x 15

$17.99

$

In Stock, only 3 left!

0

15

Cub Cadet 750-06782

SPACER 1.00 X 1.25 X 2.99
(Superseded to 750-06782A)

$8.99

$

Usually ships in 3-6 days

0
