PRO Z 500 KW 554-S (53TIHJUN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Pedal Control Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

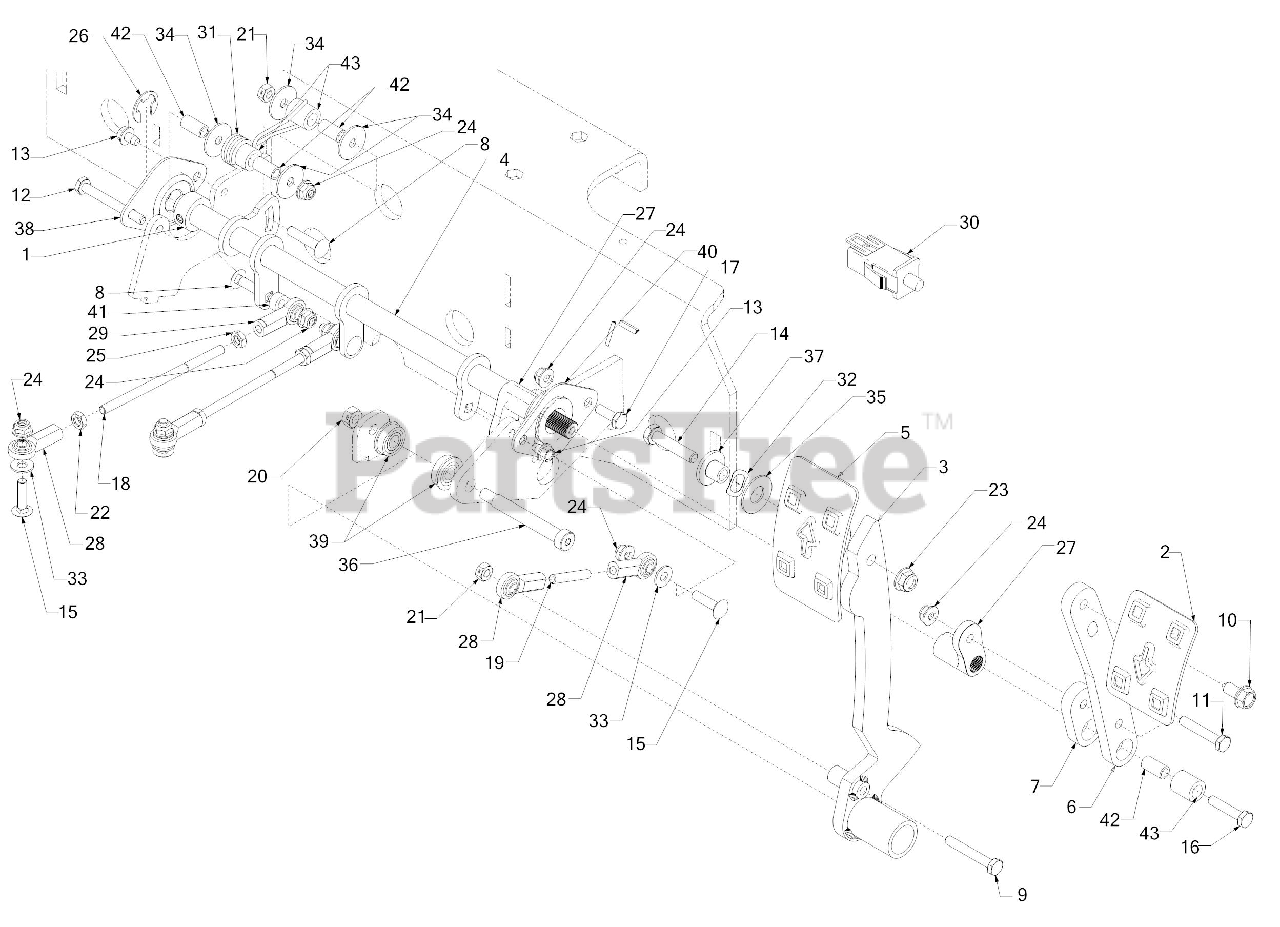

Pedal Control Parts Diagram

  • Title
1

Cub Cadet 01006350

SHAFT COLLAR .625

$24.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00438

REVERSE PEDAL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00438-4021

REVERSE PEDAL ASSE - CUB YELLOW 2 (4021)

$41.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00441

FORWARD PEDAL ARM ASSEMBLY
(Superseded to 680E00441)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00441-4021

FORWARD PEDAL ARM - CUB YELLOW 2 (4021)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680Z00446

SPEED CONTROL ARM ASSEMBLY

$127.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00447

FORWARD PEDAL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00447-4021

FORWARD PEDAL ASSE - CUB YELLOW 2 (4021)

$35.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10506A

REVERSE PEDAL PLATE
(Superseded to 703E10506B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10506A-4021

PLT:REV CUB YLLW 2 - CUB YELLOW 2 (4021)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10514

REVERSE PEDAL SPACER
(Superseded to 703E10514)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10514-4021

REVERSE PEDAL SPAC - CUB YELLOW 2 (4021)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0111

CARRIAGE BOLT 1/4-20 x 1.25 Gr5

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0136

HEX SCREW 1/4-20 x 1.75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-05289

SCREW 1/4-20 x 1.50 GR8

$5.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0641

SCREW 1/4-20 x 2.25 GR5

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 710-0653

SCREW 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

14

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0932A

SCREW 1/4-20 x 1 GR5

$3.99

$

In Stock, only 4 left!

0

16

Cub Cadet 710-1062

SCREW 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 711-05493

SPEED CONTROL ROD

$17.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 711-06634

STUD - 1/4-28

$16.99

$

Usually ships in 3-6 days

0

20

$3.49

$

In Stock, Qty 18

0

21

Cub Cadet 912-0291

HEX NUT
(Superseded to 712-0291)

$

$

Not available

22

Cub Cadet 712-0314

HEX JAM NUT 1/4-28

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04326

JAM NUT 1/4-28 LH

$14.99

$

In Stock, only 1 left!

0

$5.49

$

In Stock, only 2 left!

0

27

$20.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 723-04077

END ROD (RH)

$22.99

$

Usually ships in 3-6 days

0

29

$26.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 925-3164A

PLUNGER SWITCH

$40.99

$

In Stock, Qty 20+

0

31

Cub Cadet 732-04955

TORSION SPRING

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0232

WAVE WASHER
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

33

Cub Cadet 736-04446

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-04511

FLAT WASHER

$3.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-3084

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 738-05003

SHOULDER BOLT .375 x 2.50 x 5/16-18

$11.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-05022

DOUBLE SHOULDER SPACER

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 741-04566

BALL BEARING

$15.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 741-04568

FLANGE BEARING

$38.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-04569

BALL BEARING

$25.99

$

Usually ships in 3-6 days

0

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 750-05369

SPACER .260 x .375 x .75

$5.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 750-0807

SPACER-.375X.625X.600

$6.49

$

Usually ships in 3-6 days

0
