PRO Z 500 KW 554-S (53TIHJUN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Deck Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

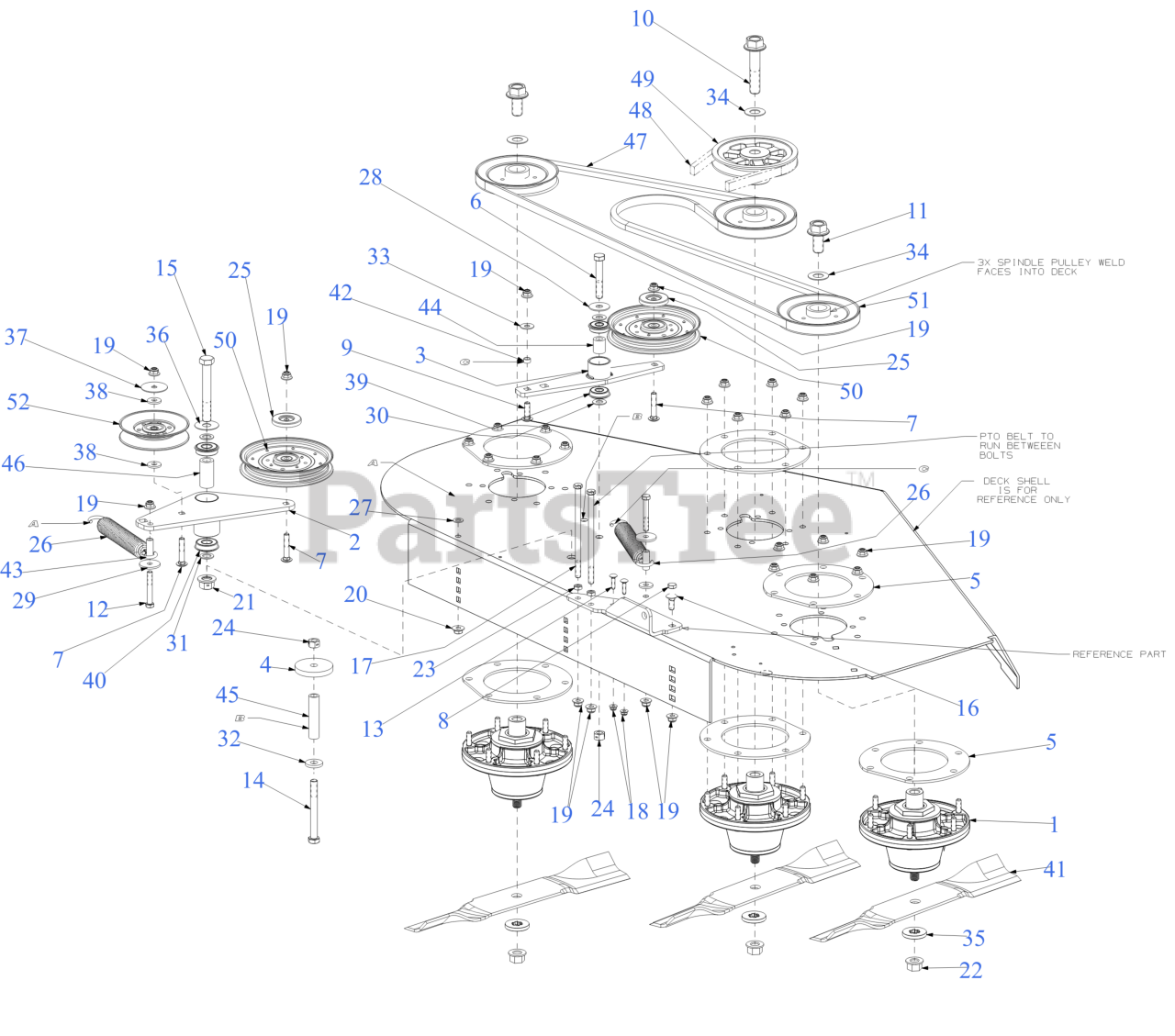

Deck Parts Diagram

  • Title

1

Cub Cadet 918-08473

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$335.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00521

PTO IDLER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00521-4021

YELLOW PTO IDLER ASSE - CUB YELLOW 2 (4021)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680E00522A

IDLER BRACKET

$60.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E08855

SPACER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E11199

SPINDLE SUPPORT BRACKET TOP/BTM

$49.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$8.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-08054

CAP SCREW-HHFLG 3/4-10 X 3.50 GR8

$16.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-08055

CAP SCREW-HHFLG 3/4-10 X 1.50 GR8

$7.49

$

In Stock, Qty 7

0

12

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

13

Cub Cadet 710-0932A

SCREW 1/4-20 x 1 GR5

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$11.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-3151A

SCREW 5/8-18X4.5 GR5

$18.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3261

SCREW 3/8-16 x 7.00 GR5

$13.99

$

In Stock, only 2 left!

0

18

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

21

Cub Cadet 712-04327

NUT

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3008

HEX JAM NUT 3/8-16 GR5

$4.99

$

In Stock, Qty 19

0

24

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 9

0

25

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

26

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 12

0

27

Cub Cadet 736-0185

FLAT WASHER

$3.99

$

In Stock, only 2 left!

0

28

Cub Cadet 736-0208

WASHER .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

29

Cub Cadet 736-0227

FLAT WASHER .390x1.500x.134

$6.49

$

In Stock, Qty 13

0

30

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0290

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

32

Cub Cadet 736-04019

FLAT WASHER .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

33

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

34

Cub Cadet 736-0445

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0

35

Cub Cadet 736-05223A

FLAT WASHER - SPECIAL

$6.99

$

In Stock, Qty 15

0

36

Cub Cadet 736-05255

THRUST WASHER .635x1.750x0.055

$1.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

38

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 5

0

40

Cub Cadet 941-0563

BALL BEARING W/RET

$36.99

$

In Stock, Qty 11

0

41

Cub Cadet 942-04416

19" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

41

Cub Cadet 490-110-C186

Cub Cadet 54" HI LIFT BLADE SET

Note: Retail Packaged Part

$99.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 942-04416-XG

19" BLADE (HI LIFT)

$

$

Not available

41

Cub Cadet 742-04416-ES

19" BLADE (HI LIFT)

$52.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 742P04416-L

LOW-LIFT 19"BLADE (54"DECK)

$28.99

$

In Stock, only 3 left!

0

41

Cub Cadet 02005018-X

BLADE- HI LIFT 19.0 XTREME
(Superseded to 02005018P-X)

$24.99

$

In Stock, Qty 6

0

41

Cub Cadet 01005380

BLADE-19"MULCH 54"
(Superseded to 01005380P-X)

$42.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01005380P-X

19" XTREME BLADE

$42.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 750-0526

SPACER

$4.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 750-05673

SPACER

$8.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 4 left!

0

45

Cub Cadet 750-06561

SPACER

$8.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.99

$

In Stock, only 1 left!

0

47

Cub Cadet 954-04327

BELT-B SECTION 119.45"

$119.99

$

In Stock, only 1 left!

0

48

Cub Cadet 954-05127

V-BELT B SEC x 101.1

$156.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 756-04485

PULLEY-6.96 OD x .750 ID

$171.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, only 1 left!

0

51

Cub Cadet 756-04500

SPINDLE PULLEY 6"

$34.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 756-04522

IDLER PULLEY 5.06 OD

$39.99

$

In Stock, Qty 5

0
