PRO Z 500 KW 554-S (53TIHJUN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2020) Seat Mounting Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

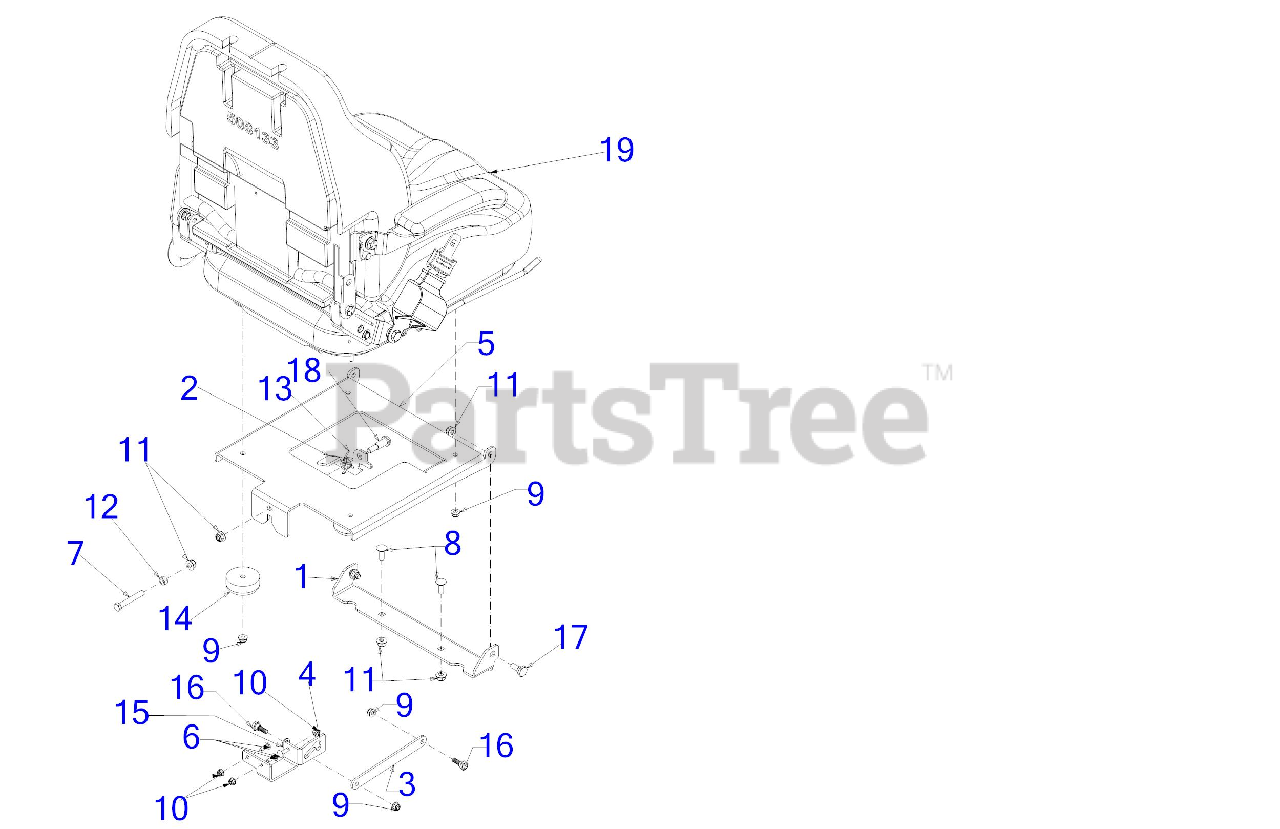

Seat Mounting Parts Diagram

  • Title
1

Cub Cadet 703-10262

SEAT PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10262-4021

SEAT PIVOT BRACKET - CUB YELLOW 2 (4021)

$42.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10270

SEAT LATCH LEVER
(Superseded to 703E10270)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10270-4021

SEAT LATCH LEVER - CUB YELLOW 2 (4021)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E10273

SEAT LOCKOUT BRACKET

$24.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10274

SEAT LOCKOUT MOUNT
(Superseded to 703E10274)

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10320

SEAT MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10320-4021

SEAT MOUNTING BRAC - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

$66.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 17

0

8

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 912-3017

HEX NUT
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 732-05392

TORSION SPRING

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-04286

RUBBER BUMPER

$8.99

$

In Stock, Qty 12

0

15

Cub Cadet 736-3024

FLAT WASHER .469X.750X.054

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 938-0296

SHOULDER SCREW .437 DIA x .265
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 938-0380

SHOULDER SCREW
(Superseded to 738-0380)

$7.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 19

0

19

Cub Cadet 757-05068A

SEAT ASSEMBLY W/SUSPENSION
(Superseded to 757P05068A)

Note: (See Separate Breakdown)

$1092.99

$

Usually ships in 3-6 days

0
