PRO Z 500 KW 554-L (53RIHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2016) Drive Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

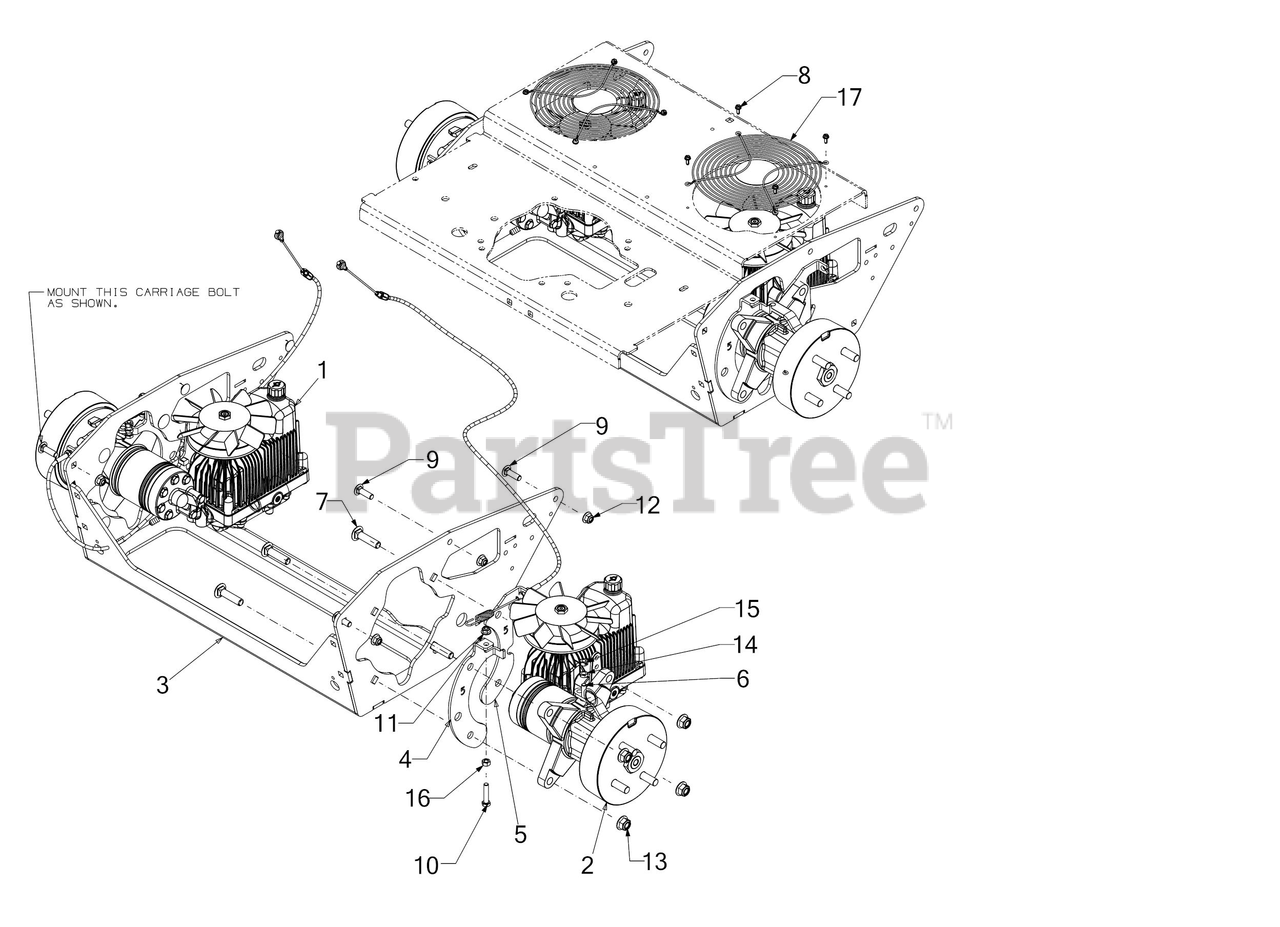

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07195A

TRANSMISSION / MOTOR ASSEMBLY (LH)
(Superseded to 918-07195B)

Note: (See Separate Breakdown)

$2229.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07197A

TRANSMISSION / MOTOR ASSEMBLY (RH)
(Superseded to 918-07197B)

Note: (See Separate Breakdown)

$2229.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00358B-4021

TRANSMISSION MOUNTING BRACKET ASSEMBLY
(Superseded to 680-00358E-4021)

$584.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09657A-0637

SPRING BRAKE MOUNTING BRACKET

$29.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09658A-0637

BRAKE CABLE BRACKET

$24.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 710-04191

CARRIAGE BOLT 1/2-13 GR5

$3.49

$

In Stock, only 2 left!

0

8

Cub Cadet 1767754

SCREW 10-24 x 0.500
(Superseded to 710-04460)

$

$

Not available

9

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

15

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

16

Cub Cadet 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 732-04833

FAN COVER

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 732-05147

EXTENSION SPRING .500 OD x 1.71

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0
