PRO Z 500 EFI 554-L (53RWHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2016) Deck Lift Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

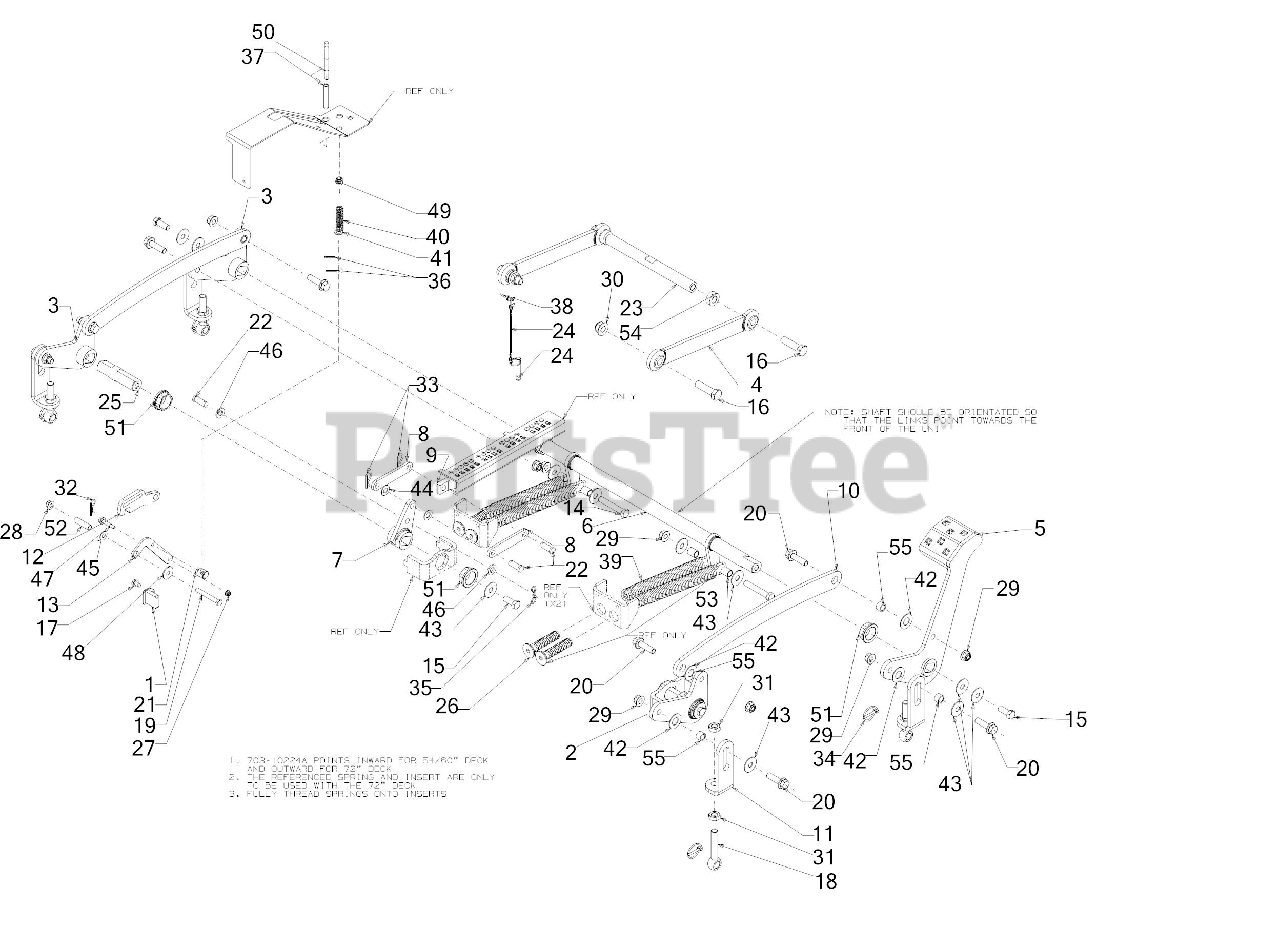

Deck Lift Parts Diagram

  • Title
1

Cub Cadet 680-00158-4021

LIFT LOCK MOUNT
(Superseded to 680E01914)

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00375-4021

DECK LIFT BELLCRANK ASSEMBLY (RH)

$77.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00393-4021

DECK LIFT BELLCRANK ASSEMBLY (LH)

$72.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00402-4021

FRONT DECK ROD ASSEMBLY

$109.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00416-4021

FOOT DECK LIFT BELLCRANK ASSEMBLY (RH)

$153.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680Z00444

FRONT DECK LIFT SHAFT

$245.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 680-00445

DECK LIFT HUB ASSEMBLY (LH)
(Superseded to 680Z00445)

$51.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08384

DECK LIFT LINK

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08388A

DECK LIFT LINK

$321.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10178-4021

DECK LIFT LINK

$36.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10224A-4021

DECK LIFT LINK ARM ADJUSTER

$34.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-10599A

LOCK LATCH BRACKET
(Superseded to 703E10599A)

Variations

Cub Cadet 703-10599A-0637

LOCK LATCH BRACKET - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703E10600

PIVOT LOCKOUT LINK

$32.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0182

HEX SCREW 1/2-13 x 3.00
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-04186

SCREW 1/2-13 x 1.25 GR5

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet 710-06047

SCREW 5/8-11 x 2.25 GR5

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

18

Cub Cadet 710-06428

EYE BOLT 5/8-11 X 3.63

$23.99

$

In Stock, only 1 left!

0

19

Cub Cadet 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, Qty 7

0

20

Cub Cadet 710-3067

BOLT-1/2-13X1.75LG

$6.99

$

In Stock, only 2 left!

0

21

Cub Cadet 911-04038

BRAKE FERRULE

$19.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-04061

CLEVIS PIN .500 x 1.25

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-05072

FRONT LIFT SHAFT

$61.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 711-05629

DETENT PIN

$14.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 711-06610

LIFT SHAFT (LH)

$42.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 711-06667

SPRING INSERT SCREW

$39.99

$

In Stock, only 2 left!

0

27

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 14

0

31

Cub Cadet 912-3015

HEX NUT
(Superseded to 712-3015)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 914-0149B

COTTER PIN
(Superseded to 714-0149B)

$

$

Not available

34

$9.99

$

In Stock, Qty 20+

0

35

Cub Cadet 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 18

0

36

Cub Cadet 914-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 17

0

$4.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 728-04016

FULL TUBULAR RIVET

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 732-05476

EXTENTION SPRING 1.20 x 11.35

$34.99

$

In Stock, only 3 left!

0

40

Cub Cadet 732-0992

COMPRESSION SPRING .656 ODX 2.445"

$4.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0188

FLAT WASHER .760ID X1.49OD x .06

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 936-0208

WASHER .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

44

Cub Cadet 936-0272

FLAT WASHER .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 936-0326

FLAT WASHER .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

47

Cub Cadet 738-04185

SHOULDER SCREW

$8.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 738-04363

SHOULDER SPACER

$5.99

$

In Stock, only 4 left!

0

49

Cub Cadet 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 747-06701

DECK LOCK OUT ROD

$15.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 948-3051

FLANGE BEARING
(Superseded to 948-3051A)

$26.99

$

Usually ships in 3-6 days

0

$5.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 750-06078

SPACER 0.535 X 0.68 X 0.83

$4.49

$

Usually ships in 3-6 days

0

$13.99

$

In Stock, only 3 left!

0

55

$16.99

$

In Stock, only 1 left!

0
