PRO Z 500 EFI 554-L (53RWHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2016) Belts, Blades & Spindles Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

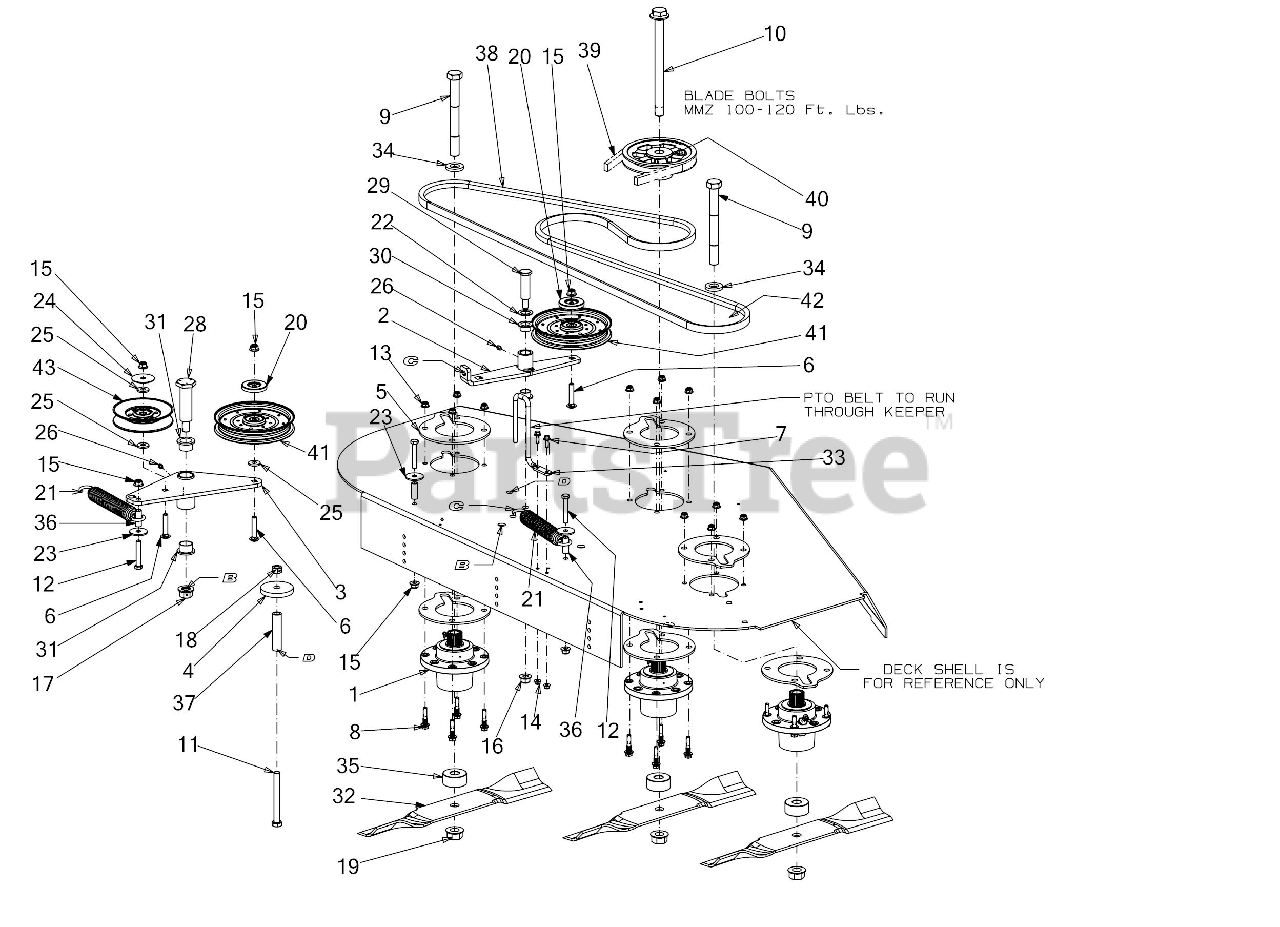

Belts, Blades & Spindles Parts Diagram

  • Title

1

Cub Cadet 918-05132

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$354.99

$

In Stock, only 2 left!

0

2

Cub Cadet 680-00167A-4021

IDLER BRACKET
(Superseded to 680E00167A)

$74.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00319-4021

PTO IDLER ASSEMBLY
(Superseded to 680E00319)

$117.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08855-4021

SPACER PLATE
(Superseded to 703E08855)

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E10057

SPINDLE SUPPORT PLATE
(Superseded to 703E10057A)

Variations

Cub Cadet 703E10057-4021

USE 703E10057A-4021 SPINDLE S - CUB YELLOW 2 (4021)

$27.99

$

In Stock, only 1 left!

0

$25.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$8.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

0

8

Cub Cadet 710-04831A

BOLT 5/16-18 x 1.50 GR5

$7.99

$

In Stock, Qty 12

0

9

Cub Cadet 710-05387

SCREW 3/4-16 x 7.00 GR5

$14.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-05388

SCREW 3/4-16 x 9.00 GR5

$32.99

$

In Stock, only 4 left!

0

11

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$11.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04327

NUT

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3078

HEX FLANGE NUT 3/4

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

21

Cub Cadet 732-05360A

SPRING 1.25" DIA X 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 20+

0

22

Cub Cadet 936-0287

FLAT WASHER .793ID x 1.24OD x .060
(Superseded to 736-0287)

$

$

Not available

23

Cub Cadet 936-3039

FLAT WASHER .406X1.500X.105
(Superseded to 736-3039)

$

$

Not available

24

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

25

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 937-0146

GREASE FITTING

$5.49

$

In Stock, only 2 left!

0

28

Cub Cadet 738-05030

SHOULDER SCREW 1.0 x 3.15

$27.99

$

In Stock, only 1 left!

0

29

Cub Cadet 938-3110

SHOULDER SCREW

$33.99

$

In Stock, Qty 5

0

30

Cub Cadet 741-0338

FLANGE BEARING

$9.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-04552

BUSHING

$9.49

$

In Stock, only 2 left!

0

32

Cub Cadet 942-04416

19" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

33

Cub Cadet 747-06840

ROD KEEPER
(Superseded to 747-06840A)

$16.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-05553

SPACER .812 ID x .218 LG

$9.99

$

In Stock, Qty 20+

0

35

Cub Cadet 750-05617

SPACER

$12.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 750-05673

SPACER

$8.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-06561

SPACER

$8.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 954-04327

BELT-B SECTION x 119.45

$119.99

$

In Stock, only 1 left!

0

39

Cub Cadet 954-05127

V-BELT B SEC X 101.1

$156.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-04485

PULLEY-6.96 OD x .750 ID

$171.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, Qty 12

0

42

Cub Cadet 756-04500

SPINDLE PULLEY 6"

$34.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 756-04522

IDLER PULLEY 5.06 OD

$39.99

$

In Stock, only 4 left!

0
