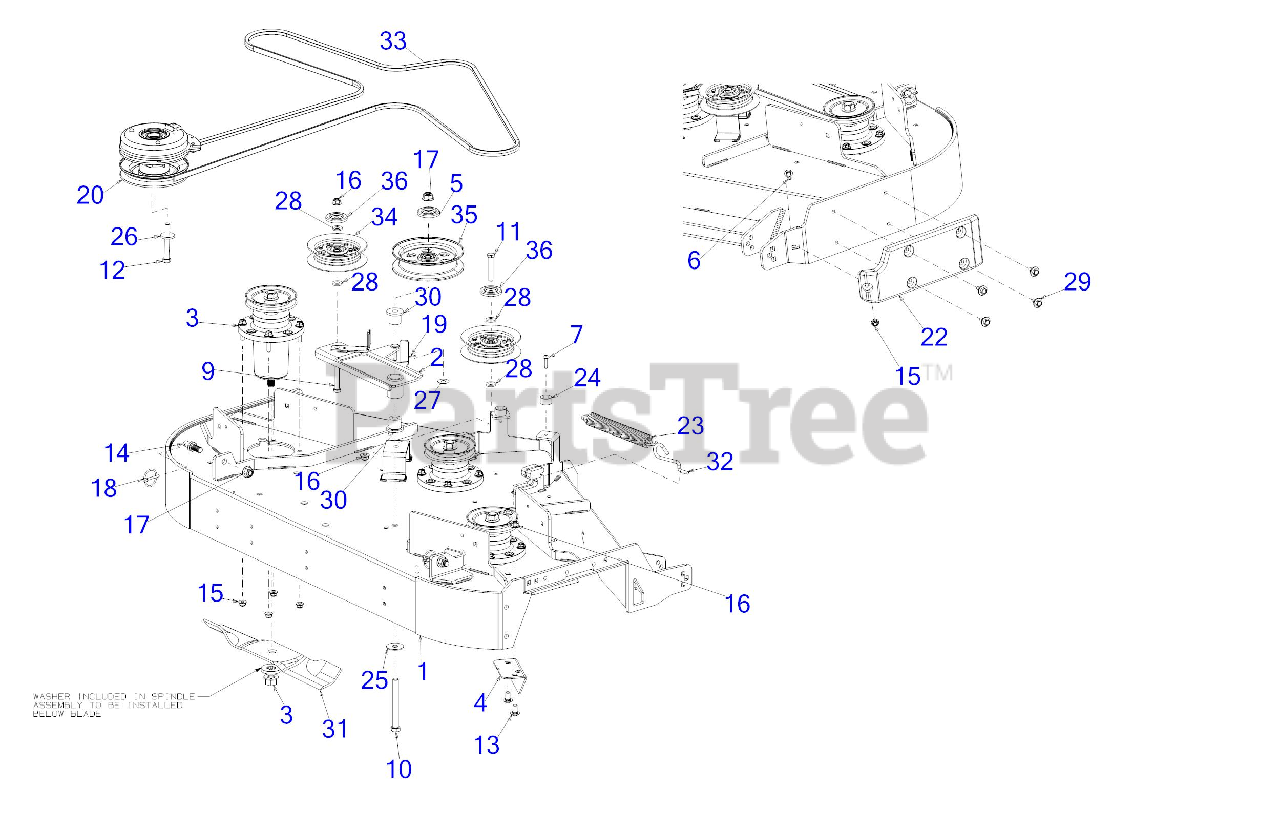

PRO Z 100 EFI 148-L (53TWEHRF050) - Cub Cadet 48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2019) Deck Parts Diagram

48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

Deck Parts Diagram

  • Title
1

Cub Cadet 603-05268B

48" FAB DECK ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05268B-4021

YELLOW 48 FAB DECK AS - CUB YELLOW 2 (4021)

$1610.99

$

Usually ships in 3-6 days

0

$1400.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603E05284

IDLER ARM ASSEMBLY

$105.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 783-08027-0637

BELT GUARD 54"

Note: (Not Shown)

$22.99

$

In Stock, only 1 left!

0

3

Cub Cadet 918-07417

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$221.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 490-130-C021

Cub Cadet 48" SPINDLE ASSEMBLY (07417)

Note: Retail Packaged Part

$199.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09435

DECK CHUTE BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09435-0637

BAFFLE-DECK CHUTE - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09435-4021

BAFFLE-DECK CHUTE - CUB YELLOW 2 (4021)

$19.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-11553

PULLEY CAP

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 12

0

7

Cub Cadet 710-05074

SCREW 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

10

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$11.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

$6.49

$

In Stock, only 2 left!

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

$4.49

$

In Stock, only 1 left!

0

18

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet 914-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 17

0

20

Cub Cadet 917-05192

ELECTRIC PTO CLUTCH

$623.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-11926

DECK SKID PLATE (LH)

$50.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

$5.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 936-0208

WASHER .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

26

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

27

Cub Cadet 936-0344

FLAT WASHER
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

29

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 741-05211

SHOULDER SPACER

$9.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 942-04417

17" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

31

Cub Cadet 490-110-C185

Cub Cadet 48" HI LIFT BLADE SET

Note: Retail Packaged Part

$86.99

$

In Stock, only 1 left!

0

31

Cub Cadet 942-04417-ES

17" HI-LIFT BLADE 0.756 ID
(Superseded to 742-04417-ES)

$50.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 742P04417-L

LOW-LIFT 17" BLADE (48"DECK)

$27.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02005017-X

BLADE-HI LIFT 17.0
(Superseded to 02005017P-X)

$29.99

$

In Stock, Qty 8

0

31

Cub Cadet 942-04278A

17" BLADE (MULCH)
(Superseded to 742P04278A-X)

$39.99

$

In Stock, Qty 6

0

32

Cub Cadet 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 954-05012A

DECK BELT A SEC x 137"

$80.99

$

In Stock, only 2 left!

0

33

Cub Cadet 490-501-C093

Cub Cadet 48"Z-FORCEDECK BELT (05012)

Note: Retail Packaged Part

$80.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 756-05062

IDLER PULLEY 4.0

$68.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 756-05331

FLAT IDLER PULLEY 5"

$53.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
