PRO Z 100 EFI 148-L (53RWEHRF250) - Cub Cadet 48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2017) Fuel Hose Parts Diagram

48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

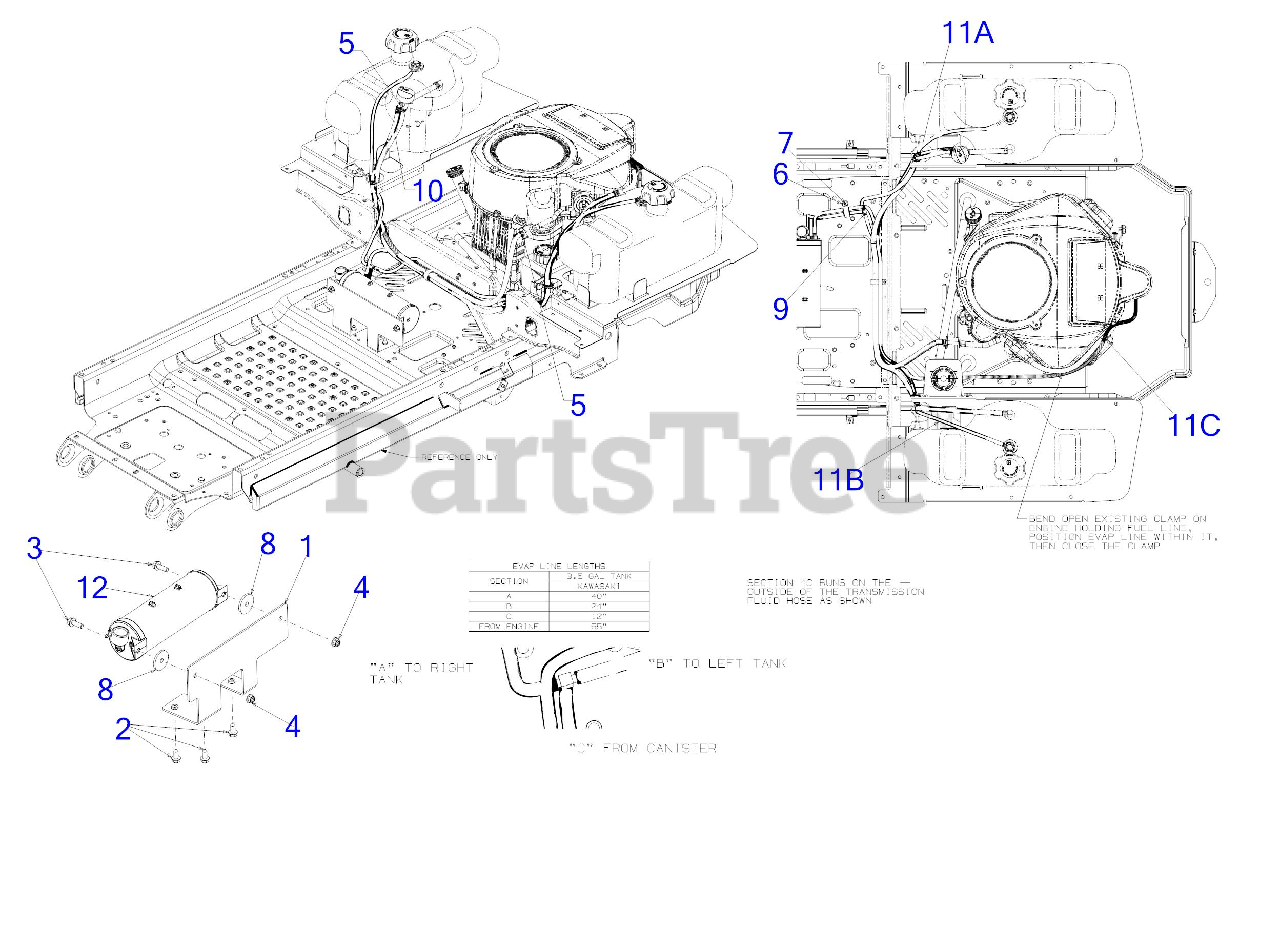

Fuel Hose Parts Diagram

  • Title

1

Cub Cadet 703-11140

CARBON CANISTER MOUNT BRACKET
(Superseded to 703-11140A)

$30.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 18

0

6

Cub Cadet 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 726-3046

RATCHET CLIP .250

$3.99

$

In Stock, Qty 16

0

8

Cub Cadet 736-0505

FLAT WASHER

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet 737-04341

FUEL FITTING

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 751-10349-45

FUEL HOSE LOW PERMEATION

$41.99

$

Usually ships in 3-6 days

0

11A

Cub Cadet 751-12089-45

VENT HOSE 3/16 ID

$12.99

$

In Stock, only 1 left!

0

11B

Cub Cadet 751-12089-28

VENT HOSE 3/16 ID

$8.99

$

In Stock, only 1 left!

0

11C

Cub Cadet 751-12089-18

VENT HOSE 3/16 ID

$6.49

$

In Stock, only 1 left!

0

12

Cub Cadet 751-15400

CARBON CANISTER - 9.32 GAL

$105.99

$

Usually ships in 3-6 days

0
