PRO Z 100 EFI 148-L (53RWEHRF250) - Cub Cadet 48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2017) Front Axle Parts Diagram

48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

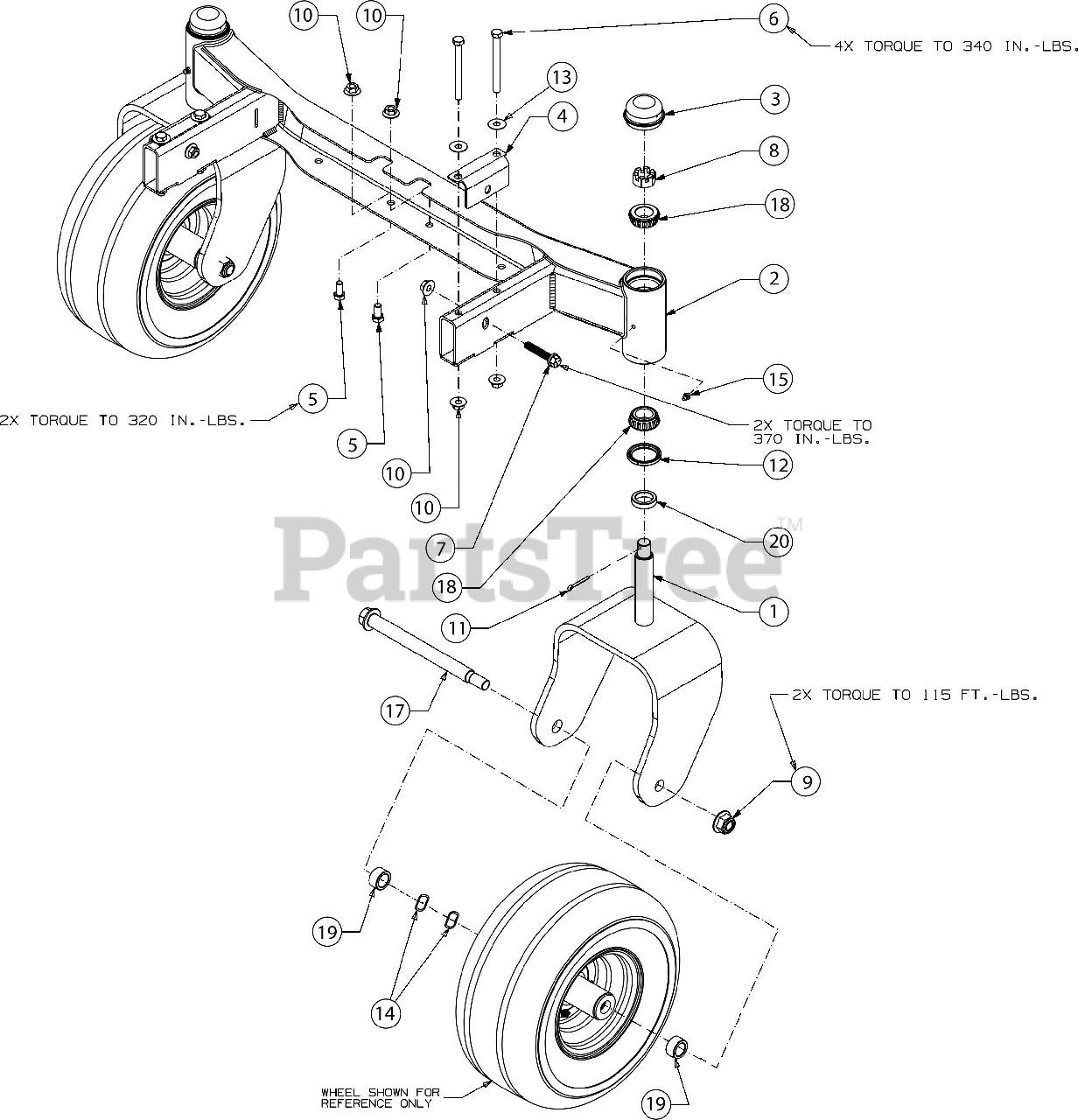

Front Axle Parts Diagram

  • Title
1

Cub Cadet 603-05251

CASTER BRACKET ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05251-4021

Caster Bracket Assembly - CUB YELLOW 2 (4021)

$146.99

$

In Stock, only 1 left!

0

Cub Cadet 603-05251-0637

BRACKET ASM-CASTER - POWDER BLACK (0637)

$146.99

$

Usually ships in 3-6 days

0

$118.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05278

FRONT AXLE ASSEMBLY (W/RACES)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05278-4021

AXLE ASM-FRONT - CUB YELLOW 2 (4021)

$961.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05278-0637

AXLE ASM-FRONT - POWDER BLACK (0637)

$894.99

$

Usually ships in 3-6 days

0

$778.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10384

AXLE GREASE CAP

$15.99

$

In Stock, only 2 left!

0

4

Cub Cadet 703-10631

FRONT AXLE SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10631-0637

FRONT AXLE SUPPORT - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-10631-4021

FRONT AXLE SUPPORT - CUB YELLOW 2 (4021)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

6

Cub Cadet 710-04576

SCREW 3/8-16 x 3.75 GR5

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-06093

SCREW 3/8-16 x 2.00 GR5

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 14

0

11

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, Qty 6

0

13

Cub Cadet 936-0344

FLAT WASHER
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0621

WAVE WASHER .785X1.00X.012

$17.99

$

In Stock, Qty 11

0

15

Cub Cadet 737-04345

GREASE ZERT 1/4-28

$4.99

$

In Stock, Qty 6

0

17

Cub Cadet 738-05168

SHOULDER BOLT

$25.99

$

In Stock, only 1 left!

0

18

Cub Cadet 741-05055

ROLLER BEARING 47MM x 25MM x 15MM

$19.99

$

In Stock, only 3 left!

0

$6.49

$

In Stock, only 2 left!

0

20

$5.49

$

In Stock, Qty 6

0
