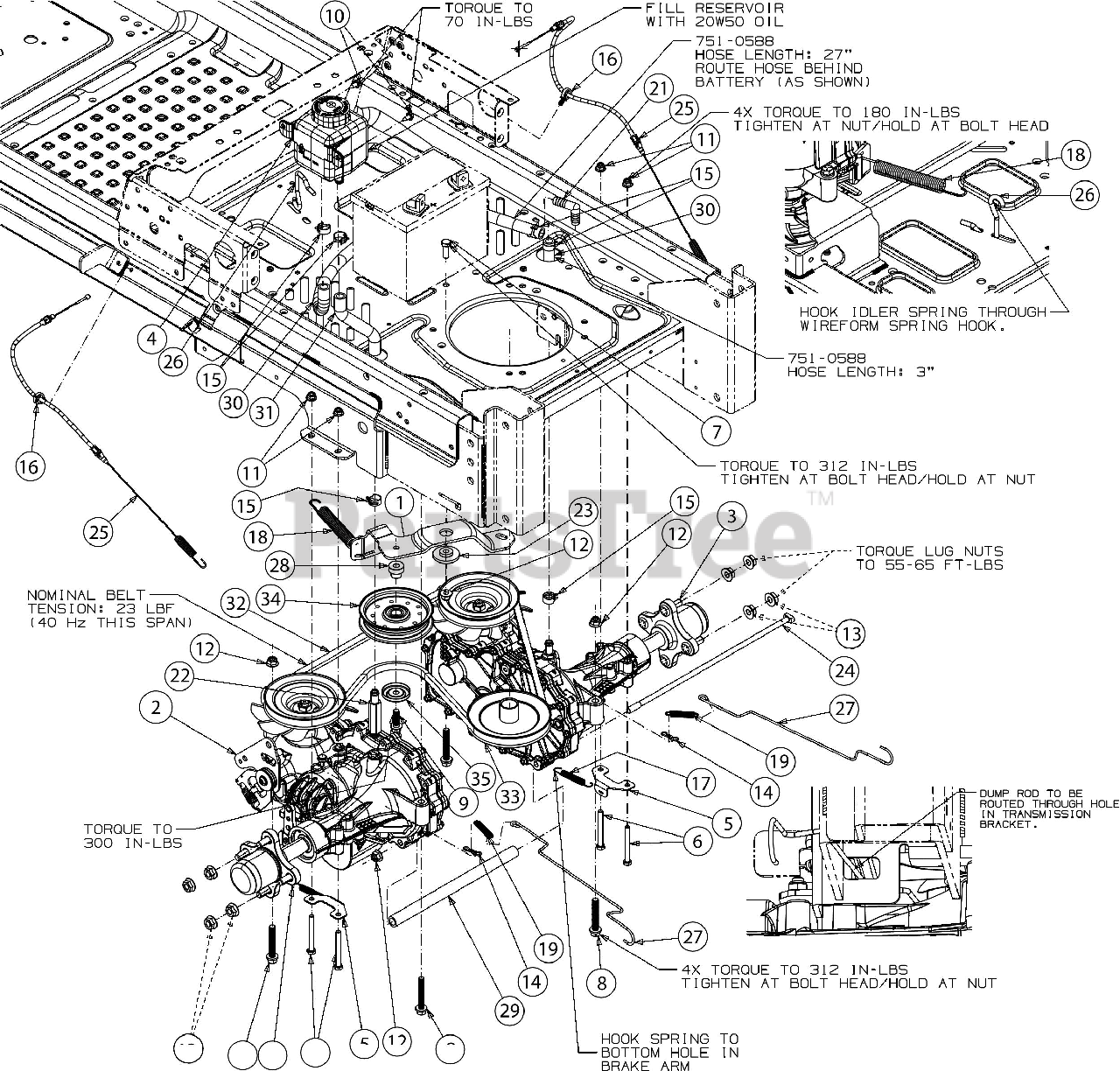

PRO Z 100 EFI 148-L (53RWEHRF050) - Cub Cadet 48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2017) Drive Parts Diagram

48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

Drive Parts Diagram

  • Title

1

Cub Cadet 903-05256

IDLER BRACKET ASSEMBLY
(Superseded to 603Z05256)

$42.99

$

In Stock, only 3 left!

0

2

Cub Cadet 918-07114

TRANSMISSION ASSEMBLY (LH)

$2229.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-07115

TRANSMISSION ASSEMBLY (RH)

$2229.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 631-04286

HYDRAULIC TANK

$41.99

$

In Stock, only 1 left!

0

5

Cub Cadet 703-09323

BRAKE RETURN BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09323-0637

BRACKET-BRAKE RETU - POWDER BLACK (0637)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet 703-09323-0691

BRACKET-BRAKE RETURN - BLACK JACK (0691)

$9.99

$

In Stock, only 1 left!

0

$8.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-06045

SCREW 3/8-16 x 2.25 GR5

$5.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, only 3 left!

0

10

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-05160

HEX FLANGE NUT 7/16-14

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

15

Cub Cadet 926-0324

FUEL HOSE CLAMP

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-3055

CABLE RETAINER CLIP

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-04488

EXTENSION SPRING .38 OD x 3.25 LG

$6.49

$

In Stock, only 3 left!

0

18

Cub Cadet 732-05390

EXTENTION SRING .75 DIA. x 6.85

$22.99

$

In Stock, only 4 left!

0

19

Cub Cadet 732-05475

EXTENSION SPRING .380 ODX 2.000 LG

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 737-04342

90 DEGREE NYLON FITTING

$8.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 737-05023

EXTENSION FITTING 9/16-18

$19.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

24

Cub Cadet 738-04251A

SUPPORT TUBE ROD

$14.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 946-05068

PARK BRAKE CABLE

$34.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 747-06074

IDLER SPRING HOOK

$23.99

$

In Stock, only 2 left!

0

27

Cub Cadet 747-06559A

BYPASS ROD

$37.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 750-06147A

TRANSMISSION SPACER .75OD x 11.31

$23.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-0588-30

FUEL LINE 1/2" ID

$43.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 751-15123B

TRANSMISSION EXPANSION HOSE

$19.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 954-04317A

TRANSMISSION DRIVE BELT A x 67

$50.99

$

In Stock, Qty 7

0

33

Cub Cadet 756-05001A

ELECTRIC PTO PULLEY
(Superseded to 756-05001B)

$50.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

35

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
