PRO Z 100 EFI 148-L (53RWEHRF050) - Cub Cadet 48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2016) Deck Parts Diagram

48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

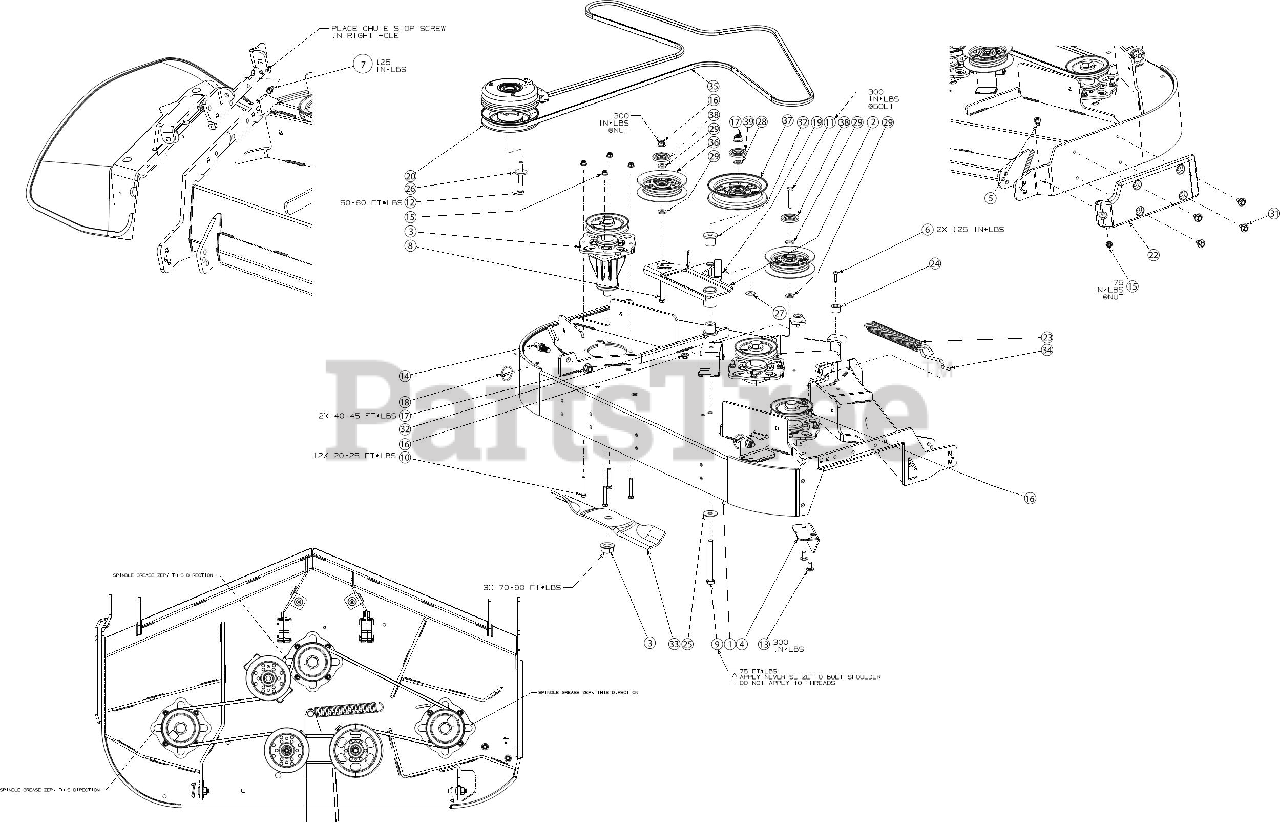

Deck Parts Diagram

  • Title

1

Cub Cadet 603-05268A-4021

48" FAB DECK ASSEMBLY
(Superseded to 603-05268B-4021)

$1610.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603E05284

IDLER ARM ASSEMBLY

$105.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 783-08027-0637

BELT GUARD 54"

Note: (Not Shown)

$22.99

$

In Stock, only 1 left!

0

3

Cub Cadet 918-07256

SPINDLE ASSEMBLY

$178.99

$

In Stock, only 3 left!

0

3

Cub Cadet 756-3089

PULLEY-4.00 OD

Note: (Not Shown)

$36.99

$

In Stock, only 3 left!

0

3

Cub Cadet 703-10572-0637

SPINDLE REINFORCEMENT PLATE

Note: (Not Shown)

$30.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 748-3065A

DECK SPINDLE SPACER

Note: (Not Shown)

$13.99

$

In Stock, Qty 14

0

3

Cub Cadet 921-3018A

SINGLE LIP SEAL

Note: (Not Shown)

$8.49

$

In Stock, Qty 20+

0

3

Cub Cadet 941-04091

BEARING CUP
(Superseded to 941-04299)

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

3

Cub Cadet 941-04089

BEARING CONE
(Superseded to 941-04298)

Note: (Not Shown)

$16.99

$

In Stock, Qty 19

0

3

Cub Cadet 937-3000

GREASE FITTING

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 750-06145

SPACER

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 750-06139

SPACER

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 750-05553

SPACER .812 ID x .218 LG

Note: (Not Shown)

$9.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3078

HEX FLANGE NUT 3/4

Note: (Not Shown)

$9.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-06120

SCREW 3/4-16 x 8.25 GR5

Note: (Not Shown)

$17.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-09435-4021

DECK CHUTE BAFFLE

$19.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet 710-05074

SCREW 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

9

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$11.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-3103

SCREW 5/16-18 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$10.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-06200B

DECK PIN

$6.49

$

In Stock, only 2 left!

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 753-04070

LYNCH PIN

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet 914-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 17

0

20

Cub Cadet 917-05192

ELECTRIC PTO CLUTCH

$623.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-11926

DECK SKID PLATE (LH)

$50.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

24

Cub Cadet 735-05147

BUMPER

$5.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 936-0208

WASHER .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

26

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

27

Cub Cadet 936-0344

FLAT WASHER
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-04606

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

31

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 741-05211

SHOULDER SPACER

$9.49

$

In Stock, only 2 left!

0

33

Cub Cadet 942-04417

17" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

34

Cub Cadet 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

35

Cub Cadet 954-05012A

DECK BELT A SEC x 137"

$80.99

$

In Stock, only 1 left!

0

36

Cub Cadet 756-05062

IDLER PULLEY 4.0

$68.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-05213

IDLER PULLEY 5.0"

$105.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

39

Cub Cadet 783-09087

PULLY CAP 1/2"

$6.49

$

Usually ships in 3-6 days

0
