PRO X 600 KW EFI 660 (53RL8CSU050) - Cub Cadet Pro X 60" Stand-On Mower, Kawasaki EFI, 25.5hp (2021) Belts, Blades & Spindles Parts Diagram

Pro X 60" Stand-On Mower, Kawasaki EFI, 25.5hp

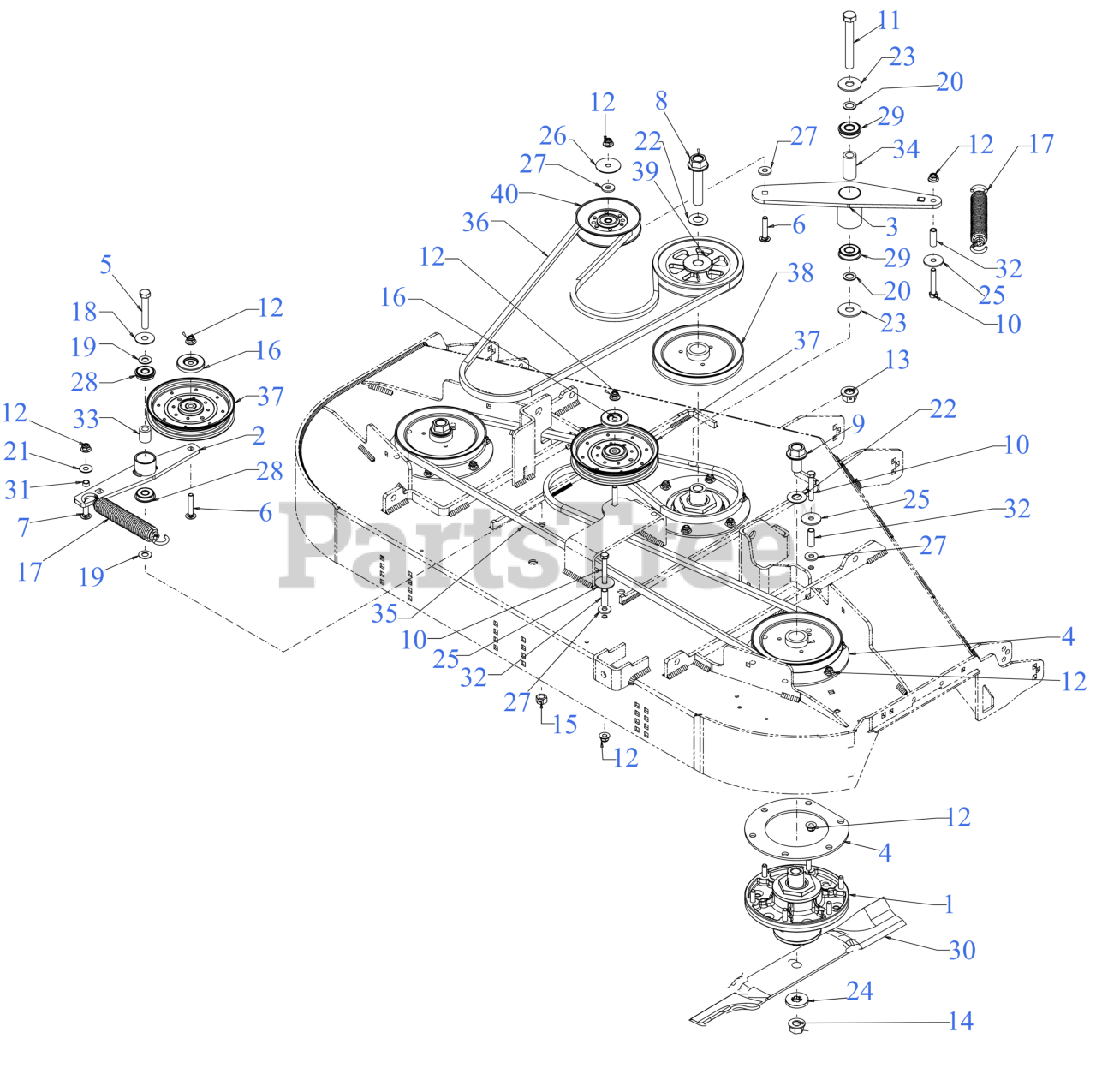

Belts, Blades & Spindles Parts Diagram

  • Title
1

Cub Cadet 918-08473

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$335.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680E00522A

IDLER BRACKET

$60.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680E00874

IDLER BRACKET

$94.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E11199

SPINDLE SUPPORT BRACKET TOP/BTM

$49.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$8.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-08054

CAP SCREW-HHFLG 3/4-10 X 3.50 GR8

$16.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-08055

CAP SCREW-HHFLG 3/4-10 X 1.50 GR8

$7.49

$

In Stock, Qty 7

0

10

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3151A

SCREW 5/8-18X4.5 GR5

$18.99

$

Usually ships in 3-6 days

0

$3.99

$

In Stock, Qty 20+

0

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

17

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0208

WASHER .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

19

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0290

FLAT WASHER

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-0445

FLAT WASHER

$4.49

$

In Stock, Qty 13

0

23

Cub Cadet 736-05210

FLAT WASHER 0.635xX1.755x0.110

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-05223A

FLAT WASHER - SPECIAL

$6.99

$

In Stock, Qty 15

0

25

Cub Cadet 736-3039

FLAT WASHER .406X1.500X.105

$5.49

$

In Stock, Qty 7

0

26

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

27

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 5

0

29

Cub Cadet 941-0563

BALL BEARING W/RET

$36.99

$

In Stock, Qty 11

0

30

Cub Cadet 942-04415

21" BLADE (HI LIFT)

$35.99

$

In Stock, Qty 20+

0

30

Cub Cadet 490-110-C163

Cub Cadet 60" BLADE SET

Note: Retail Packaged Part

$106.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 490-110-M163

Genuine Factory Parts 60" BLADE SET

Note: Retail Packaged Part

$107.99

$

In Stock, only 2 left!

0

30

Cub Cadet 742-04415-ES

21" BLADE (HI LIFT)

$52.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 742P04415-L

LOW-LIFT 21"BLADE (60"DECK)

$28.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02005019-X

BLADE-HI LIFT 21.0
(Superseded to 02005019P-X)

$32.99

$

In Stock, Qty 20+

0

30

Cub Cadet 01005381

BLADE-21"MULCH 60"
(Superseded to 01005381P-X)

$43.99

$

In Stock, only 3 left!

0

30

Cub Cadet 01005381P-X

21" XTREME BLADE

$43.99

$

In Stock, only 3 left!

0

31

$4.99

$

In Stock, only 1 left!

0

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 4 left!

0

34

Cub Cadet 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.99

$

In Stock, only 1 left!

0

35

$90.99

$

In Stock, only 2 left!

0

36

Cub Cadet 754P06075

BELT B SEC x 94.25

$103.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, Qty 12

0

38

Cub Cadet 756-04489

SPINDLE PULLEY 7"

$42.99

$

In Stock, only 2 left!

0

39

Cub Cadet 756-04496A

PULLEY-7.01 OD x .75 ID

$139.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-04522

IDLER PULLEY 5.06 OD

$39.99

$

In Stock, only 4 left!

0
