PRO X 600 KW EFI 654 (53RL8CSA050) - Cub Cadet Pro X 54" Stand-On Mower, Kawasaki EFI, 25.5hp (2022) Drive Parts Diagram

Pro X 54" Stand-On Mower, Kawasaki EFI, 25.5hp

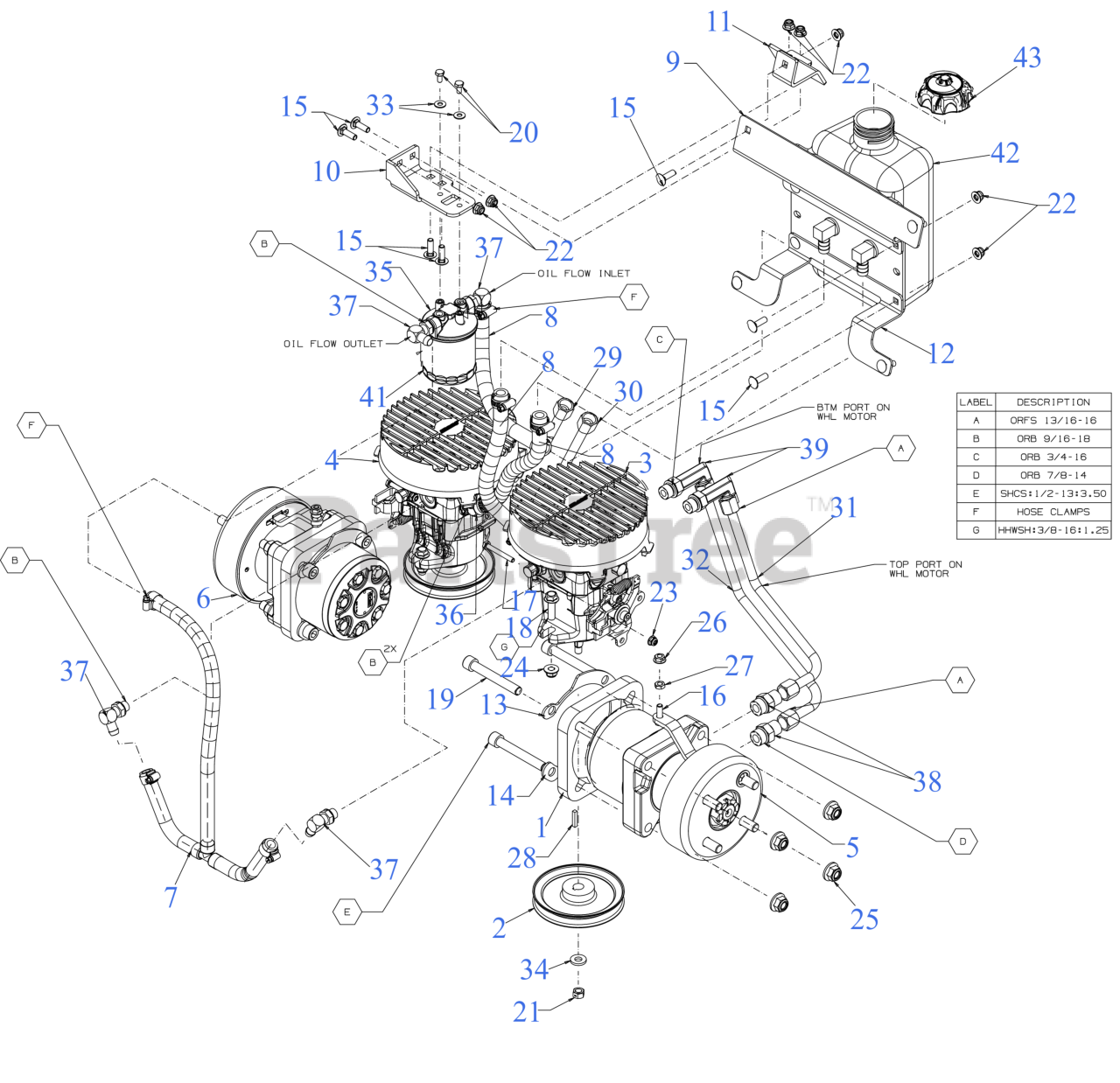

Drive Parts Diagram

  • Title

1

Cub Cadet 01009775

WHEEL SPACER MOTOR

$58.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 02001172

PULLEY-HYDRO PUMP

$90.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618P08253

HYDRO PUMP (RH)

Note: (See Separate Breakdown)

$1907.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618P08254

HYDRO PUMP (LH)

Note: (See Separate Breakdown)

$1907.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 618P08333

HYDRO MOTOR (RH)

Note: (See Separate Breakdown)

$2847.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 618P08334

HYDRO MOTOR (LH)

Note: (See Separate Breakdown)

$2847.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 627-00101A

HYDRO DRAIN HOSE

$

$

Not available

8

Cub Cadet 627-00121

HYDRO HOSE ASM 11"

$32.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703E13005

OIL RESERVOIR BRACKET

$22.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703E14981

FILTER MOUNT BRACKET

$19.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703E15061

BRAKE CABLE MOUNT BRACKET

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703E15101

OIL RESERVOIR BRACKET (LOWER)

$24.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703E24624

WHEEL MOTOR SHIM PLATE

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 703E24625

WHEEL MOTOR LOWER SHIM PLATE

$5.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

17

Cub Cadet 710-0501

SCREW 1/4-20 x 2 GR5

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-09534

HEX CAP SCREW 1/2"-13x3.5

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-3013

SCREW 1/4-20X.5 GR5

$4.99

$

In Stock, only 1 left!

0

21

Cub Cadet 712-0214

HEX NUT

$6.49

$

In Stock, only 3 left!

0

22

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

28

Cub Cadet 914-0105

SQUARE KEY 3/16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 727P05819

HYDRO TUBE (OUTSIDE/LH)

$66.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 727P05820

HYDRO TUBE (INSIDE/LH)

$67.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 727P05821

HYDRO TUBE (OUTSIDE/RH)

$66.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 727P05822

HYDRO TUBE (INSIDE/RH)

$67.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-04446

FLAT WASHER

$4.49

$

In Stock, only 2 left!

0

34

Cub Cadet 736-3004

FLAT WASHER

$4.99

$

In Stock, Qty 7

0

35

Cub Cadet 937-04011

OIL FILTER ADAPTER

$47.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 737-05149

45 DEGREE FITTING (6 ORB X-8 BEAD)

$29.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 737-05590

ELBOW FITTING

$53.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 737P05711

HYDRO FITTING 8 ORFS x 10 ORB

$15.99

$

In Stock, only 1 left!

0

39

Cub Cadet 737P05712

ELBOW FITTING

$43.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51563

HYDRAULIC FILTER
(Superseded to 751-17566)

$

$

Not available

42

Cub Cadet 751P17606

HYDRO OIL TANK (1 GAL)

$218.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 751P17626

HYDRO OIL TANK CAP

$

$

Not available
