PRO X 600 KW 660 (53AI8CSU050) - Cub Cadet Pro X 60" Stand-On Mower, Kawasaki, 25.5hp (2023) Engine Accessories Parts Diagram

Pro X 60" Stand-On Mower, Kawasaki, 25.5hp

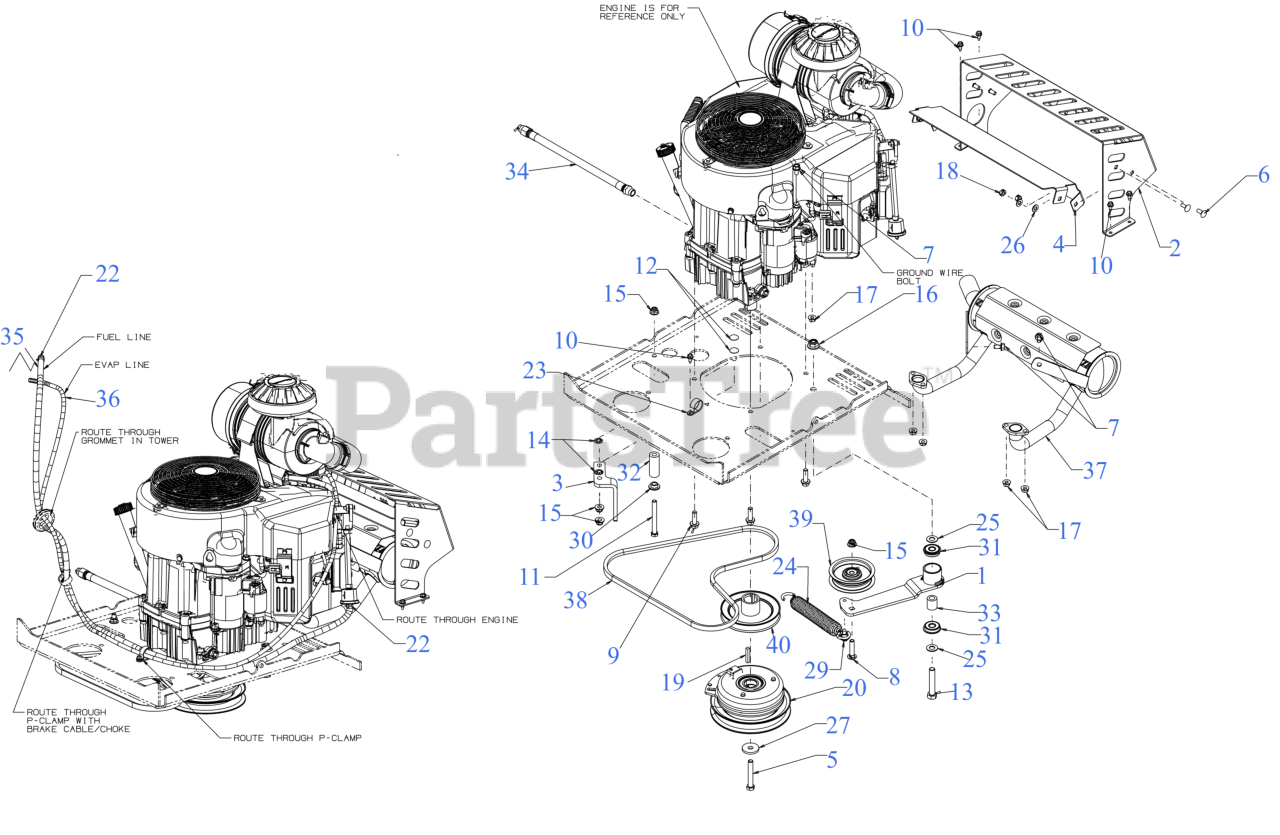

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 680E00714

IDLER BRACKET ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-01694-4021

MUFFLER SHIELD (CUB YELLOW 2)

$56.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E12821A

CLUTCH BRACKET

$62.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-21324

INNER MUFFLER SHIELD

Note: *CHOOSE COLOR WHEN ORDERING*

$31.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04377

SCREW 7/16-20:2.75 GR5

$11.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-05376

CARRIAGE BOLT 3/8-16 x 1.75 GR5

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 7

0

12

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3230

SCREW 1/2-13 x 2.75 GR5

$12.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04312

HEX FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 712-3009

HEX NUT

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0118

SQUARE KEY 1/4 x 1.50

$6.99

$

In Stock, only 4 left!

0

20

Cub Cadet 917-05184

ELECTRIC PTO CLUTCH

$499.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

22

Cub Cadet 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 18

0

23

Cub Cadet 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 12

0

25

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0275

FLAT WASHER

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

29

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

Note: 1

$3.99

$

In Stock, only 2 left!

0

30

Cub Cadet 738-04503

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 5

0

32

Cub Cadet 750-04198A

SPACER .41 x .875 x 2.19

$11.99

$

In Stock, Qty 6

0

33

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 4 left!

0

34

Cub Cadet 751-10291C

OIL DRAIN HOSE

$52.99

$

In Stock, only 2 left!

0

35

Cub Cadet 751-10349-54

FUEL HOSE LOW PERMEATION 54"

$53.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-12089-70

VENT HOSE 3/16 ID 70"LG

$20.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 751P17306

MUFFLER

$336.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 754P05914A

BELT SEC A x 51.18

$41.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 756-06243

FLAT IDLER PULLEY 3.5

$30.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-06263

DRIVE PUMP PULLEY

$92.99

$

In Stock, only 2 left!

0

Cub Cadet 490-000-C044

Cub Cadet 10W30 Engine Oil 32OZ

$10.99

$

In Stock, Qty 20+

0
