PRO X 600 KW 660 (53AI8CSU050) - Cub Cadet Pro X 60" Stand-On Mower, Kawasaki, 25.5hp (2023) Electrical Parts Diagram

Pro X 60" Stand-On Mower, Kawasaki, 25.5hp

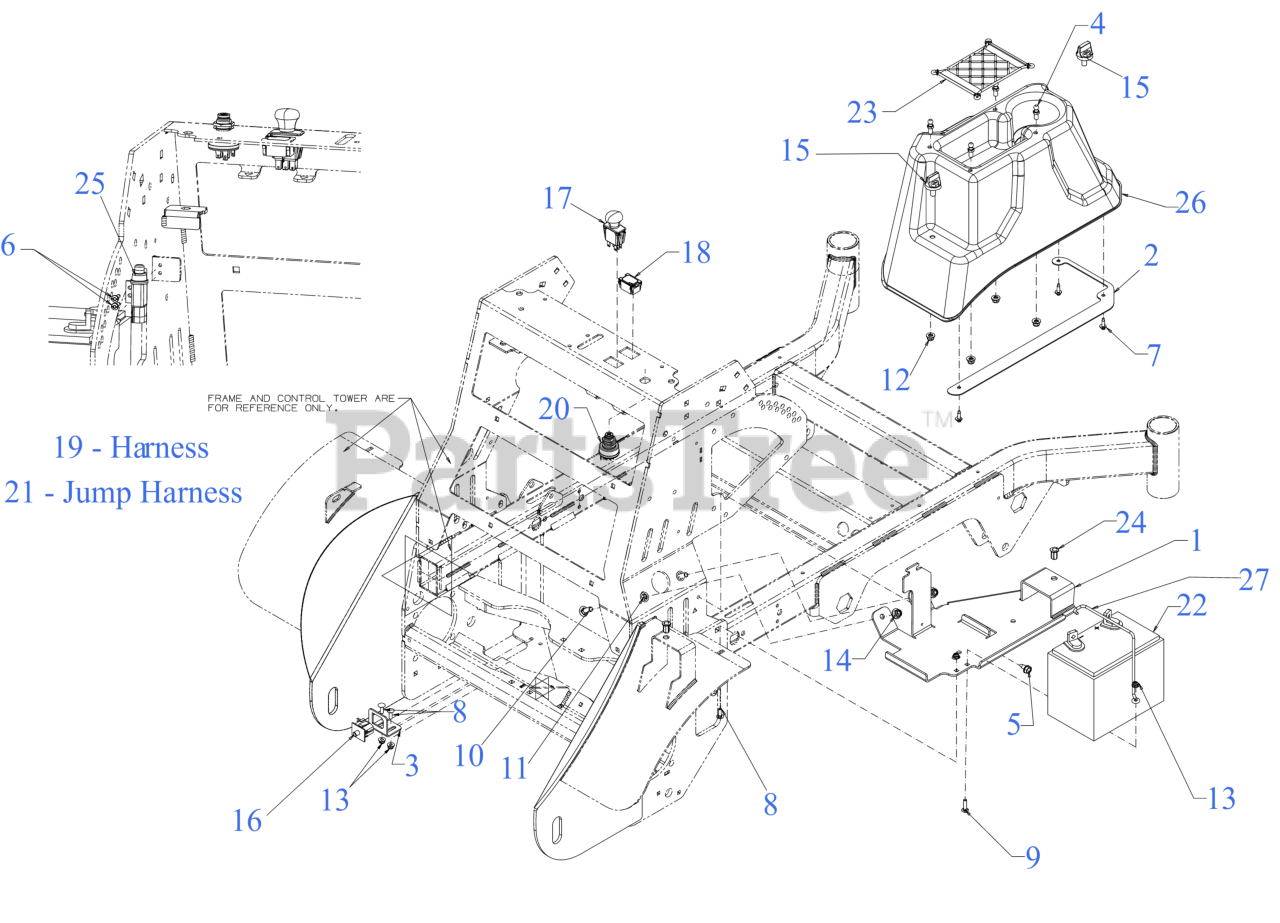

Electrical Parts Diagram

  • Title

1

Cub Cadet 680-01574A

BATTERY MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$89.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703E18565

BATTERY COVER SUPPORT PLATE

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E19984

SWITCH BRACKET MOUNT

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04166

BALL STUD 5/16-18

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04757

SCREW (10-24X.75:PH:TAP:T25:GR5)

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, only 4 left!

0

8

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

9

Cub Cadet 710-0932A

SCREW 1/4-20 x 1 GR5

$3.99

$

In Stock, only 4 left!

0

10

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 720-04061

KNOB 3/8-16 x .875

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 925-04165

NEUTRAL SWITCH

$32.99

$

In Stock, only 4 left!

0

17

Cub Cadet 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$70.99

$

In Stock, only 4 left!

0

18

Cub Cadet 725-05438

HOURMETER

$104.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 725P11305A

HARNESS

$259.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725P13545

KEY SWITCH

$85.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 925-06908

PRO-Z KEY SET

$37.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725P15145

JUMPER HARNESS (W/RELAY)

$60.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 725P17130

BATTERY (230 CCA AGM U1-280)

$117.99

$

In Stock, only 1 left!

0

23

Cub Cadet 727-05394

CARGO NET

$7.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

26

Cub Cadet 731P18176

BATTERY COVER

$76.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 747-07051

BATTERY SUPPORT ROD

$13.99

$

Usually ships in 3-6 days

0
