PRO X 600 KW 654 (53AI8CSA050) - Cub Cadet Pro X 54" Stand-On Mower, Kawasaki, 25.5hp (2020) Deck Parts Diagram

Pro X 54" Stand-On Mower, Kawasaki, 25.5hp

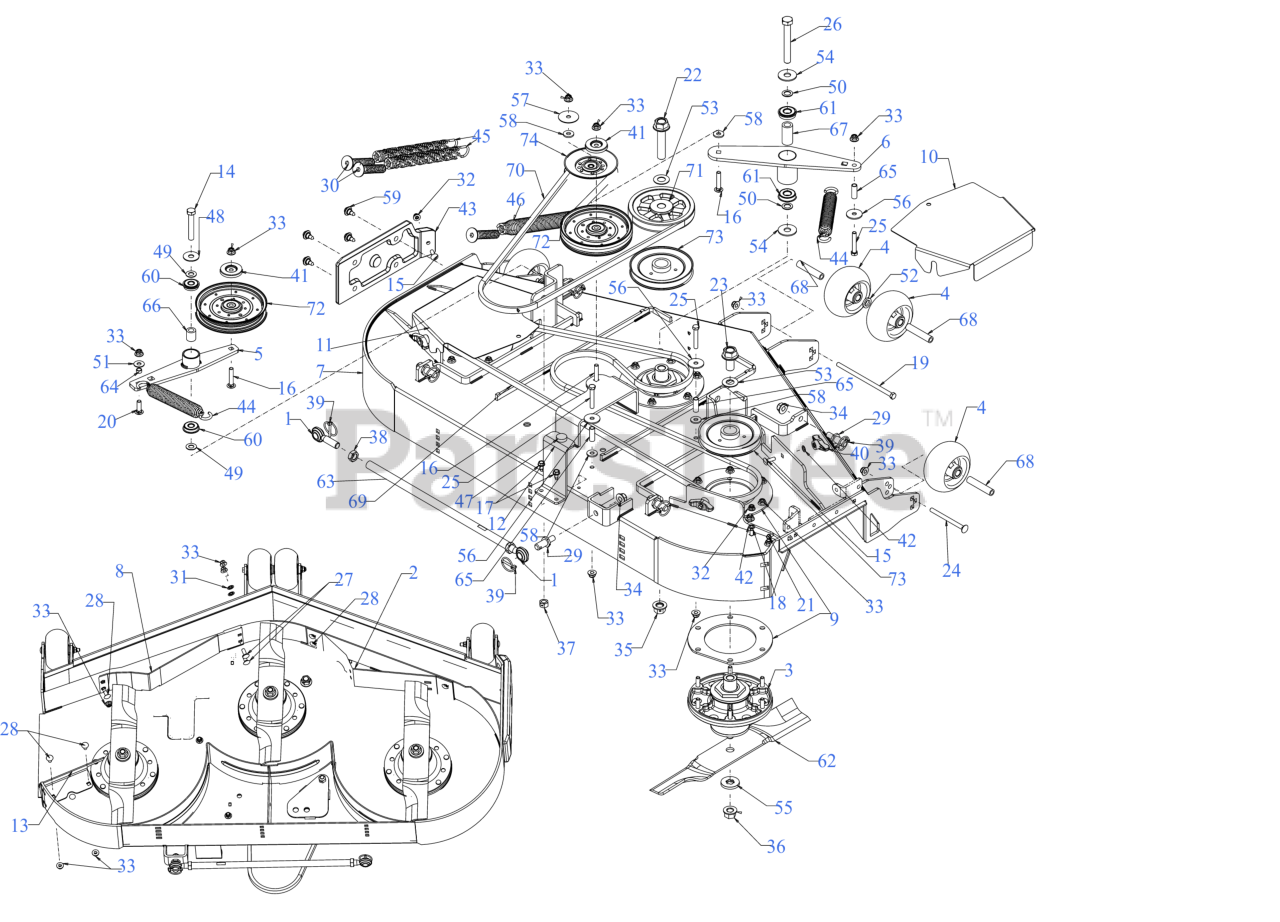

Deck Parts Diagram

  • Title

1

Cub Cadet 01007487

MALE ROD END

$89.99

$

In Stock, only 3 left!

0

2

Cub Cadet 02005693-0637

BAFFLE - 54" ADJ
(Superseded to 703-26732-0637)

$36.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-08473

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$335.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 634-05451

5" DIA DECK WHEEL COMPLETE

$24.99

$

In Stock, Qty 5

0

4

Cub Cadet 741-0487C

FLANGE BEARING

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet OEM-741-0487A

WHEEL BUSHING

Note: Retail Packaged Part

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00522A

IDLER BRACKET
(Superseded to 680E00522A)

$60.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00874

IDLER BRACKET
(Superseded to 680E00874)

$94.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 680-00955

54" FAB DECK SHELL
(Superseded to 680-00955C)

Note: *CHOOSE COLOR WHEN ORDERING*

$2689.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10552

DECK BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10552-4021

DECK BAFFLE - CUB YELLOW 2 (4021)

$71.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703E11199

SPINDLE SUPPORT BRACKET TOP/BTM

$49.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-14661

BELT COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-14662

BELT COVER (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-15943

DECK STOP BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-18044

CHUTE BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$8.99

$

In Stock, only 1 left!

0

17

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-04692

SCREW 3/8-16 x 7.25 GR5

$9.49

$

In Stock, only 1 left!

0

20

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-08054

CAP SCREW-HHFLG 3/4-10 X 3.50 GR8

$16.99

$

In Stock, only 2 left!

0

23

Cub Cadet 710-08055

CAP SCREW-HHFLG 3/4-10 X 1.50 GR8

$7.49

$

In Stock, Qty 7

0

24

Cub Cadet 710-1649

CARRIAGE BOLT 3/8-16 x 4.25 GR5

$17.99

$

In Stock, only 2 left!

0

25

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-3151A

SCREW 5/8-18X4.5 GR5

$18.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

30

Cub Cadet 711-06667

SPRING INSERT SCREW

$39.99

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04065

NUT

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 712-04327

NUT

$7.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 9

0

38

Cub Cadet 712-3056

HEX JAM NUT 5/8-18

$4.99

$

In Stock, Qty 13

0

39

Cub Cadet 753-04070

LYNCH PIN .1875

$9.99

$

In Stock, Qty 20+

0

40

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, only 3 left!

0

41

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

42

Cub Cadet 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 731-11926

DECK SKID PLATE (LH)

$50.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 20+

0

45

Cub Cadet 732-05476

EXTENTION SPRING 1.20 x 11.35

$34.99

$

In Stock, only 3 left!

0

46

Cub Cadet 732-05492

EXTENSION SPRING 1.44 OD x 11.36

$29.99

$

In Stock, only 2 left!

0

47

Cub Cadet 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 936-0208

FLAT WASHER
(Superseded to 736-0208)

$

$

Not available

49

Cub Cadet 936-0272

FLAT WASHER .510X.995
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0290

FLAT WASHER

$6.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

52

Cub Cadet 736-04296

FLAT WASHER .632X1.00X.16

$3.49

$

In Stock, Qty 11

0

53

Cub Cadet 936-0445

FLAT WASHER
(Superseded to 736-0445)

$

$

Not available

54

Cub Cadet 736-05210

FLAT WASHER 0.635xX1.755x0.110

$10.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 736-05223A

FLAT WASHER - SPECIAL

$6.99

$

In Stock, Qty 15

0

56

Cub Cadet 936-3039

FLAT WASHER .406X1.5X11
(Superseded to 736-3039)

$

$

Not available

57

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

58

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 5

0

61

Cub Cadet 941-0563

BALL BEARING W/RET

$36.99

$

In Stock, Qty 11

0

62

Cub Cadet 942-04416

19" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

62

Cub Cadet 490-110-C186

Cub Cadet 54" HI LIFT BLADE SET

Note: Retail Packaged Part

$99.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 942-04416-XG

19" BLADE (HI LIFT)

$

$

Not available

62

Cub Cadet 742-04416-ES

19" BLADE (HI LIFT)

$52.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 742P04416-L

LOW-LIFT 19"BLADE (54"DECK)

$28.99

$

In Stock, only 3 left!

0

62

Cub Cadet 02005018-X

BLADE- HI LIFT 19.0 XTREME
(Superseded to 02005018P-X)

$24.99

$

In Stock, Qty 6

0

62

Cub Cadet 01005380

BLADE-19"MULCH 54"
(Superseded to 01005380P-X)

$42.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 01005380P-X

19" XTREME BLADE

$42.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 747-10270

TUBE .565 X .750 X 18.75"LG
(Superseded to 747E10270)

$

$

Not available

64

Cub Cadet 750-0526

SPACER

$4.99

$

In Stock, only 1 left!

0

65

Cub Cadet 750-05673

SPACER

$8.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 4 left!

0

67

Cub Cadet 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.99

$

In Stock, only 1 left!

0

68

Cub Cadet 750-3193

WHEEL SPACER .38ID x 3.04LG

$18.99

$

In Stock, Qty 20+

0

69

Cub Cadet 954-04327

BELT-B SECTION 119.45"

$119.99

$

In Stock, only 1 left!

0

70

Cub Cadet 754-06074

BELT SEC B x 90.30
(Superseded to 754P06074)

$99.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 756-04485

PULLEY-6.96 OD x .750 ID

$171.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, Qty 12

0

73

Cub Cadet 756-04500

SPINDLE PULLEY 6"

$34.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 756-04522

IDLER PULLEY 5.06 OD

$39.99

$

In Stock, only 4 left!

0
