PRO X 600 KW 648 (53AI8CSF050) - Cub Cadet Pro X 48" Stand-On Mower, Kawasaki, 18.5hp (2023) Frame Parts Diagram

Pro X 48" Stand-On Mower, Kawasaki, 18.5hp

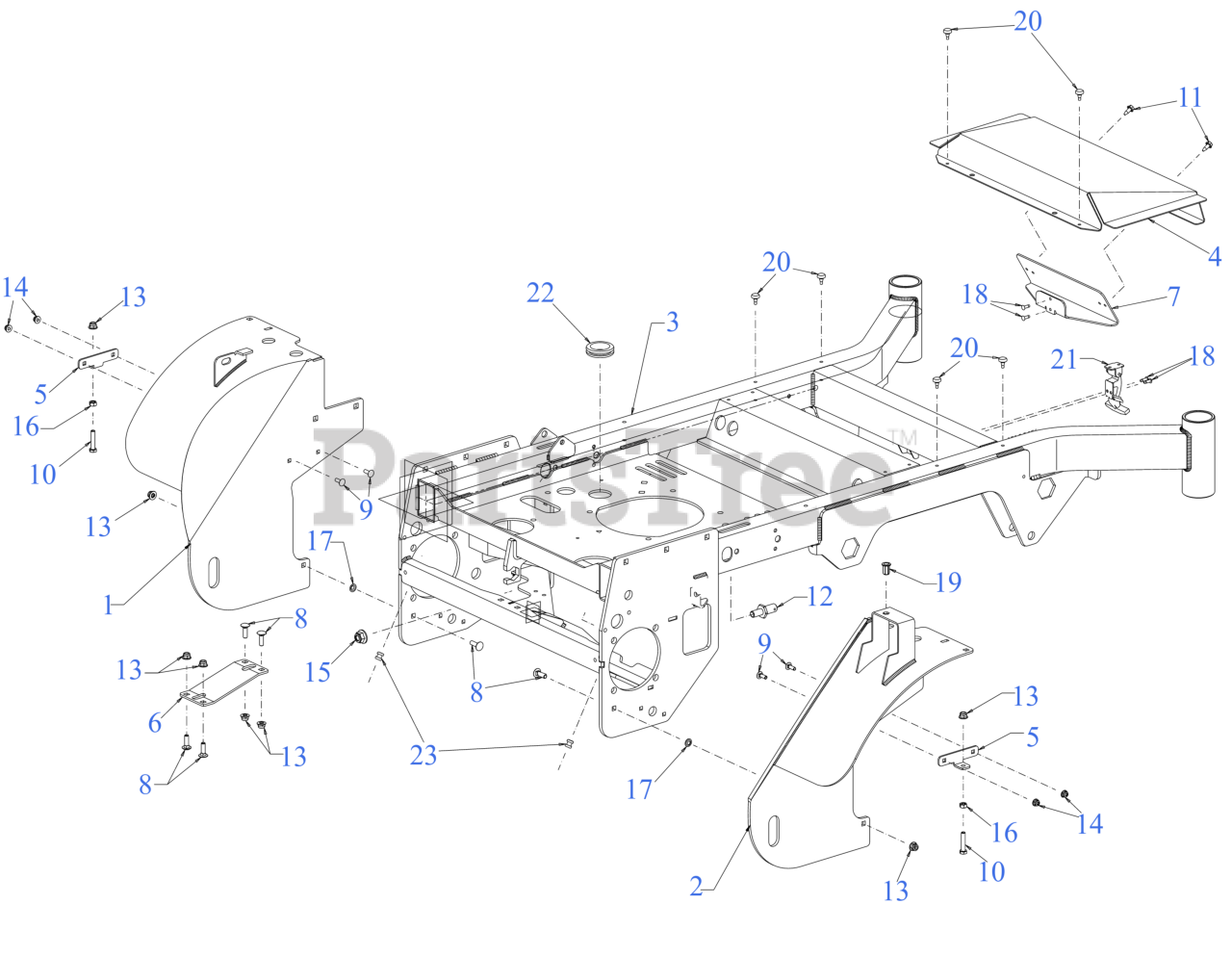

Frame Parts Diagram

  • Title
1

Cub Cadet 680-01154A

FENDER (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$232.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-01214A

FENDER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$232.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-01614A

FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

4

Cub Cadet 703-15642

FRONT COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$59.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E20184

BRAKE SPRING BRACKET (RH)

$9.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E21504

SUPPORT BRACKET

$14.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703E15641

BACK PLATE

Note: 1/7/22 & Before

$24.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703E27556

BACK PLATE

Note: 1/7/22 & After

$59.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 10

0

9

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

10

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

$11.99

$

In Stock, Qty 14

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3010

HEX NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet 928-0123

POP RIVET

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 735-0199A

RUBBER BUMPER

$7.99

$

In Stock, only 4 left!

0

21

Cub Cadet 935-04038

HOOD LATCH ASSEMBLY

$15.99

$

In Stock, Qty 14

0

22

Cub Cadet 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$4.99

$

Usually ships in 3-6 days

0

23

$2.99

$

Usually ships in 3-6 days

0
