PRO X 600 KW 648 (53AI8CSF050) - Cub Cadet Pro X 48" Stand-On Mower, Kawasaki, 18.5hp (2022) Deck Parts Diagram

Pro X 48" Stand-On Mower, Kawasaki, 18.5hp

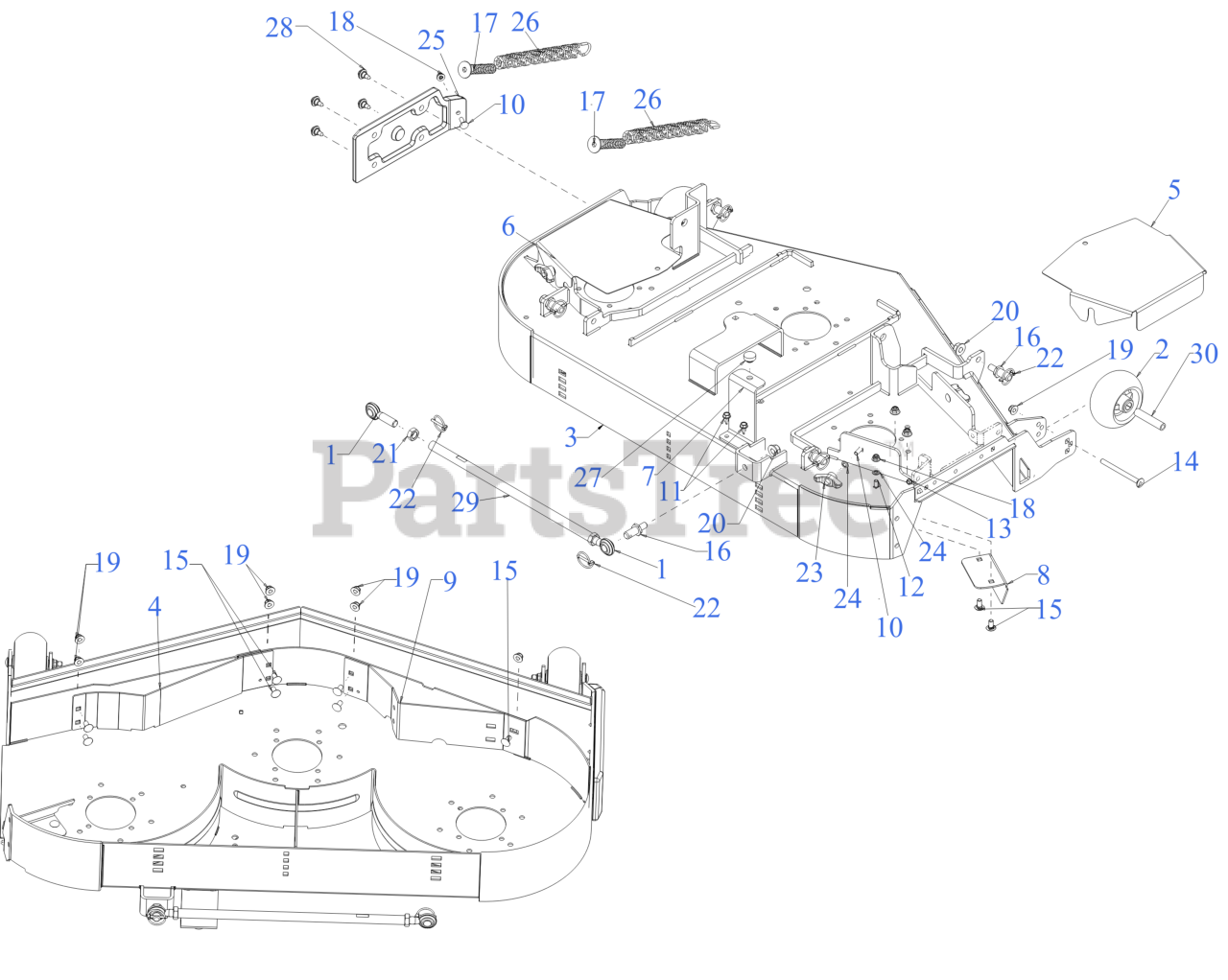

Deck Parts Diagram

  • Title

1

Cub Cadet 01007487

MALE ROD END

$89.99

$

In Stock, only 3 left!

0

2

Cub Cadet 634-05451

5" DIA DECK WHEEL COMPLETE

$24.99

$

In Stock, Qty 5

0

2

Cub Cadet 741-0487C

FLANGE BEARING

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00735

48" FAB DECK
(Superseded to 680-00735A)

Note: *CHOOSE COLOR WHEN ORDERING*

$1403.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-11674A

48" FAB DECK BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$37.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-14661

BELT COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-14662

BELT COVER (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-15943

DECK STOP BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-18025

DECK CHUTE BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$8.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-26731

48" ADJUSTMENT BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$32.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 10

0

11

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1649

CARRIAGE BOLT 3/8-16 x 4.25 GR5

Note: 2

$17.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

17

Cub Cadet 711-06667

SPRING INSERT SCREW

$39.99

$

In Stock, only 2 left!

0

18

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, only 4 left!

0

19

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3056

HEX JAM NUT 5/8-18

$4.99

$

In Stock, Qty 13

0

22

Cub Cadet 753-04070

LYNCH PIN .1875

$9.99

$

In Stock, Qty 20+

0

23

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 12

0

24

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

25

Cub Cadet 731-11926

DECK SKID PLATE (LH)

$50.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-05476

EXTENTION SPRING 1.20 x 11.35

$34.99

$

In Stock, only 3 left!

0

27

Cub Cadet 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 747E10270

TUBE .565 X .750 X 18.75"LG
(Superseded to 747-10270)

$

$

Not available

30

Cub Cadet 750-3193

WHEEL SPACER .38ID x 3.04LG

$18.99

$

In Stock, Qty 20+

0
