PRO X 600 KW 648 (53AI8CSF050) - Cub Cadet Pro X 48" Stand-On Mower, Kawasaki, 18.5hp (2020) Electrical Parts Diagram

Pro X 48" Stand-On Mower, Kawasaki, 18.5hp

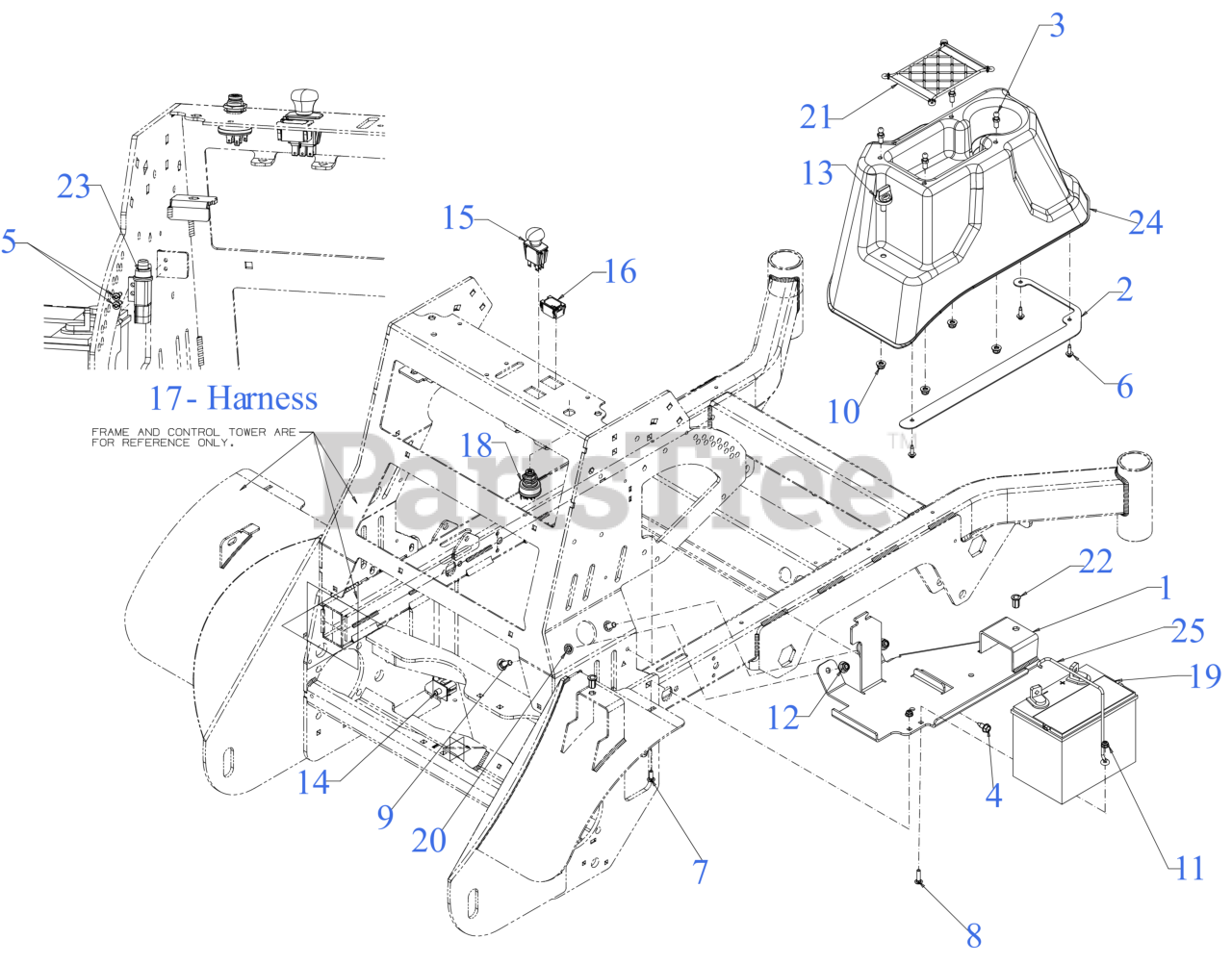

Electrical Parts Diagram

  • Title
1

Cub Cadet 680-01574

BATTERY MOUNT BRACKET
(Superseded to 680-01574-4021)

Note: *CHOOSE COLOR WHEN ORDERING*

$89.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703E18565

BATTERY COVER SUPPORT PLATE

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04166

BALL STUD 5/16-18

$10.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04757

SCREW (10-24X.75:PH:TAP:T25:GR5)

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

8

Cub Cadet 710-0932A

SCREW 1/4-20 x 1 GR5

$3.99

$

In Stock, only 4 left!

0

9

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 720-04061

KNOB 3/8-16 x .875

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 925-04165

NEUTRAL SWITCH

$32.99

$

In Stock, only 4 left!

0

15

Cub Cadet 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$70.99

$

In Stock, only 4 left!

0

16

$104.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725P13545

KEY SWITCH

$85.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 925-06908

PRO-Z KEY SET

$37.99

$

Usually ships in 3-6 days

0

19

Purchase Battery Locally

Note: Service Battery is No Longer Available

$

$

Not available

19

$

$

Not available

21

$7.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

24

Cub Cadet 731P18176

BATTERY COVER

$76.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 747-07051

BATTERY SUPPORT ROD

$13.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 726-04043

NUT:PUSH:3/8 ID x 3/4 OD
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0
