PRO X 600 KW 648 (53AI8CSF050) - Cub Cadet Pro X 48" Stand-On Mower, Kawasaki, 18.5hp (2020) Controls Parts Diagram

Pro X 48" Stand-On Mower, Kawasaki, 18.5hp

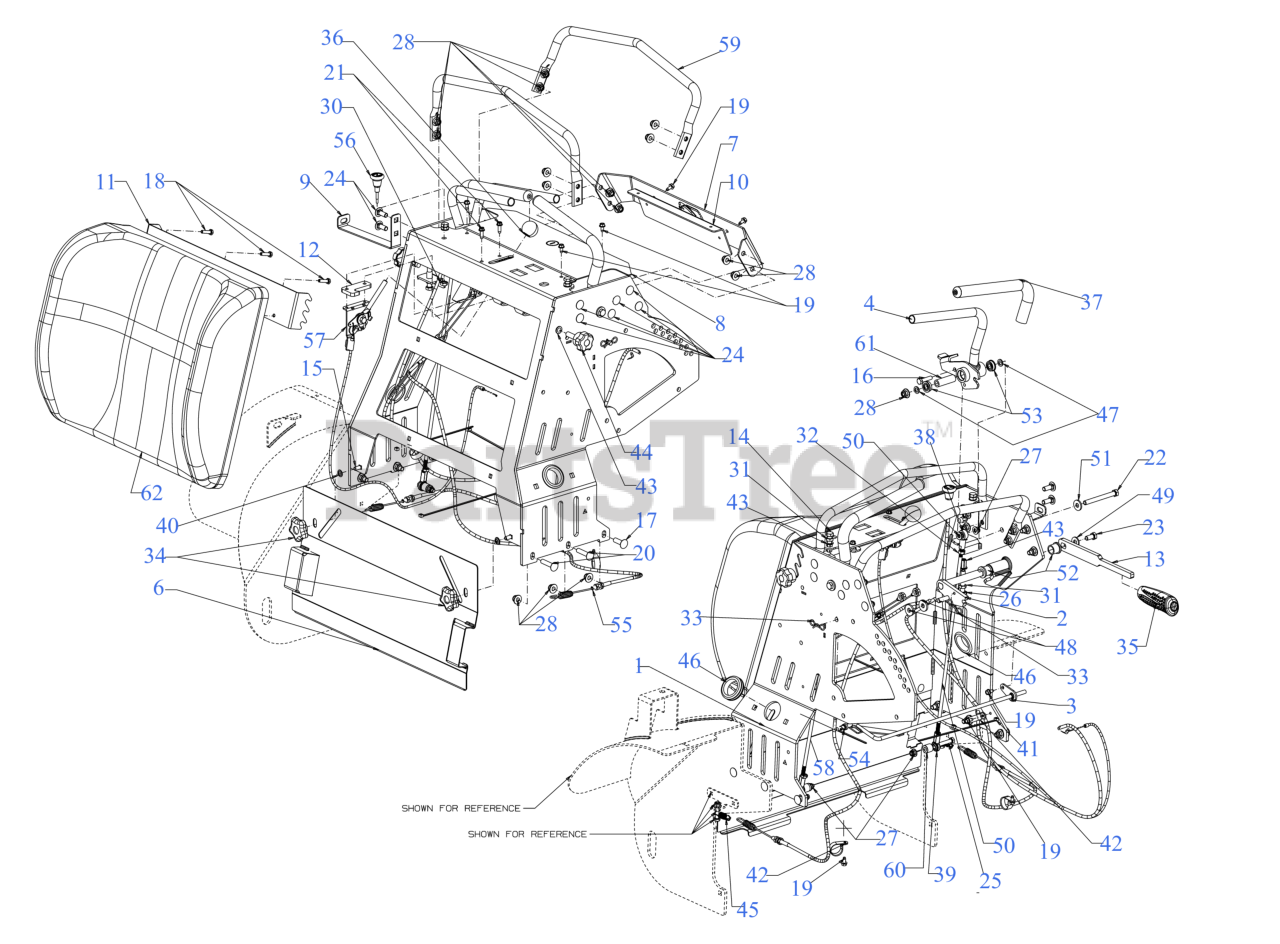

Controls Parts Diagram

  • Title

1

Cub Cadet 680-00674

CONTROL BASE

Note: *CHOOSE COLOR WHEN ORDERING*

$520.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680E00914

BRAKE PIVOT

$74.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680E01194

CONTROL LOCK ROD

$57.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680P01274

CONTROL HANDLE (LH)

$

$

Not available

4

Cub Cadet 680P01275

CONTROL HANDLE (RH)

$124.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-01634

PANEL COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$149.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-12727

BASE CONTROL

Note: *CHOOSE COLOR WHEN ORDERING*

$35.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-12728

DASH PANEL

Note: *CHOOSE COLOR WHEN ORDERING*

$22.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-12807A

TANK SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-13401

DASH SUPPORT
(Superseded to 703E13401)

$16.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-13441

PAD MOUNT

Note: *CHOOSE COLOR WHEN ORDERING*

$34.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-14941

THROTTLE STOP SPACER
(Superseded to 703E14941)

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-20676

BRAKE HANDLE
(Superseded to 703E20676)

$18.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0344

HEX SCREW 3/8-16 x 1.50 GR5

$5.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 14

0

19

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-06234

BOLT 3/8-16 x 1.69 GR5

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 7

0

23

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3180

SCREW 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 15

0

26

Cub Cadet 710-3184A

SCREW 3/8-16 x 2 GR5

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-05941

HEX JAM NUT 5/16-24 GR5

$2.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 912-3008

HEX JAM NUT 3/18-16

$4.99

$

In Stock, Qty 19

0

32

Cub Cadet 912-3057

NUT-5/16X 24

$6.99

$

In Stock, only 3 left!

0

33

Cub Cadet 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 720-04139B

GRIP

$18.99

$

In Stock, only 1 left!

0

36

Cub Cadet 720-05110

BALL KNOB

$22.99

$

In Stock, only 3 left!

0

37

Cub Cadet 720-05321

GRIP .75 ID X 1.00 OD
(Superseded to 720P05321)

$11.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 723-04039

ROD END 5/16 ID

$57.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 723-05004

END ROD- 5/16 (LH)

$51.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 726-0317

TIE CABLE 8.5 LG

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 731-05131A

SEAT ADJUST KNOB 3/8-16 x 1.50

$14.99

$

In Stock, only 1 left!

0

45

Cub Cadet 732-05147

EXTENSION SPRING .500 OD x 1.71

$5.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$4.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 936-0140

FLAT WASHER
(Superseded to 736-0140)

$

$

Not available

48

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 4 left!

0

49

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

51

Cub Cadet 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 941-0353

FLANGE BEARING
(Superseded to 741-0353)

$11.99

$

In Stock, Qty 20+

0

53

Cub Cadet 741-04568

FLANGE BEARING

$38.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 741-1140

BUSHING .3135ID

$6.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 946-05103A

BRAKE CABLE

$42.99

$

In Stock, only 1 left!

0

56

Cub Cadet 946-05341A

CHOKE CABLE
(Superseded to 946-05341B)

$69.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 946-05434

THROTTLE CABLE

$90.99

$

In Stock, only 1 left!

0

58

Cub Cadet 747-07590

CONTROL ROD

$19.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 749-07354

TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

$60.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 750-06201

SPACER .34 x .75 x .63 LG

$4.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 750-07430

SPACER .379 x .63 x 1.957

$4.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 757P05127

LEG PAD

$564.99

$

Usually ships in 3-6 days

0
