PRO X 600 KW 636 (53RZ3CSB050) - Cub Cadet Pro X 36" Stand-On Mower, Kawasaki, 18.5hp (2023) Deck Lift Parts Diagram

Pro X 36" Stand-On Mower, Kawasaki, 18.5hp

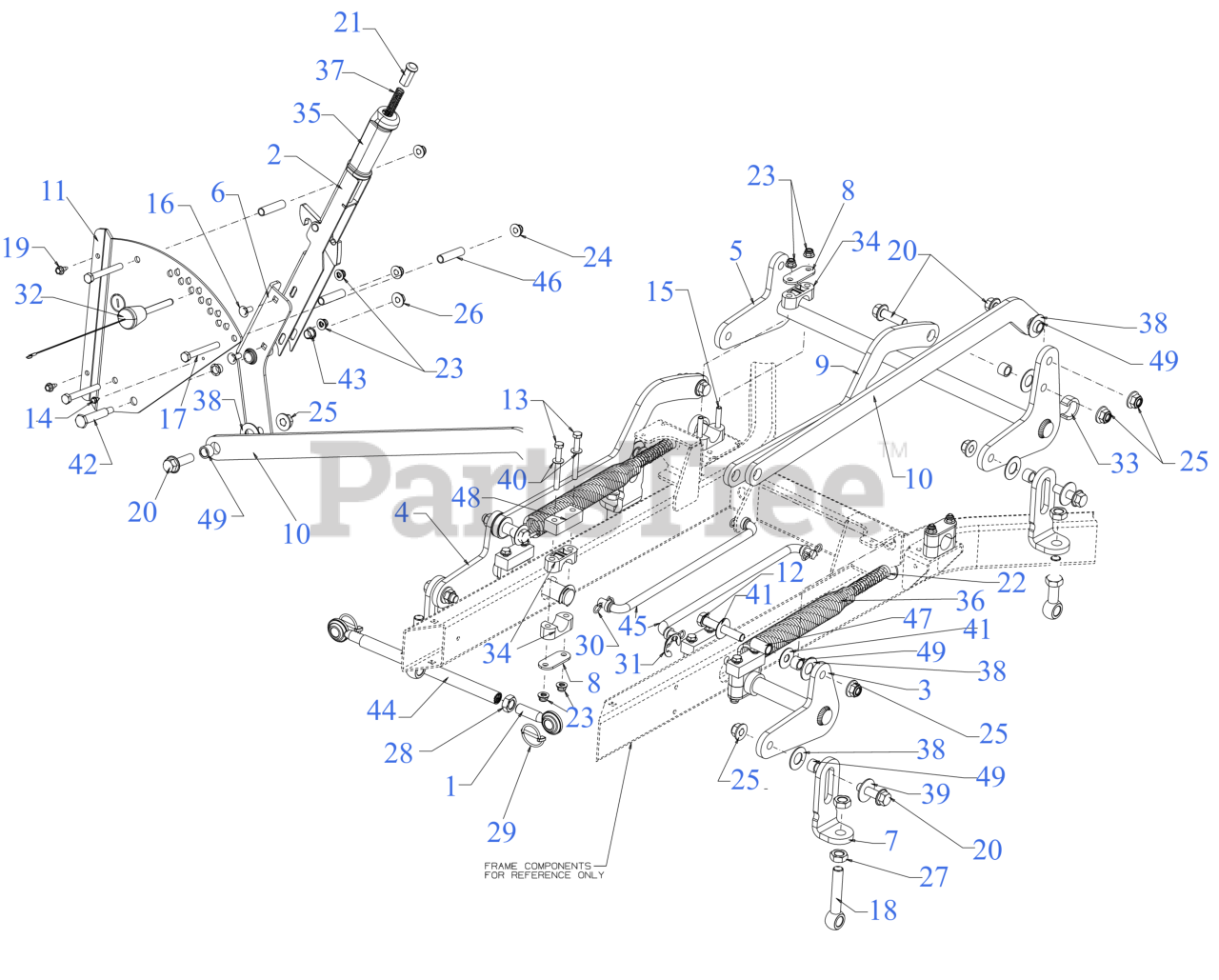

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 01007487

MALE ROD END

$89.99

$

In Stock, only 3 left!

0

2

Cub Cadet 903-05143A

LATCH HANDLE ASSEMBLY

$89.99

$

In Stock, only 3 left!

0

3

Cub Cadet 680-02354

DECK LIFT (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$120.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-02355

DECK LIFT (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$120.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680E02356

LIFT ARM SHAFT

$203.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-02394

DECK LIFT HANDLE

Note: *CHOOSE COLOR WHEN ORDERING*

$67.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-22384

ADJUSTMENT ARM

Note: *CHOOSE COLOR WHEN ORDERING*

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-25146

DECK LIFT REINFORCE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-25150

DECK LIFT LINK

Note: *CHOOSE COLOR WHEN ORDERING*

$55.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-25228

DECK LIFT LINK

Note: *CHOOSE COLOR WHEN ORDERING*

$81.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-25244

DECK LIFT INDEX PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$57.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-0189

HEX SCREW 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

14

Cub Cadet 910-0224

HEX SCREW AB-TAP #10 x .50

$3.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-0572

BOLT 5/16-18 x 2.50 GR1

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0521

SCREW 3/8-16 x 3 GR8

$5.49

$

In Stock, Qty 10

0

18

Cub Cadet 710-06428

EYE BOLT 5/8-11 x 3.63

$23.99

$

In Stock, only 1 left!

0

19

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3067A

FLANGE BOLT 1/2-13:1.75:GR5

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-0642A

LIFT HANDLE BUTTON

$7.99

$

In Stock, Qty 12

0

22

Cub Cadet 711-06667

SPRING INSERT SCREW

$39.99

$

In Stock, only 2 left!

0

23

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, only 1 left!

0

26

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3015

HEX NUT

$4.99

$

In Stock, only 2 left!

0

28

Cub Cadet 712-3056

HEX JAM NUT 5/8-18

$4.99

$

In Stock, only 3 left!

0

29

Cub Cadet 753-04070

LYNCH PIN .1875

$9.99

$

In Stock, Qty 20+

0

30

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 3 left!

0

31

Cub Cadet 716-04048

E-RING 1.50 OD

$

$

Not available

32

Cub Cadet 720P05841

MAGNETIC DECK LOCK KNOB

$48.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-24271

SNAP SPACER

$5.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 731-24371

DECK LIFT SHAFT BUSHING

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 731-3158

LIFT HANDLE GRIP

$17.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 732-05492

EXTENSION SPRING 1.44 OD x 11.36

$29.99

$

In Stock, only 2 left!

0

37

Cub Cadet 732-3097

COMPRESSION SPRING

$14.99

$

In Stock, only 4 left!

0

38

Cub Cadet 736-0188

FLAT WASHER .760ID X1.49OD x .06

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0208

WASHER .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

40

Cub Cadet 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 736-04237

FLAT WASHER

$3.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-1011A

SHOULDER SCREW .50 x 2.23 3/8-16

$8.49

$

In Stock, Qty 11

0

43

Cub Cadet 741-0491

NYLINER BEARING

$5.49

$

In Stock, only 3 left!

0

44

Cub Cadet 747-11010

TUBE .565x.75x10.375"
(Superseded to 747E11010)

$41.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 747-11011

DECK CONTROL ROD

$74.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 750-07750

SPACER .38 ID x .50 OD x 2.06 LG

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 750-10210

SPACER

$5.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-10895

RECTANGLE SPACER

$15.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-1206

SPACER

$16.99

$

In Stock, only 1 left!

0
