PRO X 600 KW 636 (53RZ3CSB050) - Cub Cadet Pro X 36" Stand-On Mower, Kawasaki, 18.5hp (2022) Deck Parts Diagram

Pro X 36" Stand-On Mower, Kawasaki, 18.5hp

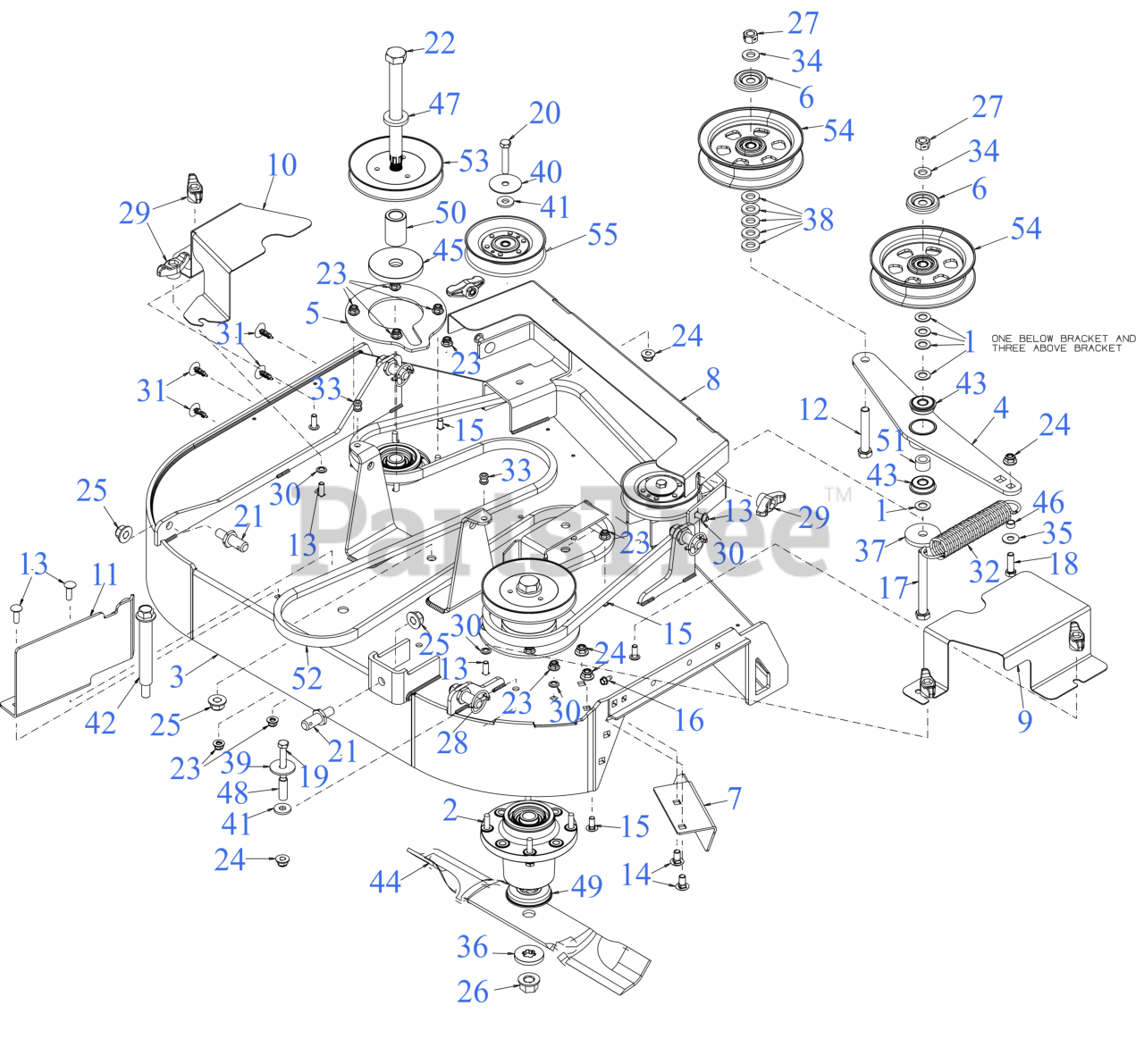

Deck Parts Diagram

  • Title

1

Cub Cadet 2964

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-07406

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$186.99

$

In Stock, only 2 left!

0

3

Cub Cadet 680-02379

36" DECK

Note: *CHOOSE COLOR WHEN ORDERING*

$2114.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680E02415

IDLER ARM ASSEMBLY

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E10057A

SPINDLE SUPPORT PLATE TOP & BOTTOM

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703E10057A-4021

SPINDLE SUPPORT - CUB YELLOW 2 (4021)

$27.99

$

In Stock, only 1 left!

0

$25.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-11553

PULLEY CAP

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-11575

DECK CHUTE BAFFLE (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-11575-4021

YELLOW DECK CHUTE BAF - CUB YELLOW 2 (4021)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-25305

DECK BELT COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$36.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-25306

DECK BELT COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$28.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-25307

DECK BELT COVER (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$35.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-26952

BELT KEEPER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$28.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$11.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 19

0

20

Cub Cadet 710-3184A

SCREW 3/8-16 x 2 GR5

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

22

Cub Cadet 711-10482

SPINDLE SHAFT 8.12"

$51.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 753-04070

LYNCH PIN .1875

$9.99

$

In Stock, Qty 20+

0

29

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

30

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

31

Cub Cadet 726-04029

RATCHET CLIP

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-08256

EXTENTION SPRING

$36.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 735-06978

GROMMENT

$2.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-0326

FLAT WASHER .510 x 1.000 x .125

$4.49

$

In Stock, only 2 left!

0

35

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-05223A

FLAT WASHER - SPECIAL

$6.99

$

In Stock, Qty 15

0

37

Cub Cadet 736-05642

FLAT WASHER .53"x2.125"x.25"

$7.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 736-3019

FLAT WASHER .531X1.060X.134

$5.99

$

In Stock, Qty 11

0

39

Cub Cadet 736-3039

FLAT WASHER .406X1.500X.105

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

Note: 2

$6.49

$

In Stock, Qty 6

0

41

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 738-04182B

SHOULDER BOLT .750X4.75X1/2-13

Note: 1

$26.99

$

In Stock, Qty 17

0

43

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 5

0

44

Cub Cadet 942-05458

18.50" BLADE (HI LIFT)
(Superseded to 742-05458-0637)

$

$

Not available

45

Cub Cadet 748-05174

DECK SPINDLE SPACER
(Superseded to 748-05174A)

$11.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 750-0526

SPACER

$4.99

$

In Stock, only 1 left!

0

47

Cub Cadet 750-05553

SPACER .812 ID x .218 LG

$9.99

$

In Stock, Qty 20+

0

48

Cub Cadet 750-05673

SPACER

$8.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-06749

SPACER 0.790 x 2.75 x 0.486
(Superseded to 750-06749A)

$13.99

$

In Stock, Qty 7

0

50

Cub Cadet 750-10270

SPACER .80X1.25X1.878

$10.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 750-10897

SPACER .51X.88X.575

$5.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 754P06774

DECK BELT B-SEC x131.1"

$111.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 756-05267

SPINDLE PULLEY (5.625")

$32.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 756-05331

5" FLAT IDLER PULLEY

$53.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 756-06849

IDLER PULLEY 5.06"

$55.99

$

Usually ships in 3-6 days

0
