PRO X 600 KW 636 (53RZ3CSB050) - Cub Cadet Pro X 36" Stand-On Mower, Kawasaki, 18.5hp (2021) Platform Parts Diagram

Pro X 36" Stand-On Mower, Kawasaki, 18.5hp

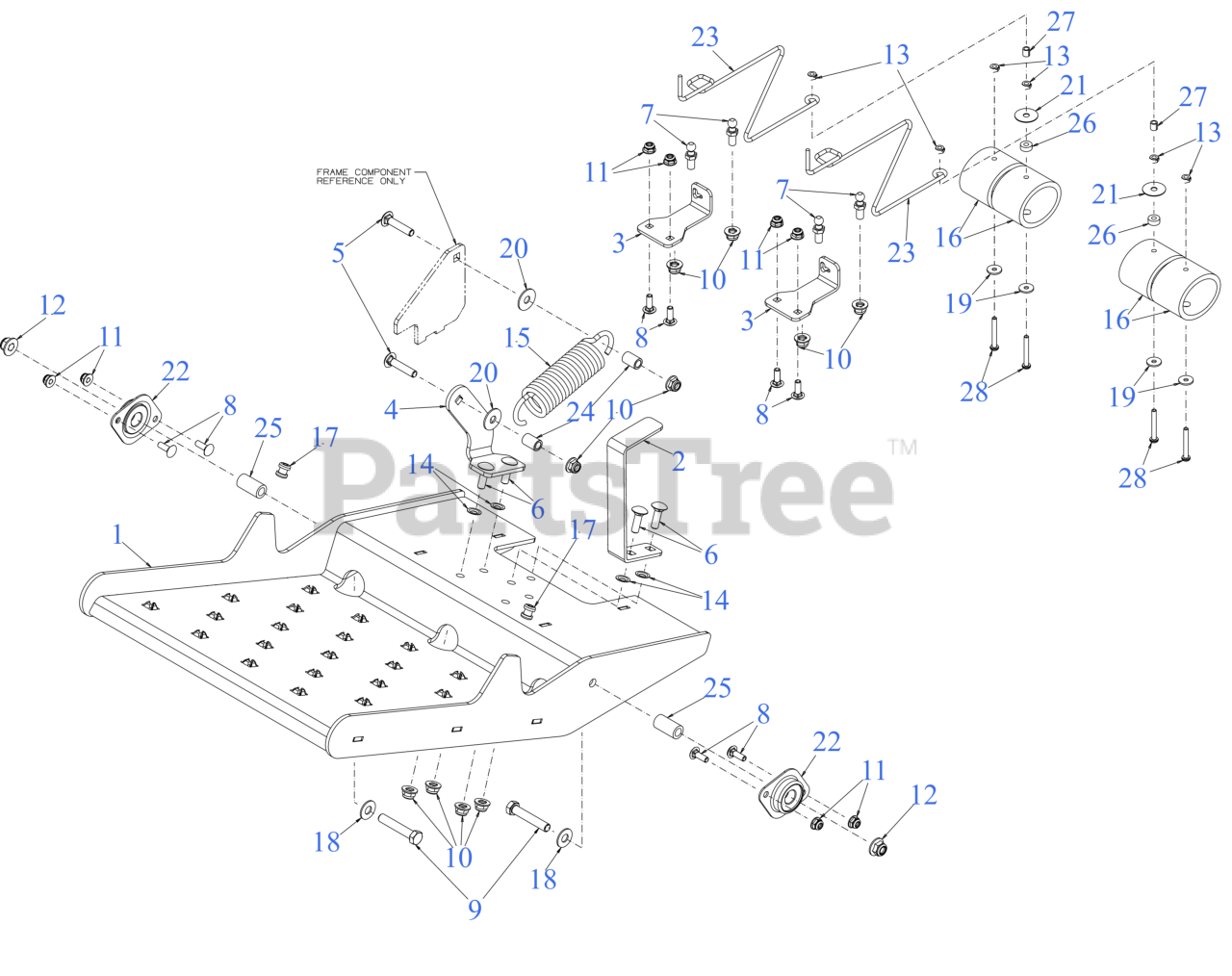

Platform Parts Diagram

  • Title
1

Cub Cadet 680-02314

PLATFORM

Note: *CHOOSE COLOR WHEN ORDERING*

$302.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703E25170

SWITCH BRACKET

$14.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E25204

ADJUSTMENT BRACKET

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E25264

SPRING MOUNT BRACKET
(Superseded to 703E25264A)

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

6

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04166

BALL STUD 5/16-18

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

In Stock, only 1 left!

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04343

LOCK NUT 10-24

$4.99

$

Usually ships in 3-6 days

0

14

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 732P07126

EXTENSION SPRING 1.478 x 5.729

$17.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 735-06898

RADIAL BUMPER

$25.99

$

Usually ships in 3-6 days

0

17

$2.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0267

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 936-0400

FLAT WASHER .192X.625X.057
(Superseded to 736-0400)

$

$

Not available

20

Cub Cadet 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 6

0

22

Cub Cadet 741-04566

BALL BEARING

$15.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-11030

ADJUSTMENT SUPPORT ROD

$42.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 750-06170

SLEEVE .33X.50X.75 LG

$5.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 750-08410

SPACER .380x.624x1.040

$4.49

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 797-00015

SPACER-SPLIT

$3.49

$

Usually ships in 3-6 days

0

28

$11.99

$

In Stock, Qty 16

0
