PRO X 600 KW 636 (53RZ3CSB050) - Cub Cadet Pro X 36" Stand-On Mower, Kawasaki, 18.5hp (2021) Brake Parts Diagram

Pro X 36" Stand-On Mower, Kawasaki, 18.5hp

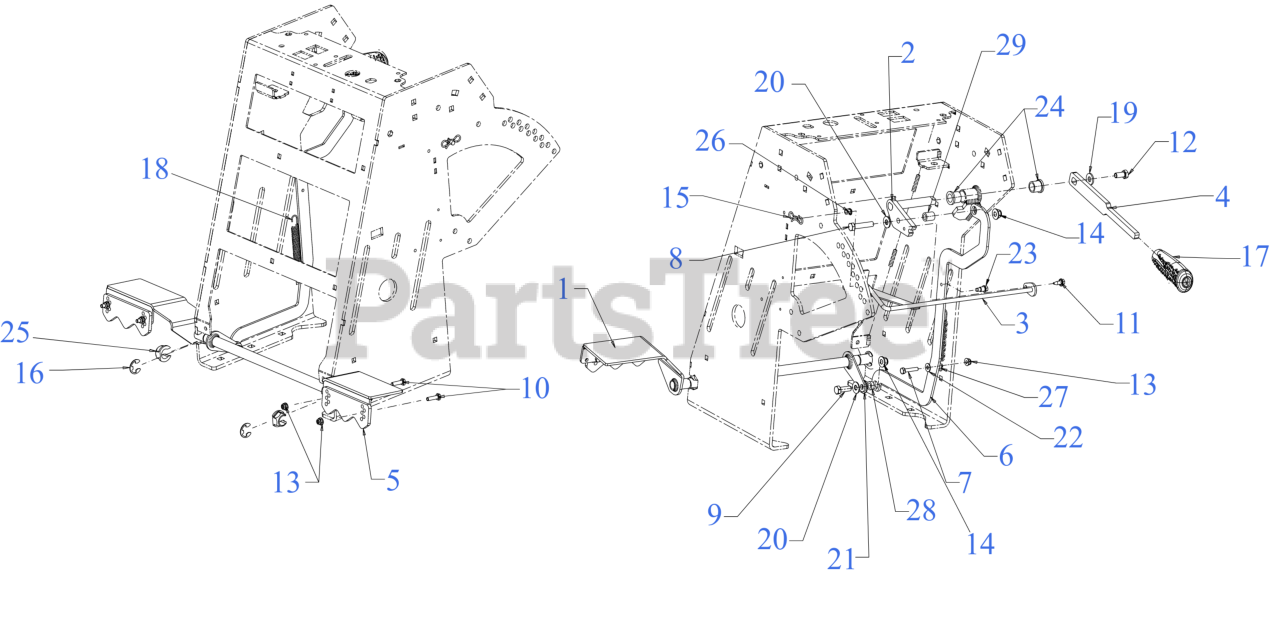

Brake Parts Diagram

  • Title

1

Cub Cadet 680-02375

BRAKE ASSEMBLY
(Superseded to 680E02375)

$154.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680E02376

BRAKE HANDLE PIVOT ASSEMBLY

$85.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680E02378

LOCK CONTROL ROD ASSEMBLY

$65.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E20676

BRAKE HANDLE

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E25194

BRAKE WEDGE BRACKET

$13.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E25196

BRAKE CONNECTION PLATE

$34.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0106

HEX SCREW 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

8

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 14

0

11

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

13

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 18

0

16

Cub Cadet 716-0231

E-RING

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 720-04139B

GRIP

$18.99

$

In Stock, Qty 10

0

18

Cub Cadet 932-0470A

EXTENSION SPRING

$9.99

$

In Stock, Qty 6

0

19

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0267

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-3020

FLAT WASHER .271:.630:.065

$6.99

$

In Stock, Qty 9

0

23

Cub Cadet 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 741-0353

FLANGE BEARING

$11.99

$

In Stock, Qty 20+

0

25

Cub Cadet 741-04504

HEX FLANGE SPLIT BEARING

$8.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 741-1140

BUSHING .3135ID

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 750-04556

SPLIT SPACER

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 950-0535

SPACER-.380 ID x .625 OD x .227

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 750-10271

SPACER .38 x .625 x .43

$6.99

$

Usually ships in 3-6 days

0
