PRO K243 - Troy-Bilt 24" Walk-Behind Mower (SN: 832492 - 837975) BLADE BRAKE SUPPLEMENT Parts Diagram

24" Walk-Behind Mower

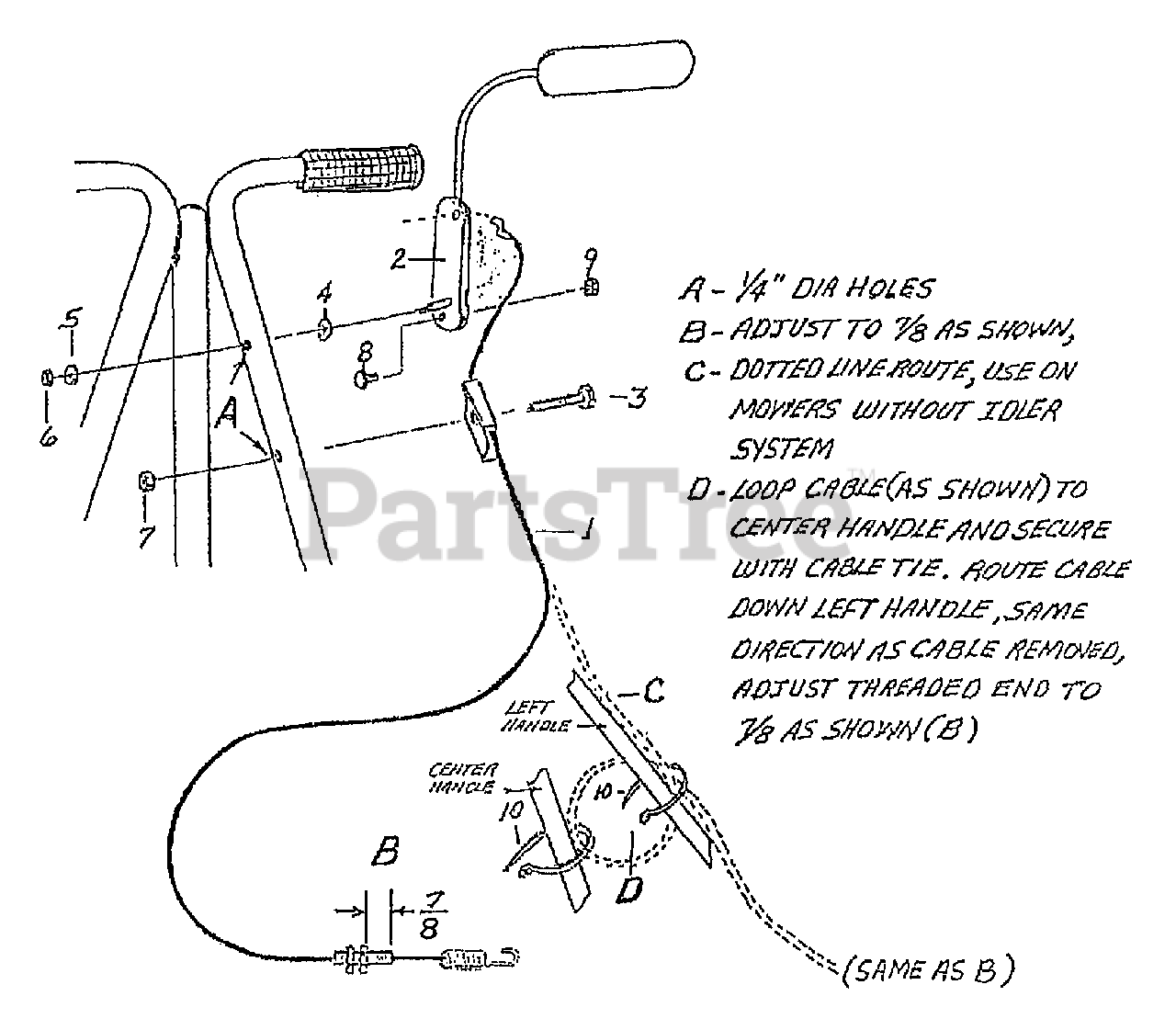

BLADE BRAKE SUPPLEMENT Parts Diagram

  • Title
1

Troy-Bilt M7520129

BLADE BRAKE CONTROL CABLE

$

$

Currently unavailable

2

Troy-Bilt M1220115

BLADE CONTROL LEVER

$

$

Currently unavailable

3

Troy-Bilt M6524008

SCREW 1/4-20X1.5 G5ZP

$

$

Currently unavailable

4

Troy-Bilt M6520052

WASHER-FLAT 1/4

$

$

Currently unavailable

5

Troy-Bilt M6520015

WASHER, 3/16 FLAT

$

$

Currently unavailable

6

Troy-Bilt M6528054

NUT 10-24 NYLON LOCK

$

$

Currently unavailable

7

Troy-Bilt M6520038

NUT-LK 1/4-20

$

$

Currently unavailable

8

Troy-Bilt M6520014

SCR-HH #10-24X.375

$

$

Currently unavailable

9

Troy-Bilt M6520024

NUT-3/16 HEX LOCK

$

$

Currently unavailable

10

Troy-Bilt M7520108

CABLE TIE

$

$

Currently unavailable

Troy-Bilt M7520093

KIT-BBC CABLE

$

$

Currently unavailable
