PRO HW 300 354 (55RI6HNV050) - Cub Cadet Walk-Behind Mower (2022) Deck Parts Diagram

Walk-Behind Mower

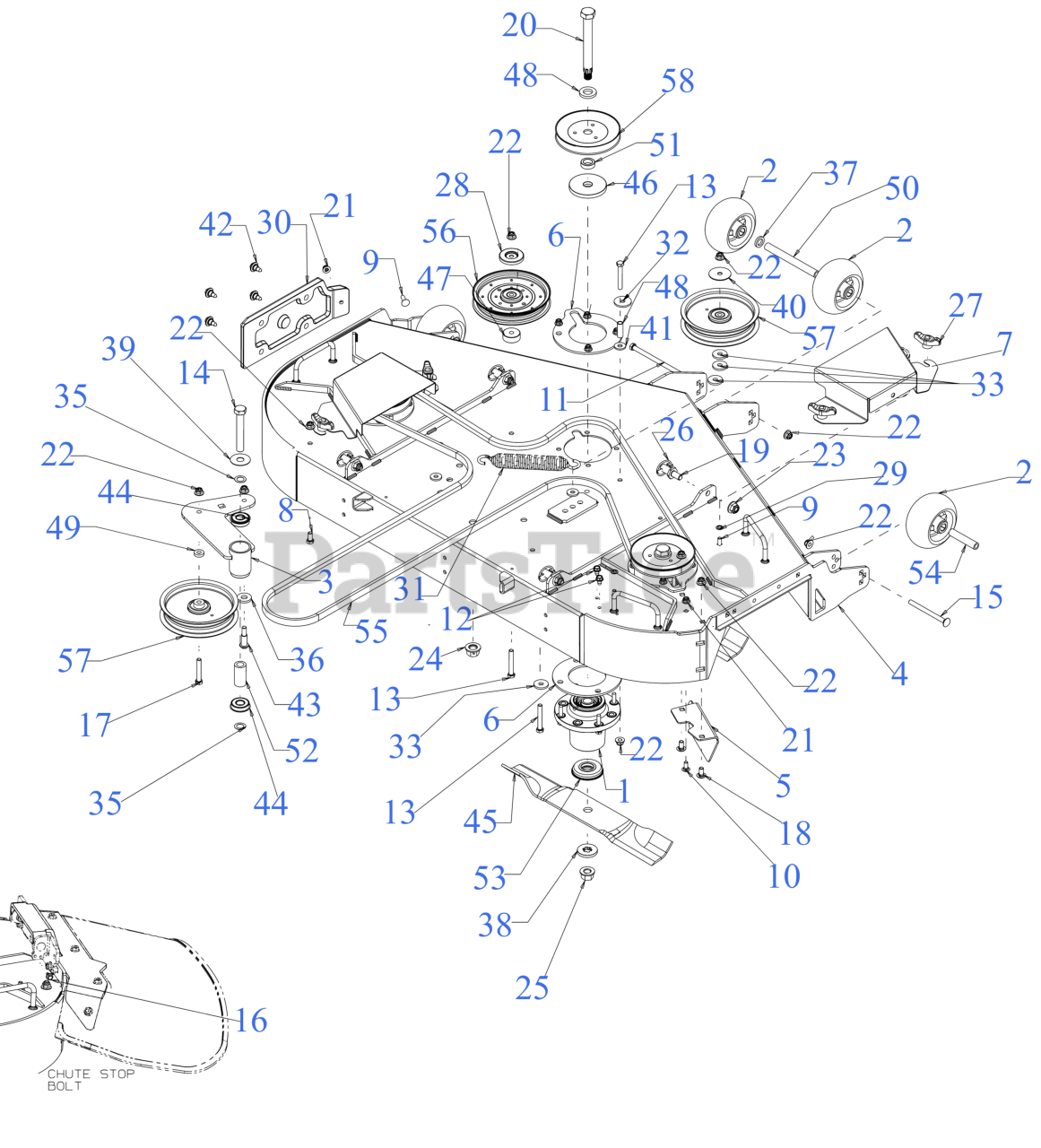

Deck Parts Diagram

  • Title

1

Cub Cadet 618-07406

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$186.99

$

In Stock, only 2 left!

0

2

Cub Cadet 634-05451

5" DIA DECK WHEEL COMPLETE

$24.99

$

In Stock, Qty 5

0

2

Cub Cadet 741-0487C

FLANGE BEARING

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00512A

IDLER ARM ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$69.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00528B

54" FAB DECK ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$1387.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09593A

DECK CHUTE BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09593A-0637

BLACK DECK CHUTE BAFF - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09593A-4021

YELLOW DECK CHUTE BAF - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E10057A

SPINDLE SUPPORT PLATE TOP & BOTTOM

Variations

Cub Cadet 703E10057A-4021

SPINDLE SUPPORT - CUB YELLOW 2 (4021)

$27.99

$

In Stock, only 1 left!

0

$25.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-11635

BELT COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-11635-4021

YELLOW BELT COVER 485 - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

10

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-04692

SCREW 3/8-16 x 7.25 GR5

$9.49

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

13

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

14

Cub Cadet 710-1143A

SCREW 5/8-18 x 4 GR5

$11.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-1649

CARRIAGE BOLT 3/8-16 x 4.25 GR5

$17.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

20

Cub Cadet 711-06787

SPINDLE SHAFT

$33.99

$

In Stock, only 1 left!

0

21

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-04327

NUT

$7.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0

26

Cub Cadet 753-04070

LYNCH PIN .1875

$9.99

$

In Stock, Qty 20+

0

27

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, only 4 left!

0

28

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

29

Cub Cadet 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-11926

DECK SKID PLATE (LH)

$50.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 12

0

32

Cub Cadet 736-0227

FLAT WASHER .390x1.500x.134

$6.49

$

In Stock, Qty 13

0

33

Cub Cadet 736-0247

FLAT WASHER

$9.49

$

In Stock, Qty 15

0

34

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 1 left!

0

35

Cub Cadet 736-0349

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-04019

FLAT WASHER .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

37

Cub Cadet 736-04296

FLAT WASHER .632X1.00X.16

$3.49

$

In Stock, only 1 left!

0

38

Cub Cadet 736-05223A

FLAT WASHER - SPECIAL

$6.99

$

In Stock, Qty 15

0

39

Cub Cadet 736-05255

THRUST WASHER .635x1.750x0.055

$1.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

41

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, only 2 left!

0

43

Cub Cadet 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 19

0

44

Cub Cadet 941-0563

BALL BEARING W/RET

$36.99

$

In Stock, Qty 11

0

45

Cub Cadet 942-04416

19" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

45

Cub Cadet 490-110-C186

Cub Cadet 54" HI LIFT BLADE SET

Note: Retail Packaged Part

$99.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 742-04416-ES

19" BLADE (HI LIFT)

$52.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 742P04416-L

LOW-LIFT 19"BLADE (54"DECK)

$28.99

$

In Stock, only 3 left!

0

45

Cub Cadet 02005018P-X

BLADE- HI LIFT 19.0 XTREME

$24.99

$

In Stock, Qty 6

0

45

Cub Cadet 01005380P-X

19" XTREME BLADE

$42.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 748-05174

DECK SPINDLE SPACER
(Superseded to 748-05174A)

$11.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 750-05392

SPACER - .385 ID x 1.500DX .585 L

$12.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-05673

SPACER

$8.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-06192A

SPACER

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 750-06516

WHEEL SPACER

$11.99

$

In Stock, only 1 left!

0

51

Cub Cadet 750-06708

SPACER (.792 x 1.20 x .380)

$4.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.99

$

In Stock, only 1 left!

0

53

Cub Cadet 750-06749

SPACER 0.790 x 2.75 x 0.486
(Superseded to 750-06749A)

$13.99

$

In Stock, Qty 5

0

54

Cub Cadet 750-3193

WHEEL SPACER .38ID x 3.04LG

$18.99

$

In Stock, Qty 20+

0

55

Cub Cadet 954-05813

DECK BELT B SEC x 154

$157.99

$

In Stock, only 1 left!

0

56

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, only 1 left!

0

57

Cub Cadet 756-05257

IDLER PULLEY (6.00" DIA)

$80.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 756-05267

SPINDLE PULLEY (5.625")

$32.99

$

Usually ships in 3-6 days

0
