PRO HW 300 354 (55RI6HNV050) - Cub Cadet Walk-Behind Mower (2019) Engine Accessories Parts Diagram

Walk-Behind Mower

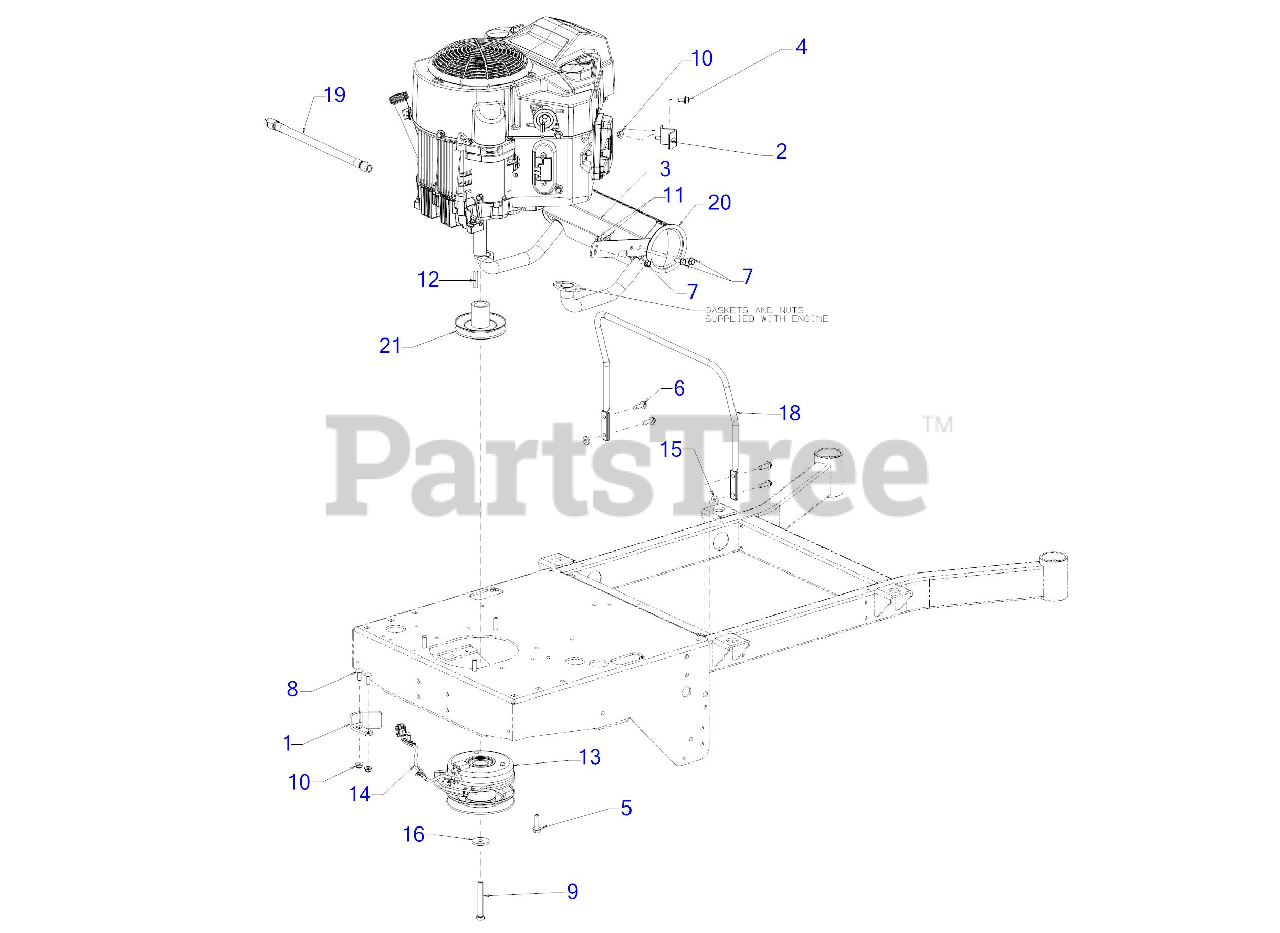

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 703-11287-4021

PTO CLUTCH RETAINER BRACKET

$28.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703E11304

MUFFLER MOUNTING BRACKET

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-11969

MUFFLER SHIELD

$40.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-06012A

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 7

0

6

Cub Cadet 710-0602

SCREW 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-06194

SCREW 5/16-18 x .750 GR8

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3105

BOLT 5/16-18X .875 GR1

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$10.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 714-0118

SQUARE KEY 1/4 x 1.50

$6.99

$

In Stock, only 4 left!

0

13

Cub Cadet 917-05438

PTO CLUTCH

$

$

Not available

14

Cub Cadet 725-06173

CLUTCH HARNESS 11"

$30.99

$

In Stock, only 1 left!

0

15

Cub Cadet 936-3008

FLAT WASHER

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

18

Cub Cadet 747-06980

MUFFLER ROD

$38.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 751-10291A

OIL DRAIN HOSE
(Superseded to 751-10291C)

$52.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-15704A

MUFFLER (ROUND)

$210.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 756-05317

ENGINE PULLEY 1.125"

$86.99

$

Usually ships in 3-6 days

0
