PRO HW 300 348 (55RI6HNS050) - Cub Cadet Walk-Behind Mower (2023) Electrical Parts Diagram

Walk-Behind Mower

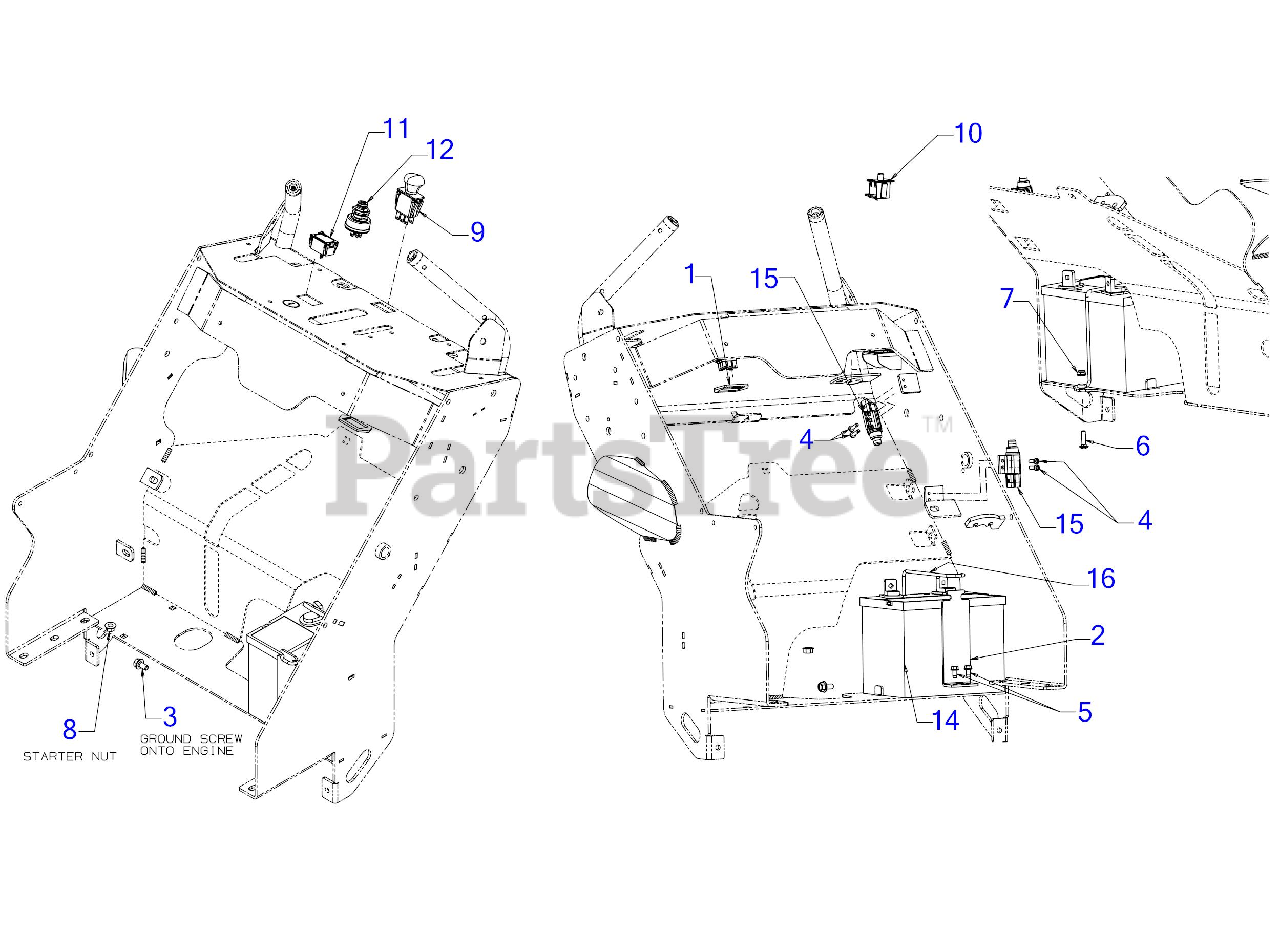

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

BRACKET-PTO SWITCH

$27.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-11341B-4021

BATTERY RETAINING BRACKET

$20.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04757

SCREW (10-24X.75:PH:TAP:T25:GR5)

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0932A

SCREW 1/4-20 x 1 GR5

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3086

HEX FLANGE NUT M8X

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$70.99

$

In Stock, only 3 left!

0

10

Cub Cadet 925-05013

SEAT SWITCH

$31.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 725-05438

HOURMETER

$104.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 925-06854

KEY SWITCH (3 POSITION) (Add 925-06908)

$138.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 925-07087

WIRE HARNESS

$170.99

$

Usually ships in 3-6 days

0

14

Purchase Battery Locally

Note: Service Battery is No Longer Available

$

$

Not available

14

Cub Cadet 925-1707D

BATTERY

$

$

Not available

15

Cub Cadet 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

16

Cub Cadet 747-07051

BATTERY SUPPORT ROD

$13.99

$

Usually ships in 3-6 days

0
