PRO HW 300 336 (55RK6HNR050) - Cub Cadet Walk-Behind Mower (2023) Front Axle Parts Diagram

Walk-Behind Mower

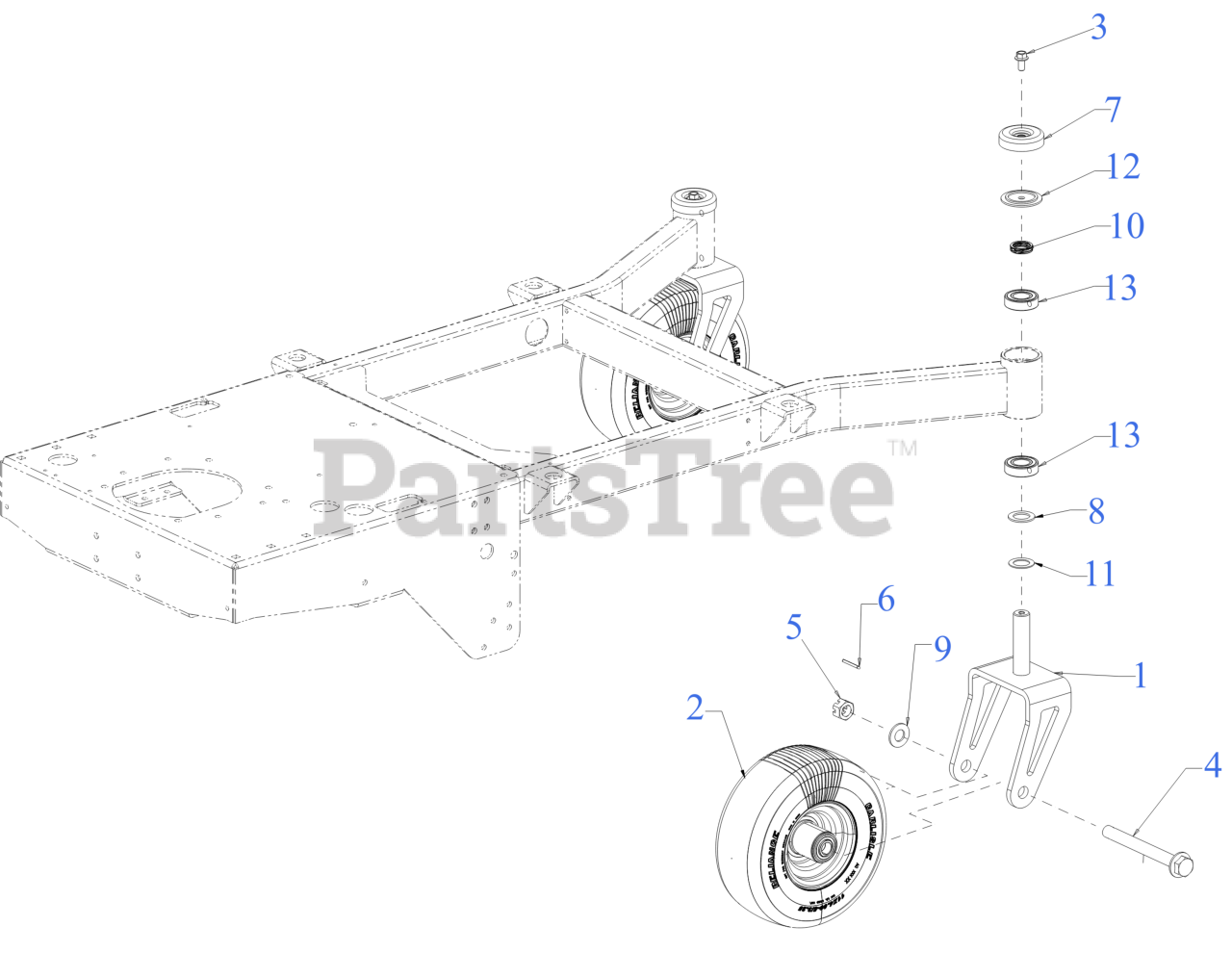

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-05363

FRONT CASTOR ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05363-4021

YELLOW FRONT CASTOR A - CUB YELLOW 2 (4021)

$138.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 634-05413A

WHEEL ASSEMBLY (11 x 4 - 5 SIMI PNE)

$124.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 741-05262

SEALED BALL BEARING

$17.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-06551

BOLT - 3/8-16:.75:GR5:PATCH LOCK

$5.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-07554

HEX FLANGE BOLT 3/4-16x7.0 GR5

$23.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 721-04953

AXLE CAP 2.5"

$20.99

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0277

FLAT WASHER 1.031 X1.62 X.095

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0315

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

10

Cub Cadet 736-05033A

WAVE WASHER

$4.99

$

In Stock, Qty 17

0

11

Cub Cadet 736-0745

WASHER 1.010X1.560X.060

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 738-05091

SHOULDER SPACER

$8.49

$

In Stock, only 1 left!

0

13

Cub Cadet 741-0941A

BALL BEARING (1.0 x 52 x 15)

$17.99

$

In Stock, only 3 left!

0
