PRO 223 - Troy-Bilt 22" Walk-Behind Mower (SN: 832492 - 837975) MAIN ASSEMBLY Parts Diagram

22" Walk-Behind Mower

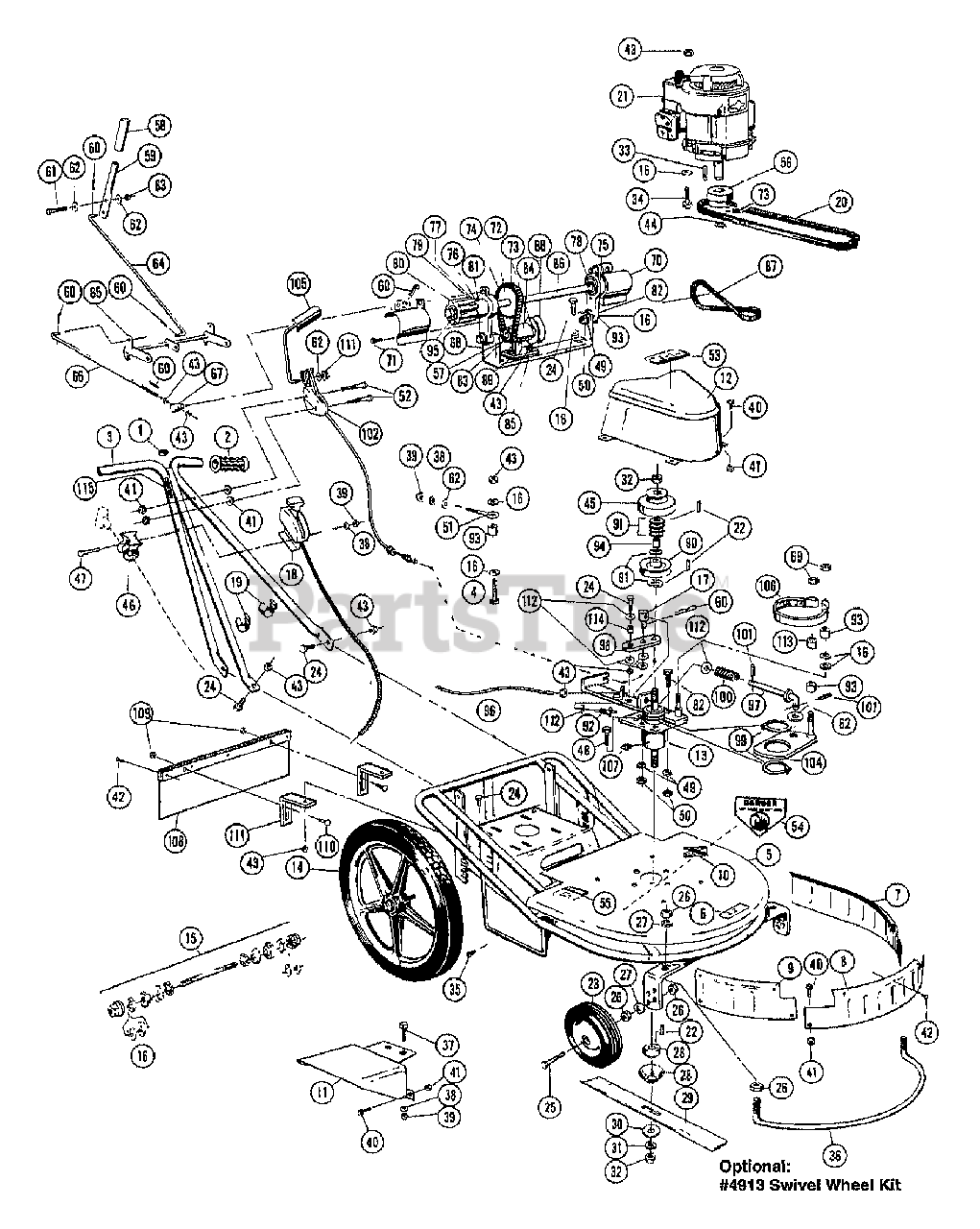

MAIN ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt M7520017

PLUG-HANDLE

$

$

Currently unavailable

2

Troy-Bilt M7520007

GRIP-HANDLE

$

$

Currently unavailable

3

Troy-Bilt M1222010

ASSM-HANDLEBAR 22"

$

$

Currently unavailable

4

Troy-Bilt M6522004

SCREW 5/16-18 x 2-1/4" HHC

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Troy-Bilt M8520022

CUTTING WIDTH DECAL 22

$

$

Currently unavailable

7

Troy-Bilt M1220009

GUARD-LEFT 20" & 24"

$

$

Currently unavailable

8

Troy-Bilt M1222007

GUARD-FRONT 22"

$

$

Currently unavailable

9

Troy-Bilt M1220084

GUARD-RIGHT

$

$

Currently unavailable

10

Troy-Bilt M8520002

DECAL-CAUTION

$

$

Currently unavailable

11

Troy-Bilt M1220063

DEFLECTOR-DISCHARGE

$

$

Currently unavailable

12

Troy-Bilt M1220012

HOOD-MOWER

$

$

Currently unavailable

13

Troy-Bilt M2822022

ASSM-SPINDLE 22"

$

$

Currently unavailable

13

Troy-Bilt M1222020

HOUSING-SPINDLE 22"

$

$

Currently unavailable

13

Troy-Bilt M1222017

SHAFT-SPINDLE 22"

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Troy-Bilt M7520052

ASSM-WHEEL 16" W/KNOBBY

$

$

Currently unavailable

14

Troy-Bilt M7520018

ASSM-WHEEL 16" W/O TIRE

$

$

Currently unavailable

14

Troy-Bilt M7520050

TIRE-16" KNOBBY

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Troy-Bilt M7520088

KIT-AXLE FOR NYLON WHEEL

$

$

Currently unavailable

$

$

Currently unavailable

15

Troy-Bilt M6020008

BEARING RETAINER (NOT SHOWN)

$

$

Currently unavailable

15

Troy-Bilt M7520090

DUST COVER SET (2)

$

$

Currently unavailable

15

Troy-Bilt M7520089

BEARING CUP SET (2)(NOT SHOWN)

$

$

Currently unavailable

15

$

$

Currently unavailable

16

Troy-Bilt M6520007

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

17

Troy-Bilt M1220092

PIN-CONNECTING ROD

$

$

Currently unavailable

?18

Troy-Bilt M7522021

CABLE-THROTTLE 22"

$

$

Currently unavailable

19

Troy-Bilt M7520014

CLIP-THROTTLE CABLE

$

$

Currently unavailable

20

Troy-Bilt M7524058

BELT-DRIVE #464-22"

$

$

Currently unavailable

21

0

ENGINE, BRIGGS 5HP, VERTICAL SHAFT #130902

$

$

Not available

21

0

ENGINE, BRIGGS 5HP, IC VERTICAL SHAFT #131922

$

$

Not available

22

Troy-Bilt M1220018

KEY-3/16-1/2

$

$

Currently unavailable

23

Troy-Bilt M7524001

WHEEL-FRONT 6"

$

$

Currently unavailable

24

Troy-Bilt M6522014

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

25

Troy-Bilt M6520016

SCR-HH 1\2X2.75

$

$

Currently unavailable

26

Troy-Bilt M6520018

NUT-HEX JAM 1/2-13

$

$

Currently unavailable

27

Troy-Bilt M6520017

WASHER-LK .5

$

$

Currently unavailable

28

Troy-Bilt M7520099

KIT-BLADE ADAPTOR

$

$

Currently unavailable

28

Troy-Bilt M7520098

BLADE ADAPTOR NUT

$

$

Currently unavailable

28

Troy-Bilt M1220051

BEARING GUARD

$

$

Currently unavailable

29

Troy-Bilt M7522011

BLADE-22" REPLACE PRO MWR

$

$

Currently unavailable

30

Troy-Bilt M6520022

WASHER-FLAT 5/8

$

$

Currently unavailable

31

Troy-Bilt M6520023

WASHER-LK .625 ZP

$

$

Currently unavailable

32

Troy-Bilt M6520021

NUT-5/8 HEX

$

$

Currently unavailable

33

Troy-Bilt M1222018

KEY-1/4 X L

$

$

Currently unavailable

34

Troy-Bilt M6522016

SCR-HH 5/16-18X1.5 G5 ZP

$

$

Currently unavailable

35

Troy-Bilt M6520036

SCR-#14 X .75

$

$

Currently unavailable

36

Troy-Bilt M1222035

BUMPER-22"

$

$

Currently unavailable

37

Troy-Bilt M6528009

SCR-HH 1/4-20 X .625

$

$

Currently unavailable

38

Troy-Bilt M6520031

WASHER-LK .25 ZP

$

$

Currently unavailable

39

Troy-Bilt M6520020

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

40

Troy-Bilt M6520014

SCR-HH #10-24X.375

$

$

Currently unavailable

41

Troy-Bilt M6520024

NUT-3/16 HEX LOCK

$

$

Currently unavailable

42

Troy-Bilt M6520032

POP RIVET

$

$

Currently unavailable

43

Troy-Bilt M6520063

NUT 5/16-18

$

$

Currently unavailable

44

Troy-Bilt M6522004

RETAINER 1"

$

$

Currently unavailable

45

Troy-Bilt M7520094

ASSM-DRUM/PULLEY

$

$

Currently unavailable

46

Troy-Bilt M396494

GUIDE-ROPE

$

$

Currently unavailable

47

Troy-Bilt M6520071

SCR-HH 1/4-20 X 2.25

$

$

Currently unavailable

48

Troy-Bilt M6520008

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

49

Troy-Bilt M6520002

WASHER-LOCK 3/8

$

$

Currently unavailable

50

Troy-Bilt M6520003

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

51

Troy-Bilt M6520019

BOLT-EYE 1/4 X 3

$

$

Currently unavailable

52

Troy-Bilt M6520072

SCR-HH #10-24 X 2.25

$

$

Currently unavailable

53

Troy-Bilt M8520001

DECAL-"PRO"

$

$

Currently unavailable

54

Troy-Bilt M8520003

DECAL-BLADE WARNING

$

$

Currently unavailable

55

Troy-Bilt M8520012

DECAL-DISCHARGE CHUTE

$

$

Currently unavailable

56

Troy-Bilt M7522016

CLUTCH-SINGLE 1 BORE

$

$

Currently unavailable

57

Troy-Bilt M6523048

SCR-SET (W02350401)

$

$

Currently unavailable

58

Troy-Bilt M7523007

GRIP-POWER LEVER

$

$

Currently unavailable

59

Troy-Bilt M1223070

LEVER-POWER SP

$

$

Currently unavailable

60

Troy-Bilt M6523027

PIN-HITCH (24" MODEL)

$

$

Currently unavailable

61

Troy-Bilt M6524008

SCR-HH 1/4-20X1.5 G5ZP

$

$

Currently unavailable

62

Troy-Bilt M6520052

WASHER-FLAT 1/4

$

$

Currently unavailable

63

Troy-Bilt M6520038

NUT-LK 1/4-20

$

$

Currently unavailable

64

Troy-Bilt M1223013

ROD-UPPER 22" SP/24

$

$

Currently unavailable

65

Troy-Bilt M1223068

BRKT-FULCRUM 22" SP

$

$

Currently unavailable

66

Troy-Bilt M1223095

ROD-LOWER 22" SP

$

$

Currently unavailable

67

Troy-Bilt M1223092

CONNECTOR-PIVOT PIN

$

$

Currently unavailable

68

Troy-Bilt M1223069

BRKT-LOWER DR 22" SP

$

$

Currently unavailable

69

Troy-Bilt M6520073

NUT W/NYLON INSERT 3/8-24

$

$

Currently unavailable

70

Troy-Bilt M1223059

GUARD-ROLLER LT

$

$

Currently unavailable

70

Troy-Bilt M1223061

GUARD-ROLLER RT

$

$

Currently unavailable

71

Troy-Bilt M6523046

SCR #10-24 X .625

$

$

Currently unavailable

72

Troy-Bilt M7523036

SPROCKET-36 TOOTH

$

$

Currently unavailable

73

Troy-Bilt M6523036

SCR-SET 5/16 X .312

$

$

Currently unavailable

74

Troy-Bilt M7523042

CHAIN-43 PITCH SP

$

$

Currently unavailable

75

Troy-Bilt M2823024

ASSM-HSG ROCKER SP

$

$

Currently unavailable

75

Troy-Bilt M1223021

HOUSING-ROCKER ARM SP

$

$

Currently unavailable

75

$

$

Currently unavailable

76

Troy-Bilt M6523009

PIN-ROLL 3/16X1.25

$

$

Currently unavailable

77

Troy-Bilt M6523011

PIN-DOWEL

$

$

Currently unavailable

78

Troy-Bilt M6523019

PIN-ROLL 3/16X.812

$

$

Currently unavailable

79

Troy-Bilt M7523006

SPRING-DOWEL RETURN

$

$

Currently unavailable

80

Troy-Bilt M1223020

ROLLER-SPLINED

$

$

Currently unavailable

81

Troy-Bilt M1223024

RATCHET-ROLLER DR LT

$

$

Currently unavailable

81

Troy-Bilt M1223025

RATCHET-ROLLER DR RT

$

$

Currently unavailable

82

Troy-Bilt M6523003

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Currently unavailable

83

Troy-Bilt M7523038

SPROCKET-10 TOOTH

$

$

Currently unavailable

84

Troy-Bilt M2823022

ASSM-HSG JACKSHAFT

$

$

Currently unavailable

84

Troy-Bilt M7523038

SPROCKET-10 TOOTH

$

$

Currently unavailable

84

Troy-Bilt M1223022

HOUSING-JACKSHAFT

$

$

Currently unavailable

84

Troy-Bilt M1223105

JACKSHAFT

$

$

Currently unavailable

84

$

$

Currently unavailable

85

Troy-Bilt M6523042

SCR-FH 5/16-18 X 1

$

$

Currently unavailable

86

Troy-Bilt M1223054

SHAFT-ROLLER DR 22" SP

$

$

Currently unavailable

87

Troy-Bilt M7523058

BELT-DRIVE #284-24"

$

$

Currently unavailable

88

$

$

Currently unavailable

89

Troy-Bilt M1223030

SHIM-CHAIN ADJUST

$

$

Currently unavailable

90

Troy-Bilt M7520009

PULLEY-3 1/2 X 5/8

$

$

Currently unavailable

91

Troy-Bilt M6523022

WASHER-5/8 ID X .060

$

$

Currently unavailable

92

Troy-Bilt M7520097

SWITCH-ENGINE STOP

$

$

Currently unavailable

93

Troy-Bilt M1223018

BUSHING-ROCKER ARM

$

$

Currently unavailable

94

Troy-Bilt M1223027

SPACER-5/8 ID X 1/2

$

$

Currently unavailable

95

Troy-Bilt M6523005

RING-GRIP

$

$

Currently unavailable

96

Troy-Bilt M1220098

GROUND WIRE ASSEMBLY

$

$

Currently unavailable

97

$

$

Currently unavailable

98

Troy-Bilt M1220096

LEVER-BLADE BRAKE-84

$

$

Currently unavailable

99

Troy-Bilt M6520070

RING-RETAINER

$

$

Currently unavailable

100

Troy-Bilt M7520095

SPRING-BLADE BRAKE

$

$

Currently unavailable

101

Troy-Bilt M6523032

PIN-ROLL 1/8 X .75

$

$

Currently unavailable

102

Troy-Bilt M7520093

KIT-BBC CABLE

$

$

Currently unavailable

?103

Troy-Bilt M6528030

NUT-H/LK 5/16-18

$

$

Currently unavailable

104

Troy-Bilt M1220094

ASSM-BRKT BRAKE BAND

$

$

Currently unavailable

105

Troy-Bilt M1220095

ASSM-HANDLE BLADE BRAKE

$

$

Currently unavailable

106

Troy-Bilt M7520096

BAND-BRAKE 3 3/4

$

$

Currently unavailable

107

Troy-Bilt M7528031

GREASE FITTING

$

$

Currently unavailable

108

Troy-Bilt M1220100

ASSM-REAR GUARD

$

$

Currently unavailable

109

Troy-Bilt M6520075

NUT-H/LK 5/16-18 NYLOCK

$

$

Currently unavailable

110

Troy-Bilt M6520076

BOLT-CARRIAGE 5/16-18X1"

$

$

Currently unavailable

111

Troy-Bilt M1220099

BRKT-MOUNTING 24"

$

$

Currently unavailable

112

Troy-Bilt M6520077

WASHER - 5/16 SAE

$

$

Currently unavailable

113

Troy-Bilt M1223118

SPACER-3/8 ID X 1/2

$

$

Currently unavailable

114

Troy-Bilt M1220082

BUSHING-BRAKE LEVER-84

$

$

Currently unavailable

115

Troy-Bilt M8520013

DECAL-WHEEL DRIVE

$

$

Currently unavailable

Troy-Bilt 4913

SWIVEL WHEEL KIT (OPTIONAL)

$

$

Currently unavailable
