PRO 150 - Weed Eater String Trimmer CUTTING HEAD, & DRIVE SHAFT Parts Diagram

String Trimmer

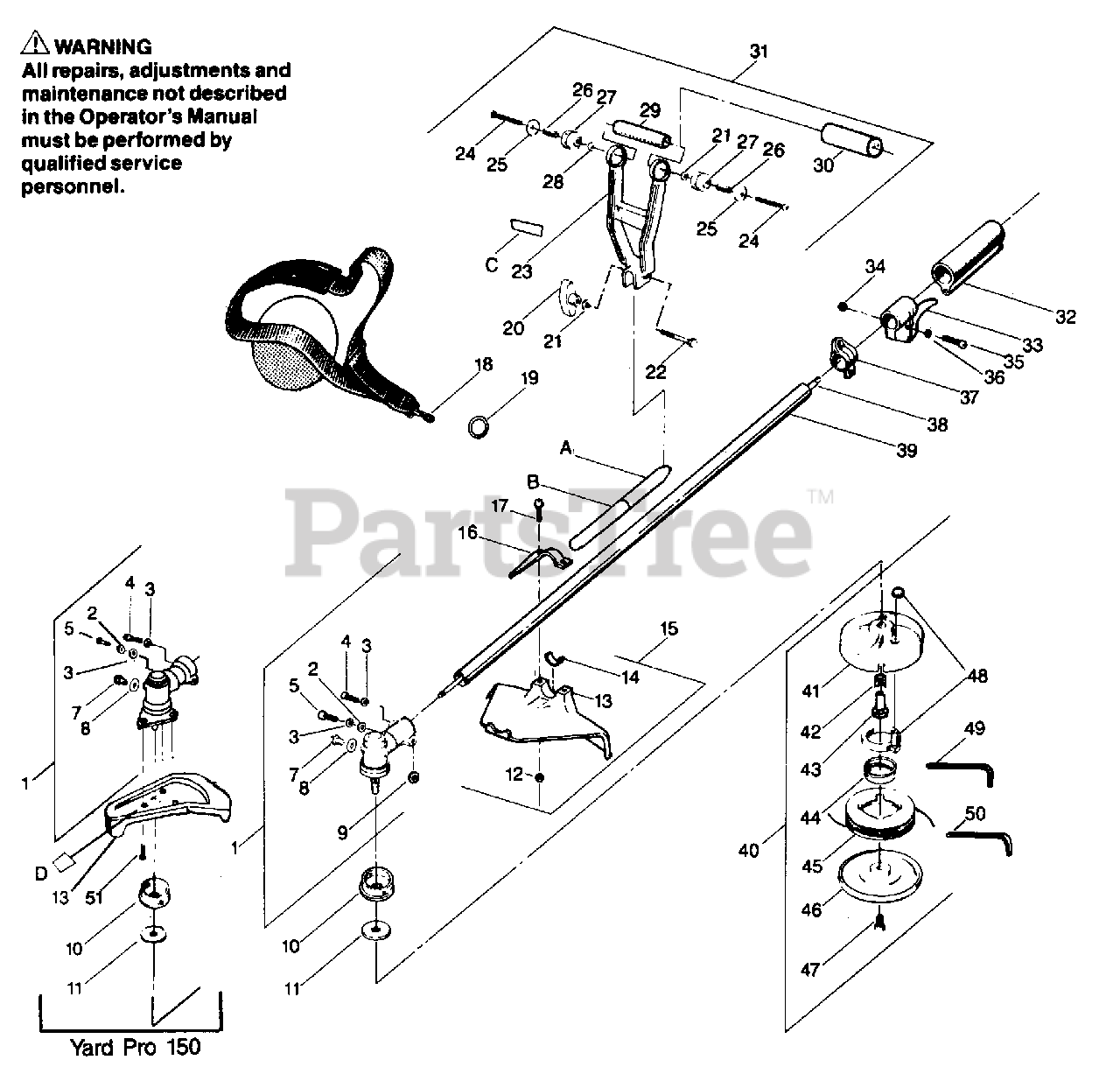

CUTTING HEAD, & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530093968

Pro150

$

$

Not available

1

Poulan 530094495

YP150

$116.99

$

Usually ships in 3-10 days

0

2

Poulan 530094206

Washer - 5mm - Flat - Gear Box - Index/Pinch Clamp

$

$

Not available

3

Poulan 530094449

Lockwasher - 5mm - Gear Box - Index/Pinch Clamp

$

$

Not available

4

Poulan 530094208

Screw - 5 x 12.5mm - Soc. Hd. - Gear Box - Index

$

$

Not available

5

Poulan 530094205

Screw - 5 x 25mm - Soc. Hd. - Gear Box - Pinch Clamp

$

$

Not available

7

Poulan 530094209

PRO150

$

$

Not available

7

Poulan 530094485

YP150

$

$

Not available

8

Poulan 530094203

PRO150

$

$

Not available

8

Poulan 530094486

YP150

$

$

Not available

9

Poulan 530094207

Washer - Spacer - Gear Box - Pinch Clamp - PRO150

$

$

Not available

10

Poulan 530093984

Adaptor - Upper

$

$

Not available

11

Poulan 530093985

Adaptor - Lower

$

$

Not available

12

Poulan 530093981

Nut - 5mm - Shield - PRO150 Only

$

$

Not available

13

Poulan 530093980

PRO150

$

$

Not available

13

Poulan 530094496

YP150

$

$

Not available

14

Poulan 530093979

Spacer - Shield - PRO150 Only

$

$

Not available

15

Poulan 530093967

Shield Ass'y.(incl.#12, 13, 14, 16 & 17) PRO150 Only

$

$

Not available

16

Poulan 530093978

Bracket Shield - PRO150 Only

$

$

Not available

17

Poulan 530093977

Screw - 5 x 25mm - Shield PRO150 Only

$

$

Not available

18

Poulan 530094417

Shoulder Strap

$

$

Not available

19

Poulan 530092231

Key Ring - Shoulder Strap

$

$

Not available

20

Poulan 530092059

Knob - Handle

$9.99

$

Usually ships in 3-10 days

0

21

Poulan 530015149

Washer - Handle

$4.99

$

In Stock, only 3 left!

0

22

Poulan 530092061

Screw - Handle - #1/4 - 20 x 1-3/4"

$

$

Not available

23

Poulan 530093960

Handle Antivibe

$

$

Not available

24

Poulan 530015561

Screw - #12 - 11 x 2" - Isolator Handle

$

$

Not available

25

Poulan 530024376

Cup - Isolator - Handle

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530025985

Spacer - Isolator Handle

$

$

Not available

27

Poulan 530024373

Isolator - Handle

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 530025986

Center - Section - Handle

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530026009

Cushion - Handle

$

$

Not available

31

Poulan 530010764

Ass'y. - Antivibe Handle (Inc.23-30)

$

$

Not available

32

Poulan 530093956

Grip - Drive Shaft Hsg.

$

$

Not available

33

Poulan 530093958

Throttle Control Ass'y.

$

$

Not available

34

Poulan 530094210

Lock Nut - Hex - 5mm - Throttle Control

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 530094294

Screw - 5 x 25mm Phil.

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530094206

Washer - Throttle Control

$

$

Not available

37

Poulan 530093948

Clamp - Shoulder Strap

$

$

Not available

38

Poulan 530093945

PRO150

$42.99

$

Usually ships in 3-10 days

0

38

Poulan 530094443

YP150

$

$

Not available

39

Poulan 530093983

PRO150

$

$

Not available

39

Poulan 530094454

YP150

$86.99

$

Usually ships in 3-10 days

0

40

Poulan 530093954

Cutting Head Assembly (Inc.41-49)

$

$

Not available

41

Poulan 530091656

Hub - Cutting Head

$21.99

$

Usually ships in 3-10 days

0

42

Poulan 530091425

Line Saver - Cutting Head

$

$

Not available

43

Poulan 530091423

Drive Adaptor - Cutting Head

$

$

Not available

43

Poulan 530091657

Spring - Cutting Head

$

$

Not available

45

Poulan 952701526

Spool w/Line - Cutting Head
(Superseded to 952711515)

$

$

Not available

46

Poulan 530091424

Cover - Cutting Head

$

$

Not available

47

Poulan 530091662

Screw - #3/8 - 16 x 7/8" - Cover

$

$

Not available

48

Poulan 530093602

Release Button (Incl. Lock Ring)

$

$

Not available

49

Poulan 530091663

Allen Wrench - Cutting Head

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530092258

Hex Wrench - 4mm

$

$

Not available

51

Poulan 530094487

Screw - YP150 Only

$

$

Not available

A

Poulan 530027432

Decal - Safety Label (Upper)

$

$

Not available

B

Poulan 530027433

Decal - Safety Label (Lower)

$

$

Not available

C

Poulan 530026248

Decal - Antivibe

$

$

Not available

D

Poulan 530027348

Decal - Warning Shield YP150

$

$

Not available

D

, Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530066429

PRO150

$

$

Not available

Poulan 530067099

YP150

$

$

Not available

Poulan 530060773

Carton

$

$

Not available
