PR RT850 X (960920015-01) - Poulan Pro Tiller (2010-02) Tine Assembly Parts Diagram

Tiller

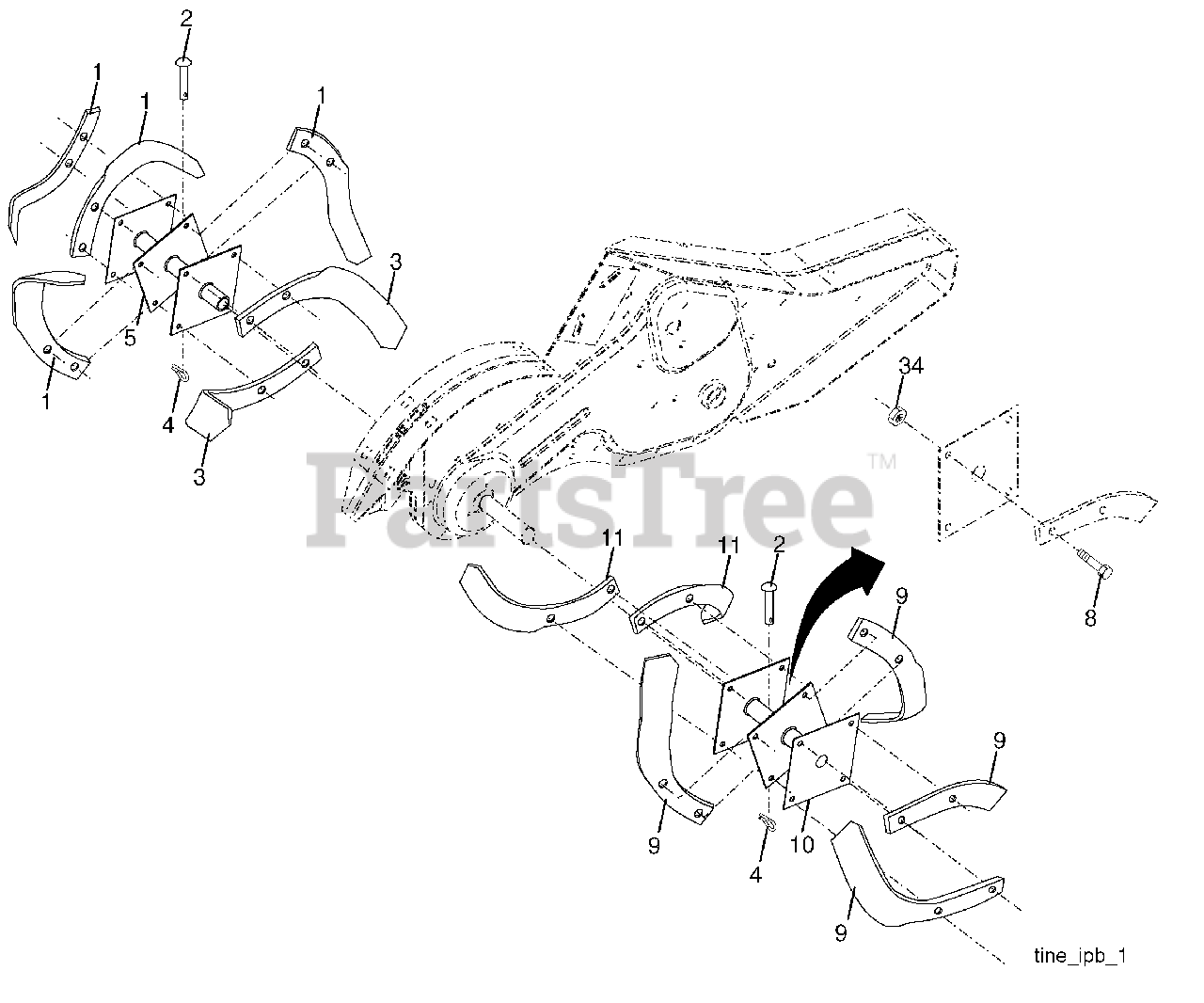

Tine Assembly Parts Diagram

  • Title
1

Electrolux/AYP 4459J

Tine, Outer, L.H.
(Superseded to 532004459)

$

$

Not available

2

Electrolux/AYP 132673

Clevis Pin
(Superseded to 532132673)

$4.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 6554J

Tine, Inner, L.H.
(Superseded to 532006554)

$

$

Not available

4

Electrolux/AYP 3146R

Retainer, Spring Zinc
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 132727

Assembly, Hub and Plate, L.H.
(Superseded to 532132727)

$79.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74610616

Bolt, Hex 3/8-24 x 1
(Superseded to 874610616)

$7.49

$

In Stock, Qty 20+

0

9

Electrolux/AYP 4460J

Tine, Outer, R.H.
(Superseded to 532004460)

$

$

Not available

10

Electrolux/AYP 132728

Assembly, Hub and Plate, R.H.
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 6555J

Tine, Inner, R.H.
(Superseded to 532006555)

$

$

Not available

34

Electrolux/AYP 73540600

Nut Crownlock 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
