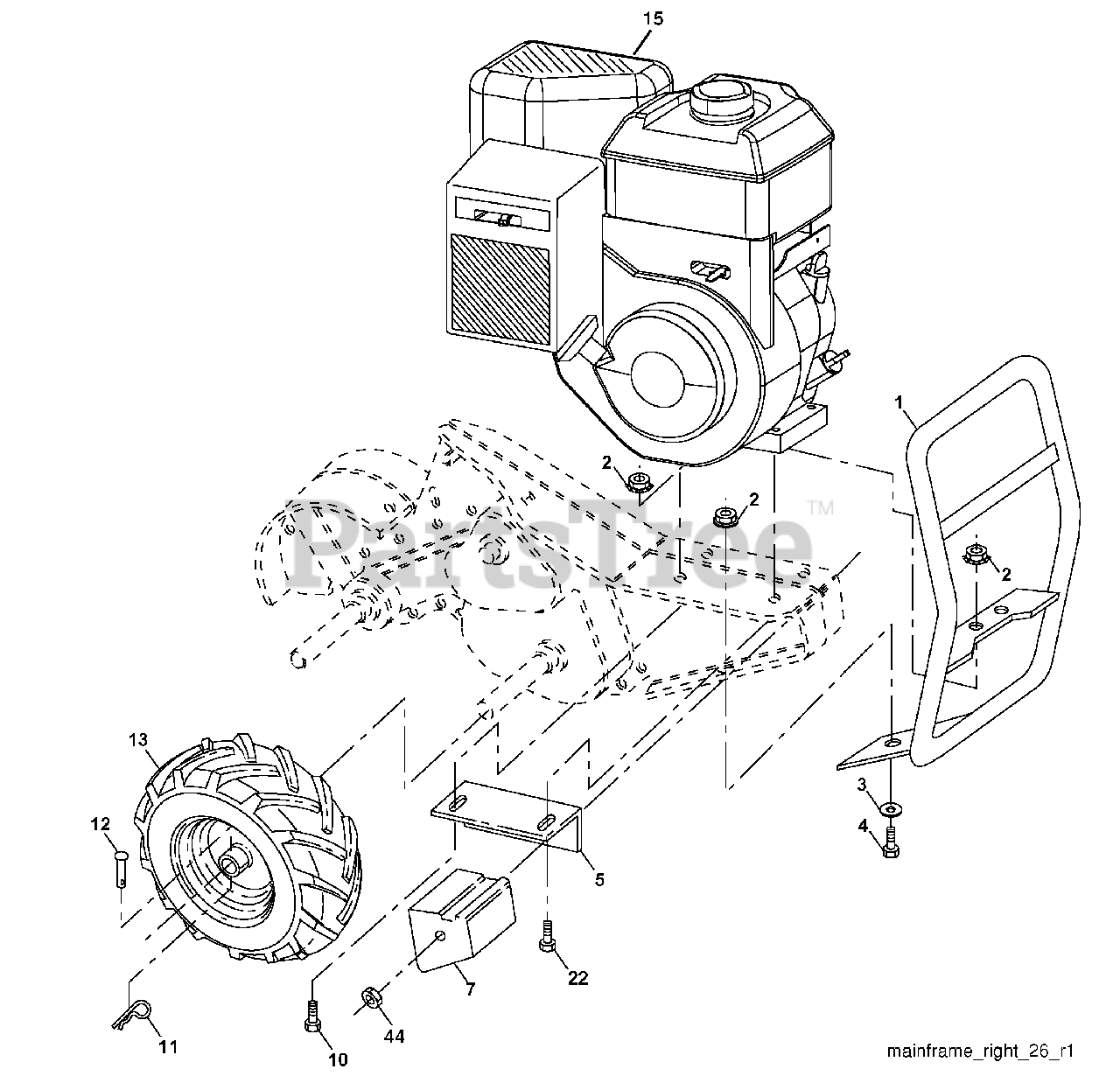

PR RT850 (960920013-04) - Poulan Pro Tiller (2010-02) Mainframe, Right Side Parts Diagram

Tiller

Mainframe, Right Side Parts Diagram

  • Title

1

Electrolux/AYP 185190

Bumper

$36.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 73970500

Locknut, Hex, Flange 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 74760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 102332X

Bracket, Reinforcement
(Superseded to 532102332)

$

$

Not available

7

Electrolux/AYP 102173X

Counter Weight, R.H.
(Superseded to 532102173)

$42.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 74760524

Bolt, Hex 5/16-18 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 4497H

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 126875X

Rivet, Drilled
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 5015J

Tire
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 127259X

Rim
(Superseded to 583673201)

$133.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 795R

Tire Valve

$

$

Not available

15

Engine, Briggs & Stratton Model No. 157202

Note: (Order parts from engine manufacturer)

$

$

Not available

22

Electrolux/AYP 74760528

Bolt, Hex 5/16-18 x 1-3/4
(Superseded to 874760528)

$4.99

$

In Stock, Qty 12

0

44

Electrolux/AYP 73510600

Nut, Keps, Hex 3/8-16 unc
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0
