PR K17G42ST B - Poulan Pro Lawn Tractor (2001) Engine Parts Diagram

Lawn Tractor

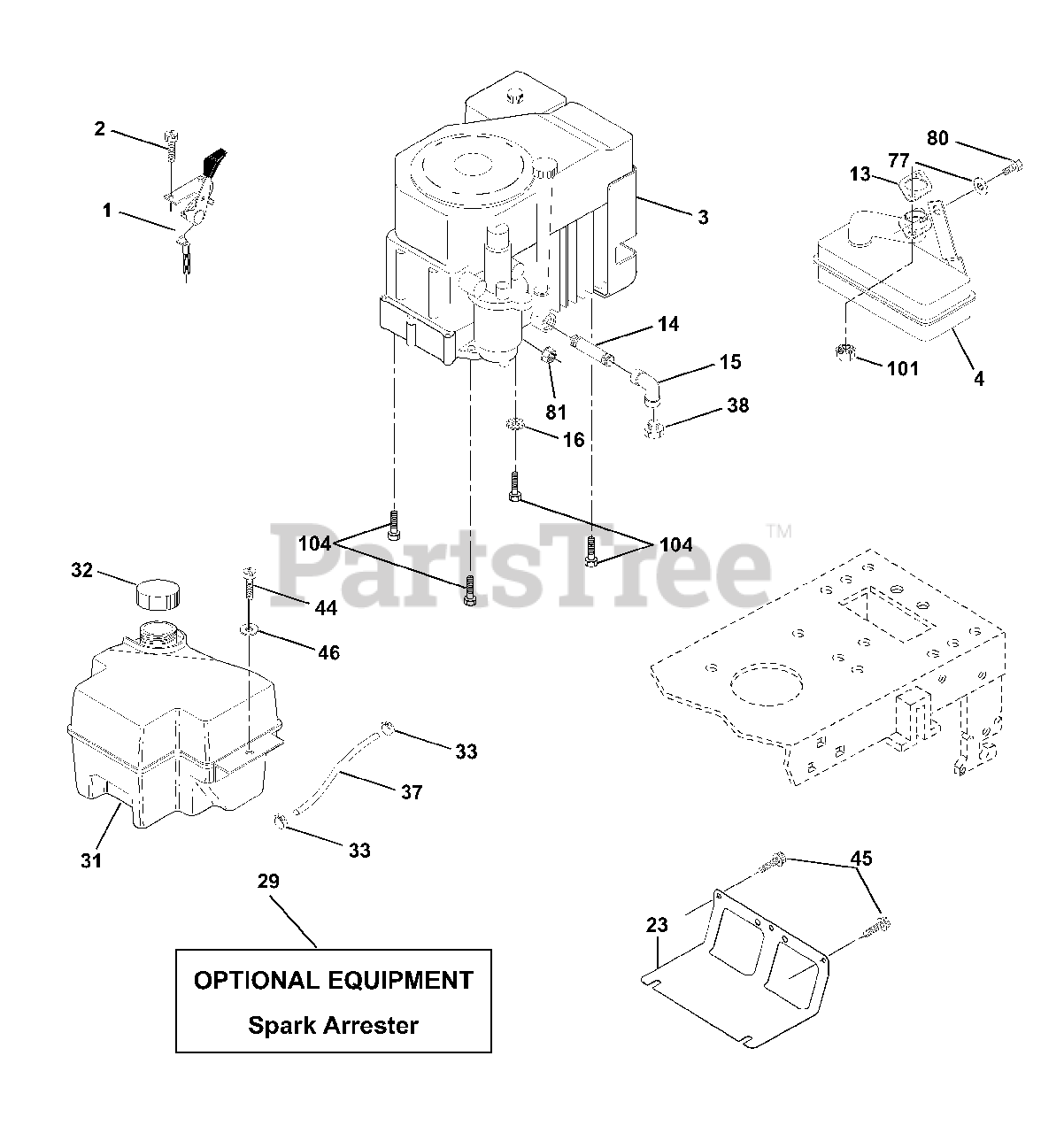

Engine Parts Diagram

  • Title
1

Electrolux/AYP 170805

Control Th/ch Flag
(Superseded to 532170805)

$

$

Not available

2

Electrolux/AYP 17720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 817720410)

$

$

Not available

3

Engine, Kohler CV 490

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

4

Electrolux/AYP 159420

Muffler Exhaust
(Superseded to 532159420)

$121.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 12-041-03

Gasket Muffler

$

$

Not available

14

Electrolux/AYP 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$6.99

$

In Stock, only 4 left!

0

15

UNKNOWN

$

$

Not available

16

Electrolux/AYP 11050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 169837

Shield Brn/Dbr Guard
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Arrestor Spark
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 174642

Tank Fuel Front 2 00
(Superseded to 532180645)

$

$

Not available

32

Electrolux/AYP 140527

Cap Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp Hose Black
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 137040

Line Fuel 20"
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 148315

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

40

Murray 124028X

Bushing Snap Nyl Blk Fuel Line

$

$

Not available

44

Electrolux/AYP 17670412

Screw Hex wsh Thdrol 1/4-20x3/4
(Superseded to 817670412)

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 19091416

Washer 9/32 X 7/8 X 16 Ga
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 19101216

Washer 5/16 x 3/4 x 16 Ga.

$

$

Not available

80

Electrolux/AYP 74760508

Bolt Hex Hd. 5/16-18 Unc x 1/2
(Superseded to 874760508)

$3.99

$

Usually ships in 3-10 days

0

81

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

101

Electrolux/AYP M73030800

Nut Flange
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

104

UNKNOWN

$

$

Not available

105

Electrolux/AYP 17120616

Screw 3/8-16 x 1
(Superseded to 817120616)

$5.99

$

In Stock, Qty 19

0
