PR GT 22H50 B - Poulan Pro Garden Tractor (2001) Ground Drive Parts Diagram

Lawn Tractor

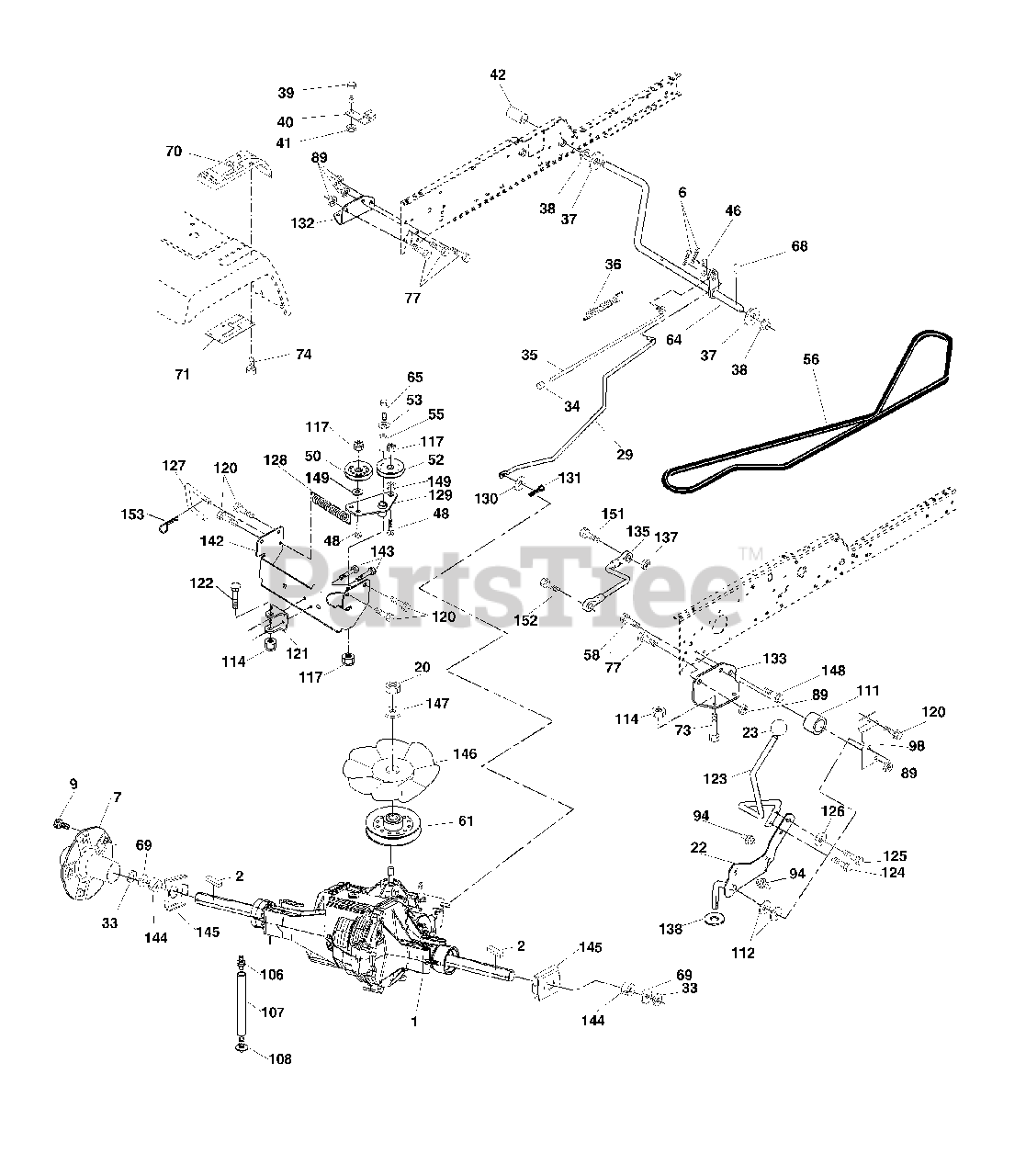

Ground Drive Parts Diagram

  • Title
1

Transaxle Hydro Gear 331-3000

Note: (Order Parts From Transaxle Manufacturer)

$

$

Not available

2

Electrolux/AYP 9396E

Key Sq. 1/4 x 1/4 x 2
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 76020412

Pin, Cotter
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 140507

Wheel, Hub Assembly
(Superseded to 532140507)

$182.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 140080

Bolt, Hub
(Superseded to 532140080)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 73940800

Nut
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

22

Electrolux/AYP 178391

Lever Asm Shift

$26.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 140845

Knob
(Superseded to 532140845)

$13.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 176600

Brake, Rod
(Superseded to 532176600)

$27.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 12000053

Ring E
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 71673

Cap, Parking Brake
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 137648

Rod, Parking Brake
(Superseded to 532137648)

$11.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 149412

Spring, Drive Ground
(Superseded to 532149412)

$

$

Not available

37

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 150035

Nyliner
(Superseded to 532150035)

$4.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74321016

Screw, Fin. #10-24 x 1
(Superseded to 874321016)

$

$

Not available

40

Electrolux/AYP 5304J

Actuator, Interlock Switch
(Superseded to 532178575)

$

$

Not available

41

Electrolux/AYP 73931000

Nut Centerlock 10-24 Unc
(Superseded to 873931000)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 123533X

Cover, Pedal
(Superseded to 532123533)

$6.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 145170

Retainer,Spring
(Superseded to 532145170)

$4.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 72110614

Bolt Rdhd 3/8-16 x 1-3/4 Gr. 5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

52

Murray 127783

Pulley, Idler, Grooved

$

$

Not available

53

Electrolux/AYP 207J

Washer,Hardened
(Superseded to 532000207)

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105706X

Bearing, Idler
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 161597

V-Belt
(Superseded to 532161597)

$48.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 74760724

Bolt Fin Hex 7/16-14 x 1-1/2
(Superseded to 874760724)

$4.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 143995

Pulley, Transaxle
(Superseded to 532143995)

$34.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 176601

Shaft, Brake Pedal
(Superseded to 532176601)

$60.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 67609

Bolt, Shoulder
(Superseded to 532179613)

$6.49

$

In Stock, only 2 left!

0

68

Electrolux/AYP 5142H

Pin, Roll
(Superseded to 532437620)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

70

$

$

Not available

71

Electrolux/AYP 151179

Plate Console Shift
(Superseded to 532151179)

$

$

Not available

73

Electrolux/AYP 74490548

Bolt Hex Flghd 5/16-18 x 3 Gr5
(Superseded to 874490548)

$6.49

$

In Stock, only 1 left!

0

74

Electrolux/AYP 142432

Screw Hex Wsh. Hi-Lo 1/4-1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 74760716

Bolt Fin Hex 7/16-14 x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 73680700

Nut Crownlock 7/16-14 Unc
(Superseded to 873680700)

$2.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 133835

Fastener Christmas Tree
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 141004

Bracket Shift
(Superseded to 532141004)

$

$

Not available

106

Electrolux/AYP 142918

O-Ring Asm Hydro Gear
(Superseded to 532142918)

$

$

Not available

107

Electrolux/AYP 154739

Line Fuel Hydro 15" VGT
(Superseded to 532154739)

$6.49

$

Usually ships in 3-10 days

0

108

Electrolux/AYP 142917

Cap Asm Vent Hydro Gear
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

111

Electrolux/AYP 156240

Spacer Shift Lever VGTH
(Superseded to 532156240)

$2.99

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 156104

Washer Nylon High Temp
(Superseded to 532178558)

$6.49

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 73800500

Nut Lock Hex W/Ins 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

117

Murray 73900600

Nut, Lock Flg. 3/8-16

$

$

Not available

120

Electrolux/AYP 17060612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

121

Electrolux/AYP 175611

Bracket Strap Torque
(Superseded to 532175611)

$7.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 72010520

Bolt 5/16-18 x 2.50
(Superseded to 872010520)

$6.49

$

Usually ships in 3-10 days

0

123

Electrolux/AYP 176602

Rod Shift
(Superseded to 532176602)

$

$

Not available

124

Electrolux/AYP 165492

Bolt Shoulder 5/16-18 x .561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

125

Electrolux/AYP 166880

Screw 5/16-18 x 5/8
(Superseded to 532166880)

$6.49

$

Usually ships in 3-10 days

0

126

Electrolux/AYP 166002

Washer SRRTD 5/16 ID x 1.0 x .125
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

127

Electrolux/AYP 177362

Link Control Clutch
(Superseded to 532177362)

$

$

Not available

128

Electrolux/AYP 176624

Spring Drive GRND
(Superseded to 532176624)

$6.49

$

In Stock, only 1 left!

0

129

Electrolux/AYP 178588

Bracket Asm Idler Tensioning

$

$

Not available

130

Electrolux/AYP 19131016

Washer 13/32 x 5/8 x 16 Ga.
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

131

Electrolux/AYP 76020308

Pin Cotter 3/32 x 1/2
(Superseded to 876020308)

$

$

Not available

132

Electrolux/AYP 175467

Bracket Mtg Hydro 3500 LH VGT
(Superseded to 532175467)

$3.99

$

Usually ships in 3-10 days

0

133

Electrolux/AYP 175468

Bracket Mtg Hydro 3500 RH VGT
(Superseded to 532175468)

$6.49

$

Usually ships in 3-10 days

0

134

Electrolux/AYP 176623

Arm Shift Hydro 3500

$2.49

$

Usually ships in 3-10 days

0

135

Electrolux/AYP 177364

Link Asm Control Hydro 3500
(Superseded to 532177364)

$

$

Not available

136

Electrolux/AYP 1685H

Nut Lock 5/16-18 NC Thd.
(Superseded to 532001685)

$

$

Not available

137

Electrolux/AYP 74780516

Bolt Fin Hex 5/16-18 Unc x 1.00
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

138

Electrolux/AYP 1370H

Washer Thrust 5/8 x 1.10 x 1/32
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

139

Electrolux/AYP 74550412

Bolt 1/4-28 Unf Gr8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Electrolux/AYP 10040400

Washer Lock Hvy. Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

141

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

142

Electrolux/AYP 175469

Strap Torque HG-3500
(Superseded to 532175469)

$37.99

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

144

Electrolux/AYP 160849

Washer Spacer Axle HG-3000
(Superseded to 584322401)

$

$

Not available

145

Electrolux/AYP 163168

Washer Axle Flange HG-3000
(Superseded to 532163168)

$15.99

$

In Stock, only 3 left!

0

146

Electrolux/AYP 140462

Fan 7" Hydro
(Superseded to 532140462)

$12.99

$

Usually ships in 3-10 days

0

147

Electrolux/AYP 141322

Washer
(Superseded to 532141322)

$4.99

$

Usually ships in 3-10 days

0

148

Electrolux/AYP 17060616

Screw 3/8-16 x 1.0
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

149

Electrolux/AYP 19131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 819131410)

$1.99

$

Usually ships in 3-10 days

0

151

UNKNOWN

$

$

Not available

152

UNKNOWN

$

$

Not available

153

Electrolux/AYP 4497H

Spring,Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0
