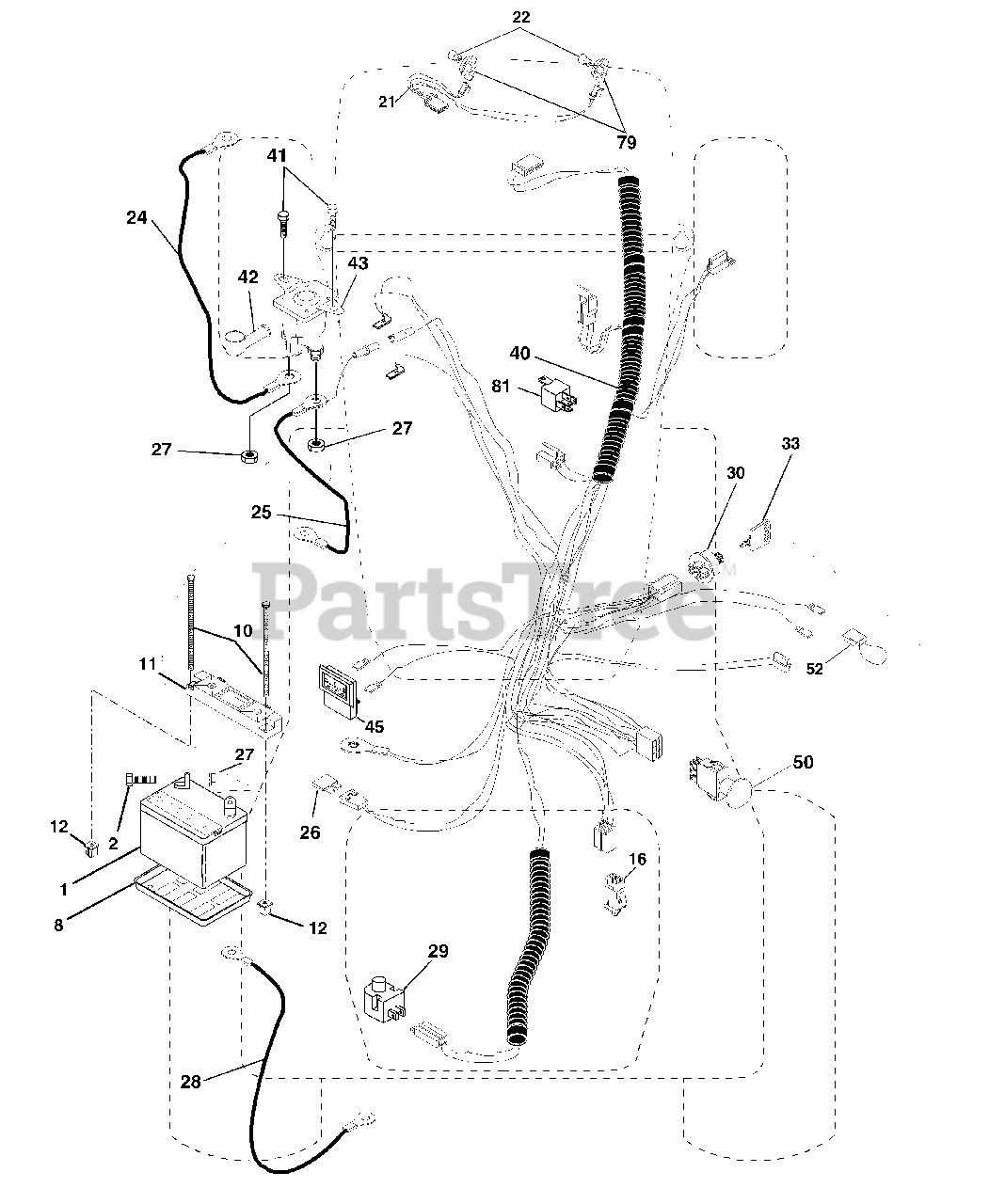

PR GT 22H50 B - Poulan Pro Garden Tractor (2001) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Electrolux/AYP 144926

Battery
(Superseded to 532144926)

$

$

Not available

2

Electrolux/AYP 74760412

Bolt Hex Head 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 7603J

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 145211

Bolt Btr Frt 1/4-20 X 7.5 zinc
(Superseded to 532145211)

$

$

Not available

11

Electrolux/AYP 150109

Holdown Battery Front Mount
(Superseded to 532150109)

$

$

Not available

12

Electrolux/AYP 145769

Nut Push Nylon 1/4"
(Superseded to 532145769)

$

$

Not available

16

Electrolux/AYP 153664

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 166184

Harness Headlight
(Superseded to 532166184)

$

$

Not available

22

Electrolux/AYP 4152J

Bulb Light
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4206J

Cable, Battery
(Superseded to 185464)

$

$

Not available

25

Electrolux/AYP 146149

Cable, Battery
(Superseded to 532146149)

$10.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 108824X

Fuse
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

27

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 170697

Cable,Ground
(Superseded to 532170697)

$24.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 160784

Switch, Plunger
(Superseded to 532160784)

$20.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 175566

Switch, Ign
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 140401

Key
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

40

Electrolux/AYP 170238

Harness, Ignition
(Superseded to 532170238)

$194.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 17720408

Screw 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover, Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

$

$

Not available

45

Electrolux/AYP 122822X

Ammeter
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 174653

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

52

Electrolux/AYP 141940

Protection Wire Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 163996

Socket, Light Bulb
(Superseded to 532175688)

$44.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 109748X

Relay Asm.
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0
