PR GT 20H50 B - Poulan Pro Garden Tractor (2000) Mower Deck Parts Diagram

Lawn Tractor

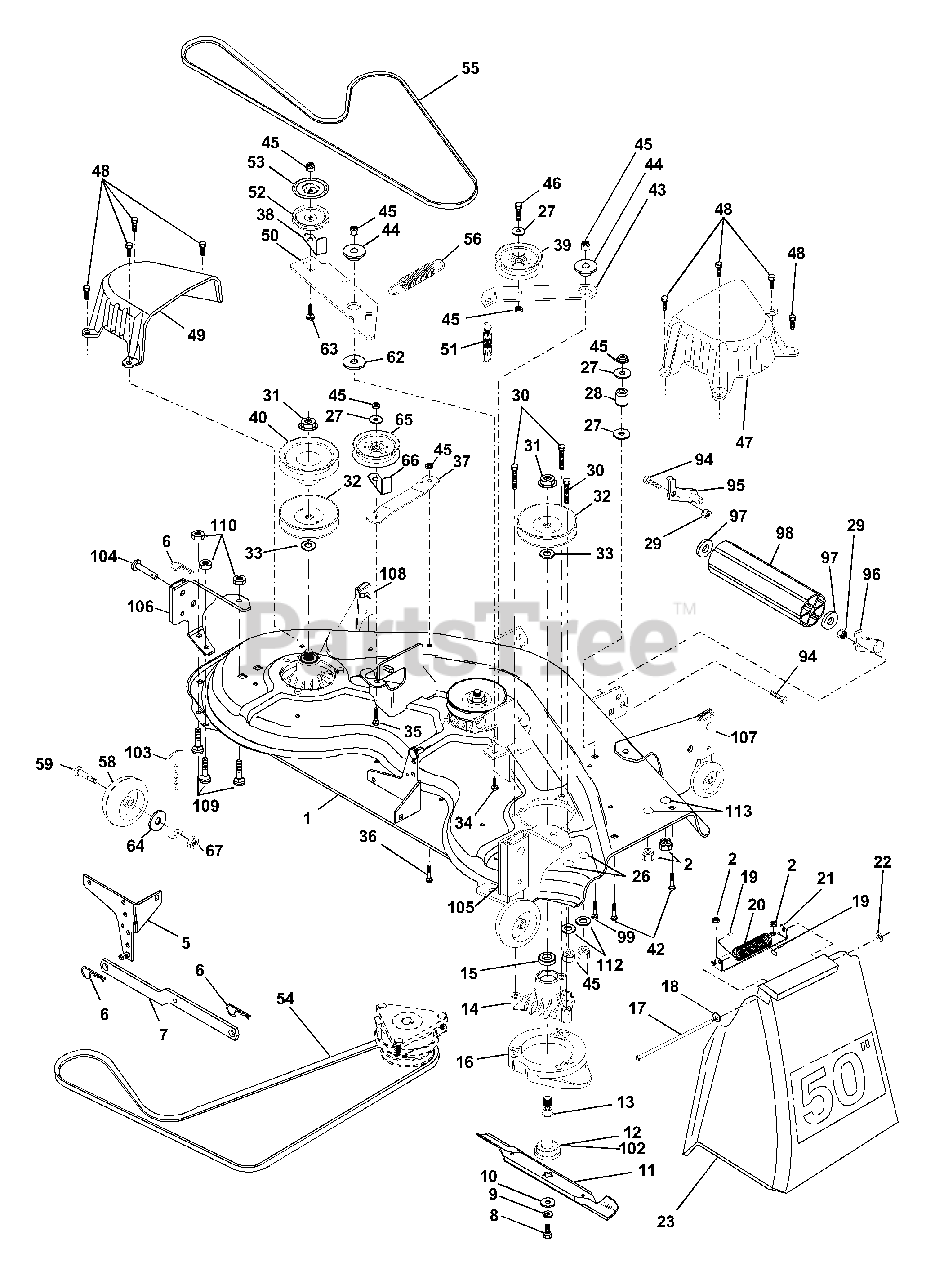

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 156990X421

Deck Asm., Mower 50"

$

$

Not available

2

Murray 73680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 138457

Bracket Asm., Sway Bar
(Superseded to 532138457)

$11.99

$

Usually ships in 3-10 days

0

6

Murray 4939M

Retainer, Spring

$

$

Not available

7

Electrolux/AYP 130832

Arm Suspension, Rear
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

Bolt 3/8-24 x 1.25 Gr. 8 Patched
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 10030600

Washer, Lock Hvy 3/8 Unplated
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

Washer, Hard Blade Mower Vented
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 137380

Blade (3 Required)
(Superseded to 532137380)

$22.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 129895

Bearing, Ball #6204 (Mandrel)
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137553

Shaft Asm., W/Lower Brg
(Superseded to 532137553)

Note: (Includes Key No. 12)

$37.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 137152

Housing, Mandrel 50" Vent
(Superseded to 532137152)

$40.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

Bearing, Ball Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 140329

Stripper, Mower Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 106735X

Rod, Hinge
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

19

Electrolux/AYP 105304X

Cap Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 123713X

Spring, Torison Delector
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 137607

Bracket, Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 110509X428

Shield, Deflector Mower
(Superseded to 532110509)

$

$

Not available

25

Electrolux/AYP 19111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 72110606

Bolt Rd Hd Sht Sqnk
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 132823

Spacer, Spring Stop Idler
(Superseded to 532132823)

$7.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 73800600

Nut, Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 157722

Screw Thd Rolling Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 137266

Nut, Flg Top Lock Cntr 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

32

Murray 153535

Pulley, Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 129963

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 72140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110616

Bolt, Carriage 3/8-16 x 2
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 72110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 137166

Stiffener, Arm Idler
(Superseded to 532137166)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 156085

Keeper, Belt Idler
(Superseded to 597024901)

$4.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 131494

Pulley, Idler Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Electrolux/AYP 136572

Pulley, Driven
(Superseded to 532136572)

$

$

Not available

42

Electrolux/AYP 72140506

Bolt, Carriage 5/16-18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 136460

Arm, Idler Secondary
(Superseded to 532136460)

$

$

Not available

44

Electrolux/AYP 122052X

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 74760628

Bolt, Fin Hex 3/8-16 Unc x 1-3/4

$2.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 137200

Cover, Mandrel RH
(Superseded to 532137200)

$

$

Not available

48

Electrolux/AYP 137729

Screw, Thd Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 136574

Cover, Mandrel LH
(Superseded to 532136574)

$

$

Not available

50

Electrolux/AYP 137272

Arm, Idler Primary
(Superseded to 532137272)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 137273

Spring, Secondary
(Superseded to 532137273)

$7.99

$

In Stock, Qty 5

0

52

Electrolux/AYP 139245

Pulley, Idler V Groove
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 137789

Shield, Idler
(Superseded to 532137789)

$

$

Not available

54

Electrolux/AYP 139573

V-Belt, Mower Primary
(Superseded to 532139573)

$51.99

$

In Stock, only 1 left!

0

55

Electrolux/AYP 144959

V-Belt, Mower Secondary
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 138687

Spring, Primary
(Superseded to 532138687)

$

$

Not available

58

Electrolux/AYP 133957

Wheel, Gauge
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

59

Electrolux/AYP 137644

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 72110612

Bolt Carriage 3/8-16 x 1-1/2
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 151831

Pulley Idler Flat Mower
(Superseded to 532173981)

$44.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 156009

Keeper, Belt Idler 50" Vent
(Superseded to 532156009)

$7.49

$

In Stock, only 1 left!

0

67

Electrolux/AYP 73930600

Nut, Center Lock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 74760616

Bolt H 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 132274

Bracket, Asm. Noseroller LH
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

96

Electrolux/AYP 132273

Bracket, Asm. Noseroller RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 19171416

Washer 17/32 x 7/8 x 16 Ga.
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

98

Electrolux/AYP 132264

Roller, Nose

$

$

Not available

99

Electrolux/AYP 72110614

Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

102

Electrolux/AYP 153390

Washer Felt
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

103

Electrolux/AYP 155986

Bar Adj. Gauge Wh.

$

$

Not available

104

Electrolux/AYP 156941

Pin Head Rivot
(Superseded to 532156941)

$

$

Not available

105

Electrolux/AYP 156852

Bracket Ga Wh Asm RH 50
(Superseded to 532156852)

$15.99

$

Usually ships in 3-10 days

0

106

Electrolux/AYP 156853

Bracket Ga Wh Asm LH 50
(Superseded to 532156853)

$

$

Not available

107

Electrolux/AYP 156854

Bracket Ga Wh Assy F RH 50

$10.99

$

Usually ships in 3-10 days

0

108

Electrolux/AYP 156856

Bracket Ga Wh Assy F LH 50
(Superseded to 532156856)

$26.99

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 72010505

Bolt Carraige 5/16- 18 x 5/8

$2.99

$

Usually ships in 3-10 days

0

110

Electrolux/AYP 73980500

Nut Crownlock 5/16-18

$

$

Not available

112

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 819171216)

$

$

Not available

113

Electrolux/AYP 72110504

Bolt Carriage 5/16-Unc 1/2
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

Electrolux/AYP 143651

Mandrel Asm
(Superseded to 532143651)

Note: (Includes Key Nos. 8-10, 12-15, 31 and 33)

$102.99

$

In Stock, only 4 left!

0

Electrolux/AYP 173532

Mower Asm Service
(Superseded to 532185831)

Note: (Std. Deck - Order separately all Nose Roller and all Gauge Wheel components)

$1092.99

$

Usually ships in 3-10 days

0
