PR GT 20H50 A - Poulan Pro Garden Tractor (2000) Lift Assembly Parts Diagram

Lawn Tractor

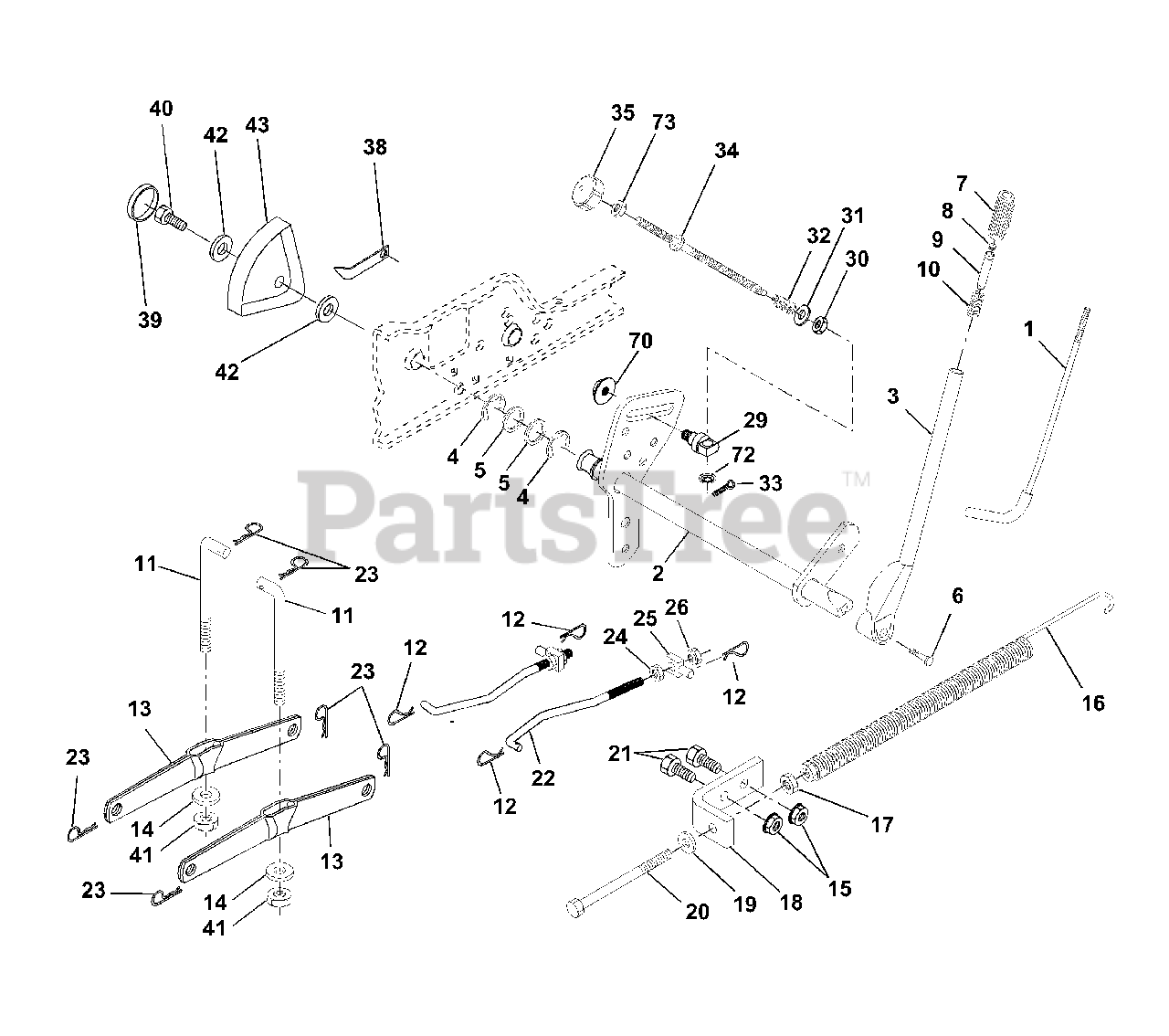

Lift Assembly Parts Diagram

  • Title
1

Electrolux/AYP 121006X

Rod Asm., Lever
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 159187

Shaft Asm., Lift Vgt
(Superseded to 177535)

$

$

Not available

3

Electrolux/AYP 159189

Lever Asm., Lift Rh
(Superseded to 532159189)

$

$

Not available

4

Electrolux/AYP 12000022

E-Ring Truarc #5133-87
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 19292016

Washer 29/32 x 1-1/4 x 16 Ga.
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 71110624

Bolt, Fin Hex 3/8-16 x 1-1/2
(Superseded to 871110624)

$

$

Not available

7

Electrolux/AYP 125631X

Grip, Handle
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 170770

Button, Plunger
(Superseded to 583047801)

$

$

Not available

9

Electrolux/AYP 122364X

Plunger, Lever Lift
(Superseded to 532122364)

$

$

Not available

10

Electrolux/AYP 2876H

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 146704

Link Lift
(Superseded to 532145543)

$

$

Not available

12

Electrolux/AYP 163552

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 139868

Arm, Suspension Vgt
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 140302

Bearing
(Superseded to 532169865)

$

$

Not available

15

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 674A247

Spring Asm., Assist Lift
(Superseded to 583791201)

$84.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 73350600

Nut, Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 143363

Bracket, Spring Assist
(Superseded to 532143363)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 5328J

Bolt, Adjust Spring Assist
(Superseded to 532005328)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 127218

Link, Front
(Superseded to 532127218)

$17.99

$

In Stock, only 4 left!

0

23

Murray 4939M

Retainer, Spring

$

$

Not available

24

Electrolux/AYP 73350800

Nut, Jam Hex 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

25

Electrolux/AYP 130171

Trunnion
(Superseded to 532175689)

$

$

Not available

26

Electrolux/AYP 73800800

Nut, Lock W/Wsh 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

29

Electrolux/AYP 150233

Trunnion Infin Height
(Superseded to 532150233)

$12.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 110807X

Nut, Special
(Superseded to 532110807)

$

$

Not available

31

Electrolux/AYP 19131016

Washer 13/32 x 5/8 x 16 Ga.
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

32

Electrolux/AYP 137150

Spring, Compression Inf Hgt
(Superseded to 532137150)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 76020308

Pin, Cotter 3/32 x 1/2
(Superseded to 876020308)

$

$

Not available

34

Electrolux/AYP 137167

Rod, Adj Lift
(Superseded to 532137167)

$7.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 138057

Knob, Inf 3/8-16 Unc
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 155097

Pointer Height Indicator
(Superseded to 532155097)

$

$

Not available

39

Electrolux/AYP 123935X

Plug, Hole Blk. 1.485/1.515 Dia.
(Superseded to 532123935)

$5.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 17060516

Screw 5/16-18 x 1
(Superseded to 817060516)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 73540600

Nut, Crownlock 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 19112410

Washer 11/32 x 1-1/2 x 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 123934X

Scale, Indicator Height
(Superseded to 532123934)

$

$

Not available

70

Murray 145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

72

Electrolux/AYP 110452X

Nut Push Phos & Oil
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

73

UNKNOWN

$

$

Not available
