PR GT 2046 B - Poulan Pro Garden Tractor (2001) Engine Parts Diagram

Lawn Tractor

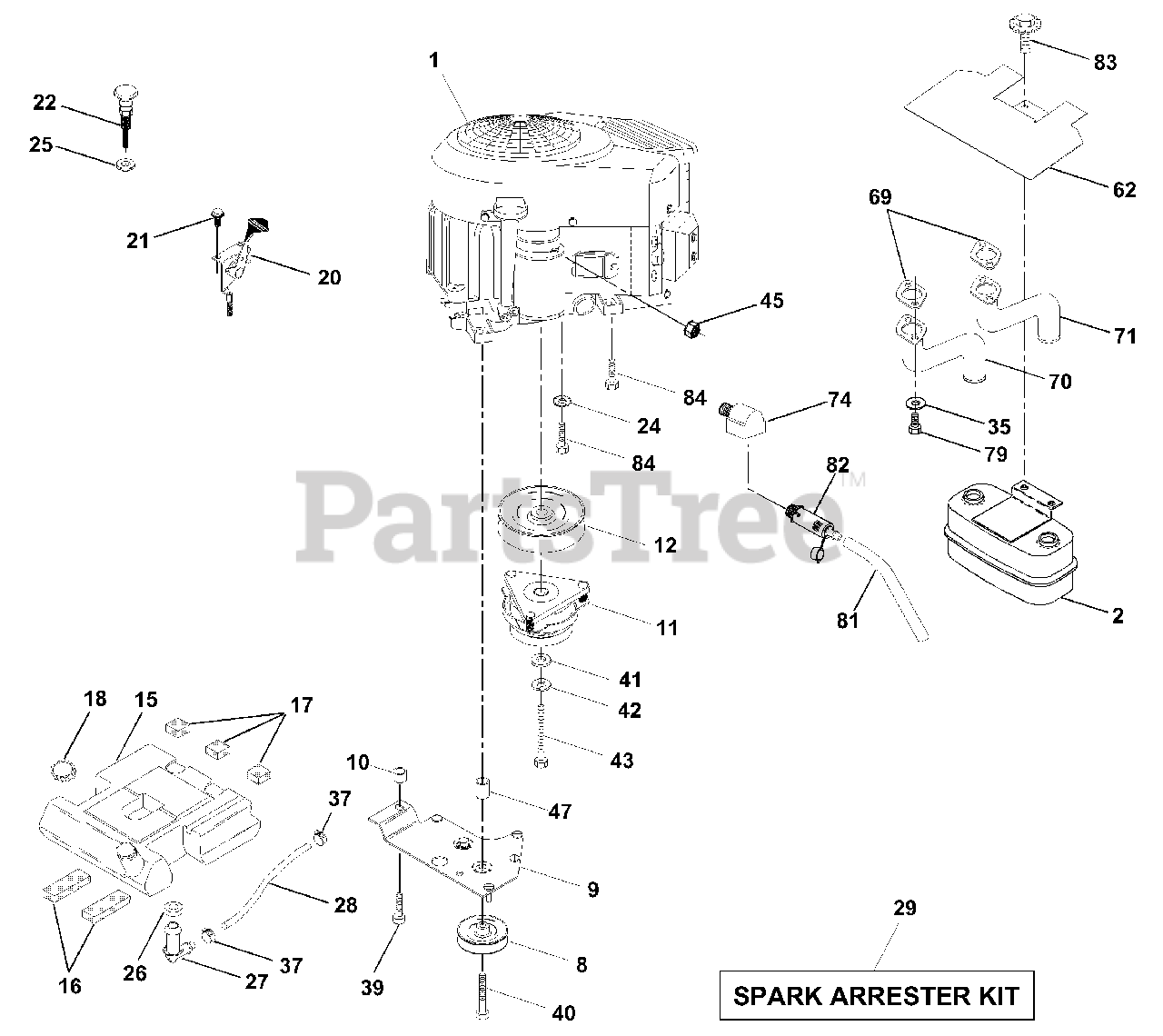

Engine Parts Diagram

  • Title

1

Engine Briggs Model No. 407777

Note: (Order parts from engine manufacturer)

$

$

Not available

2

Electrolux/AYP 149723

Muffler
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 121361X

Pulley V-Idler
(Superseded to 532121361)

$

$

Not available

9

Electrolux/AYP 177748

Keeper Asm Belt Engine Vgt
(Superseded to 532177748)

$

$

Not available

10

Electrolux/AYP 175287

Bushing
(Superseded to 532175287)

$

$

Not available

11

Electrolux/AYP 170056

Clutch Electric
(Superseded to 532174509)

$546.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 143996

Pulley Engine Grnd Drive
(Superseded to 532143996)

$53.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 151346

Tank Fuel Rear 3.50 YT/GT
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 109227X

Pad Spacer
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 106082X

Pad Spacer
(Superseded to 532106082)

$

$

Not available

18

Electrolux/AYP 140527

Cap Asm Fuel Top Vent N/Lany
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 175437X428

Control Throttle
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 164863

Screw HWHD Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 175440X428

Control Choke
(Superseded to 532175440)

$34.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 11050600

Lockwasher Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73920600

Nut Keps 3/8-24 UNF
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 3645J

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 139277

Stem Tank Fuel
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 7834R

Fuel Line

$

$

Not available

29

Electrolux/AYP 137180

Spark Arrester Kit
(Superseded to 532137180)

$

$

Not available

35

Electrolux/AYP 10040500

Washer Lock Hvy HLCL Spr. 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 123487X

Clamp Hose
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

39

Electrolux/AYP 17490636

Screw 3/8 - 16 x 2-1/4 UNC TT
(Superseded to 817490636)

$2.49

$

In Stock, Qty 6

0

40

Electrolux/AYP 17490664

Screw 3/8 - 16 x 4 UNC TT
(Superseded to 817490664)

$

$

Not available

41

Electrolux/AYP 126197X

Washer 1-1/2 OD X 15/32 ID X .250
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 10040700

Washer Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 173937

Bolt Hex 7/16-20 x 4 Gr. 5-1.5 Thr.
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

45

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

47

Electrolux/AYP 175288

Bushing
(Superseded to 532175288)

$

$

Not available

62

Electrolux/AYP 146629

Shield Heat Muffler
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 165391

Gasket Muffler
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 176069

Tube Exhaust LH
(Superseded to 532176069)

$51.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 176070

Tube Exhaust RH
(Superseded to 532176070)

$78.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 162295

Elbow Street Brass
(Superseded to 532162295)

$34.99

$

In Stock, only 1 left!

0

79

Electrolux/AYP 71070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 5

0

81

Electrolux/AYP 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$6.99

$

In Stock, Qty 5

0

82

Electrolux/AYP 148315

Plug Oil Drain Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

83

Electrolux/AYP 171877

Bolt 5/16-18 Unc x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, only 2 left!

0

84

Electrolux/AYP 17490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0
