PR 8P27 ES (961920046-05) - Poulan Pro Snow Thrower (2012-08) HANDLE Parts Diagram

Snow Thrower

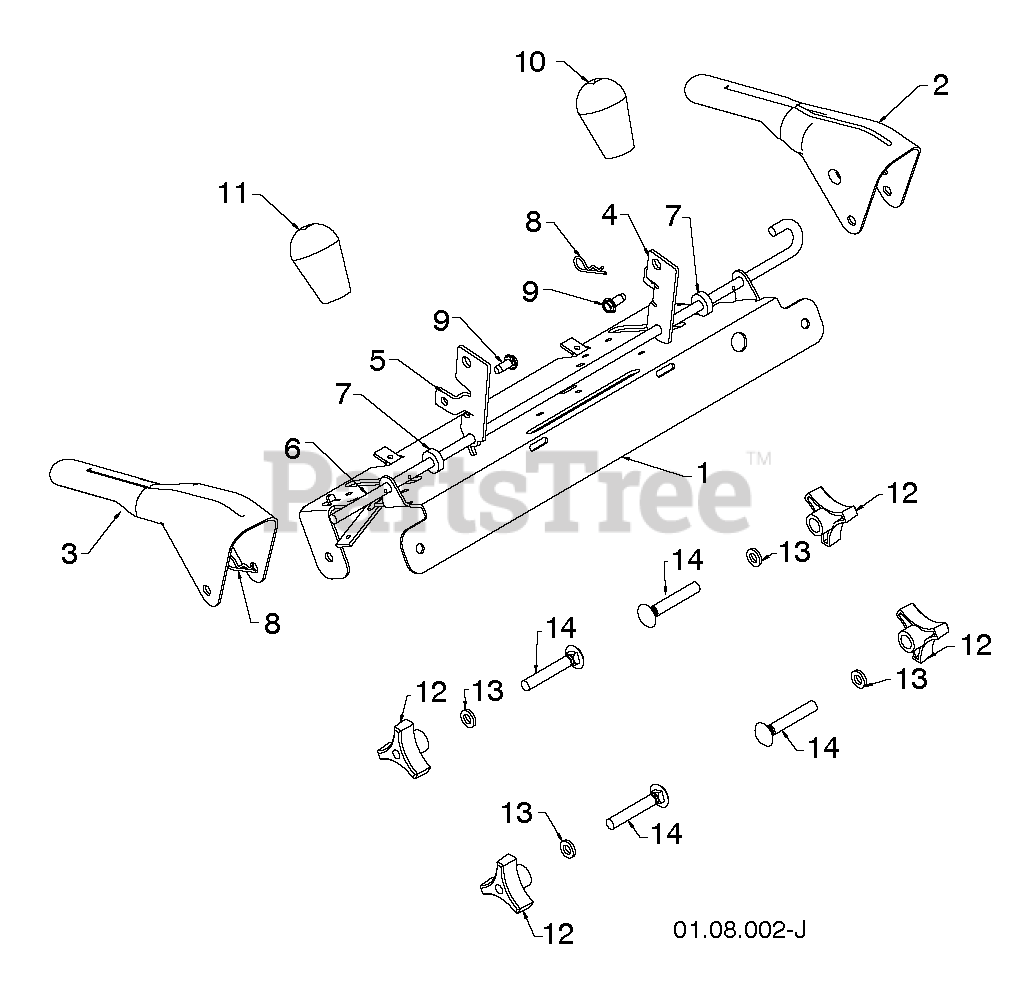

HANDLE Parts Diagram

  • Title

1

Poulan 532415539

PANEL.CONTROL.PNT.BLACK

$27.99

$

Usually ships in 3-10 days

0

2

Poulan 580687802

LEVER.CONTROL.LH.BLACK

Note: LH

$28.99

$

Usually ships in 3-10 days

0

3

Poulan 580687702

LEVER.CONTROL.RH.PNT.BLACK

Note: RH

$22.99

$

Usually ships in 3-10 days

0

4

Poulan 532415546

ARM.TRACTION.ROD.YZ

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 532429098

ARM.IMPELLER.ROD.

$

$

Not available

6

Poulan 532412677

BAIL.CONTROL.INTERLOCK

$14.99

$

Usually ships in 3-10 days

0

7

Poulan 532421613

SPACER.CONTROL.LEVER

$4.99

$

In Stock, only 1 left!

0

8

Poulan 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

9

Poulan 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

10

Poulan 532414280

KNOB LEVER, BLACK

$7.99

$

Usually ships in 3-10 days

0

11

Poulan 532414281

RED KNOB SHIFTER

$22.99

$

In Stock, only 1 left!

0

12

Poulan 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

13

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

14

Poulan 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0
