PR 8527 ES (961920017-06) - Poulan Pro Snow Thrower (2008-10) Handles Parts Diagram

Snow Thrower

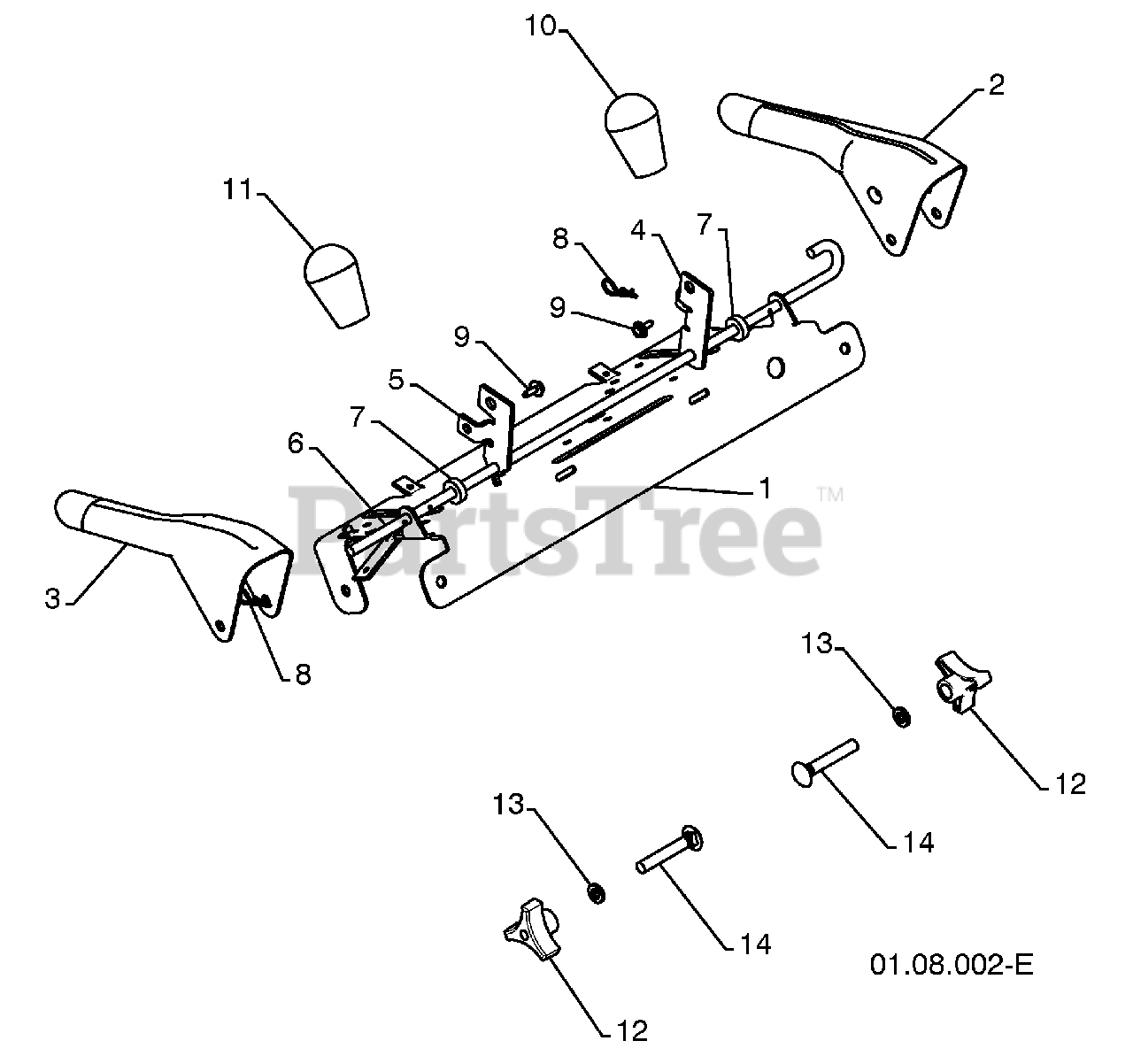

Handles Parts Diagram

  • Title

1

Electrolux/AYP 412683X479

CONTROL PANEL
(Superseded to 532415539)

$27.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 412681X479

CONTROL LEVER LH

$10.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 412682X479

CONTROL LEVER RH

$10.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 412679X008

TRACTION ROD ARM
(Superseded to 532415546)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 420889X008

IMPELLER ROD ARM
(Superseded to 532420889)

$

$

Not available

6

Electrolux/AYP 412677

INTERLOCK ROD
(Superseded to 532412677)

$14.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 421613

SPACER

$4.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 169675

RETAINER
(Superseded to 532169675)

$7.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 17060408

SCREW 1/4-20 X .50
(Superseded to 817060408)

$5.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 414280

KNOB BLACK
(Superseded to 532414280)

$7.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 414281

KNOB RED
(Superseded to 532414281)

$22.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 178899

HANDLE KNOB
(Superseded to 532178899)

$8.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 19131316

WASHER 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 72120618

CARRIAGE BOLT 3/8-16 X 2.25
(Superseded to 872120618)

$7.49

$

Usually ships in 3-10 days

0
