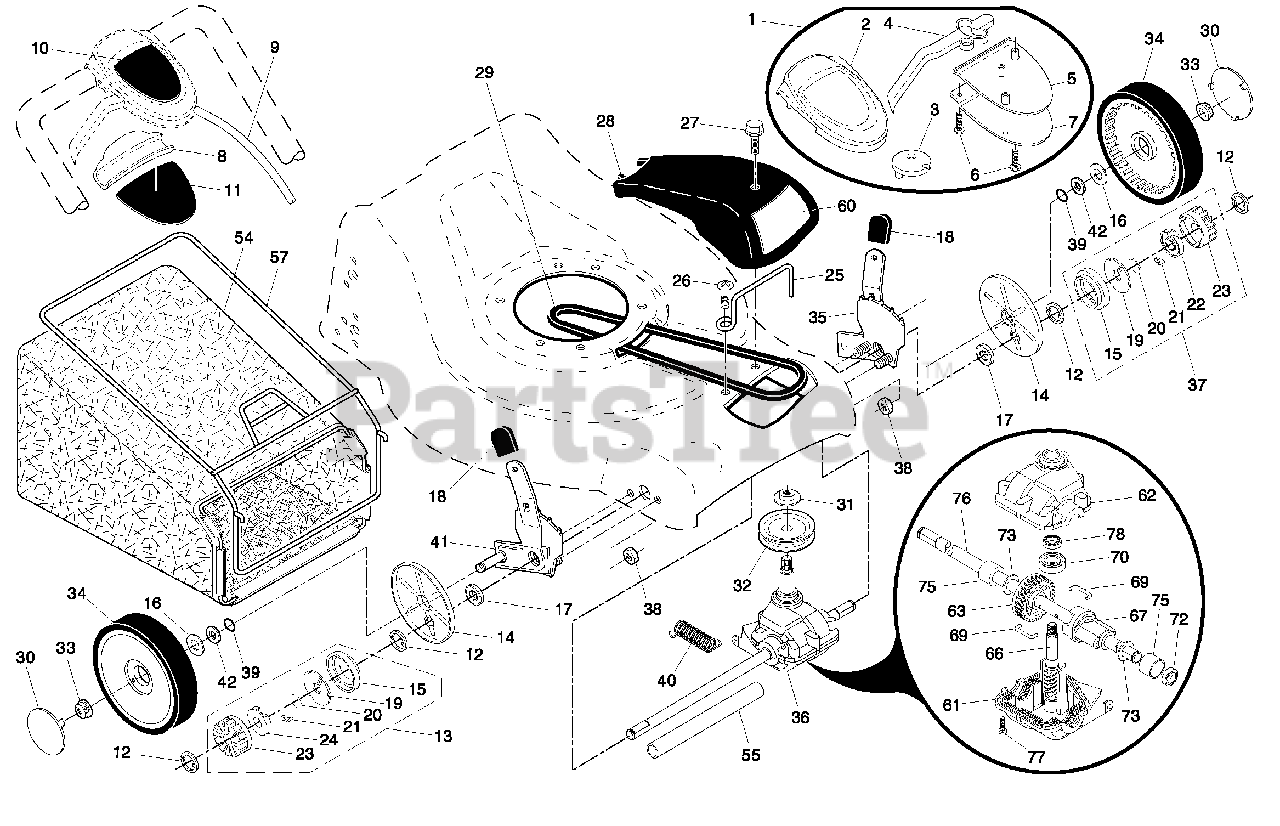

PR 7Y21RHP (961420012-01) - Poulan Pro Walk-Behind Mower (2004-01) Drive Parts Diagram

Walk-Behind Mower

Drive Parts Diagram

  • Title
1

$

$

Not available

2

Electrolux/AYP 151721X479

Lower Handle
(Superseded to 532175245)

$

$

Not available

3

Electrolux/AYP 187940X428

Control Bar
(Superseded to 532196177)

$

$

Not available

4

Electrolux/AYP 183567

Engine Zone Control Cable
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 189713X428

Handle Knob
(Superseded to 532185577)

$9.49

$

In Stock, Qty 18

0

7

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 180479

Kit, Rear Door
(Superseded to 532180479)

Note: (Includes Key Numbers 16 and 17)

$40.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 175069X479

Support Bracket, LH
(Superseded to 583389301)

$14.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 175070X479

Support Bracket, RH

$

$

Not available

13

Electrolux/AYP 17060410

Screw 1/4-20 x 5/8
(Superseded to 817060410)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 181016X428

Handle Bracket Assembly, LH
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 181017X428

Handle Bracket Assembly, RH
(Superseded to 532433866)

$13.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 180071

Spring, Rear Door, LH
(Superseded to 532180071)

$

$

Not available

17

Electrolux/AYP 180072

Spring, Rear Door, RH
(Superseded to 532180072)

$7.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 132004

Keps Locknut 1/4-20

$

$

Not available

19

Electrolux/AYP 179585

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 189005

Rear Skirt
(Superseded to 532413159)

$17.99

$

In Stock, only 3 left!

0

21

Electrolux/AYP 88652

Hinge Screw 1/4-20 x 1-1/4
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 185005

Pulley, Engine
(Superseded to 532185005)

$31.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 187723

Key, Hi-Pro
(Superseded to 532187723)

$

$

Not available

24

Engine, Briggs & Stratton, Model Number 12H602

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

25

Electrolux/AYP 850999

Screw, Hex Head, Threaded, Rolled 3/8-16 x 2
(Superseded to 532850999)

$7.49

$

In Stock, only 2 left!

0

26

Electrolux/AYP 83923

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 195630

Wheel & Tire Assembly, Rear, 14"
(Superseded to 583227101)

$

$

Not available

28

Electrolux/AYP 160828

Bolt, Shoulder 5/16-18
(Superseded to 532160828)

$

$

Not available

30

Electrolux/AYP 180411X004

Axle Arm Assembly, Rear, RH
(Superseded to 583701301)

$

$

Not available

31

Electrolux/AYP 175478

Selector Knob
(Superseded to 583069301)

$10.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 175053X004

Selector Spring
(Superseded to 532175053)

$

$

Not available

33

Electrolux/AYP 73800500

Nut, Hex, Nylock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 180412X004

Axle Arm Assembly, Rear, LH
(Superseded to 532185707)

$12.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 150635X428

Hubcap
(Superseded to 583679901)

$

$

Not available

36

Electrolux/AYP 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

37

Electrolux/AYP 150078

Thread Cutting Screw w/Sems 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

38

Electrolux/AYP 19112206

Washer, Flat .34 x 1.38
(Superseded to 819112206)

$5.99

$

In Stock, Qty 5

0

40

Electrolux/AYP 701313

Spacer, Engine
(Superseded to 584456801)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 192325

Screw, Debris Shield
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 187038

Debris Shield
(Superseded to 532187038)

$9.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 176710

Kit, Housing
(Superseded to 532176710)

Note: (Includes Key Numbers 10, 11, 12 and 45)

$218.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 107339X

Danger Decal
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 193707

Blade Adapter
(Superseded to 532418373)

$11.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 189028

Blade, 21"
(Superseded to 532189028)

$22.99

$

In Stock, Qty 6

0

48

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

49

Electrolux/AYP 850263

Helical Washer 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 179617

Blade Bolt, Hex Head, Grade 8
(Superseded to 532179617)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 750634

Screw #10-24 x 1/2
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

58

Electrolux/AYP 850733X004

Upstop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

59

Electrolux/AYP 175071

Discharge Deflector
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 175735

Hinge Bracket
(Superseded to 532175735)

$

$

Not available

61

Electrolux/AYP 175285

Spring, Torsion
(Superseded to 532193000)

$7.49

$

In Stock, only 3 left!

0

62

Electrolux/AYP 175650

Rod, Hinge
(Superseded to 532175650)

$7.49

$

In Stock, Qty 10

0

63

Electrolux/AYP 73800400

Nut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 175066

Mulcher Door
(Superseded to 532175066)

$11.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 188152

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 88348

Washer, Flat 3/8
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

67

Electrolux/AYP 193498

Kit, Bushing, High Wheel
(Superseded to 532193498)

$10.99

$

In Stock, only 2 left!

0

68

Electrolux/AYP 193028X428

Bushing, Nylon, Black
(Superseded to 584463301)

$7.49

$

In Stock, only 2 left!

0

96

Electrolux/AYP 192770

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

96

Electrolux/AYP 162300

Warning Decal
(Superseded to 532162300)

Note: (not shown)

$

$

Not available

96

Electrolux/AYP 193733

Operator's Manual, English
(Superseded to 917193733)

$

$

Not available

96

Electrolux/AYP 193736

Operator's Manual, French

$

$

Not available

96

Electrolux/AYP 195825

Repair Parts Manual, English / French

$

$
