PR 7Y21CH A - Poulan Pro Walk-Behind Mower (2004-06) Limited Warranty Parts Diagram

Walk-Behind Mower

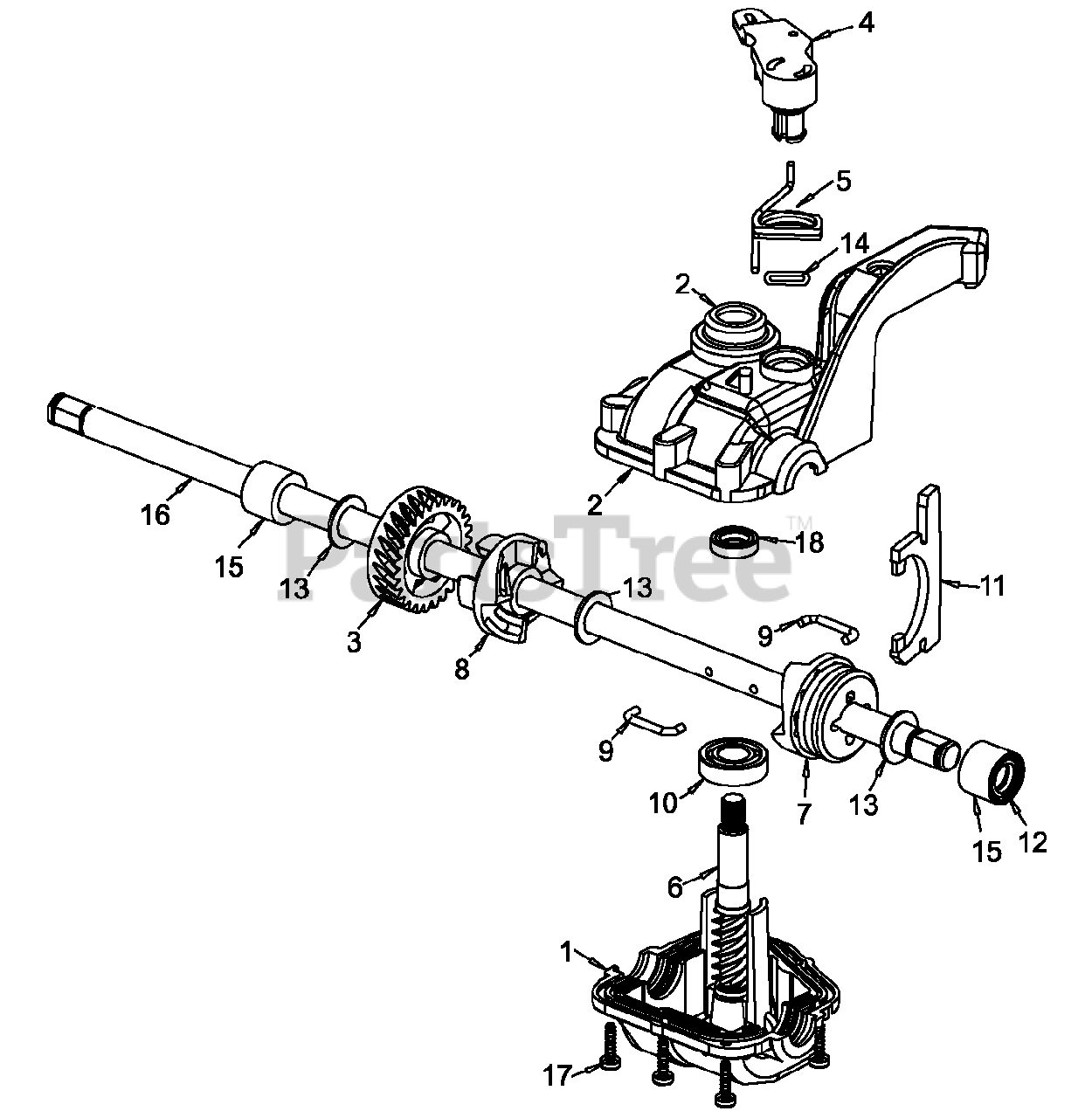

Limited Warranty Parts Diagram

  • Title
1

Electrolux/AYP 183497

Case, Lower
(Superseded to 532183497)

$15.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 183498

Case, Upper
(Superseded to 532183498)

$15.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 183499

Gear, 27 Teeth
(Superseded to 532183499)

$17.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 183500

Lever, Clutch
(Superseded to 532183500)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 183501

Spring, Return
(Superseded to 532183501)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 183502

Shaft, Input
(Superseded to 532183502)

$30.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 183503

Dog, Movable
(Superseded to 532183503)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 183504

Dog, Fixed
(Superseded to 532183504)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 183505

Wire, Formed
(Superseded to 532183505)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 183506

Bearing, Ball
(Superseded to 532183506)

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 183507

Fork, Shift
(Superseded to 532183507)

$9.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 183508

Seal, Output Shaft
(Superseded to 532183508)

$11.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 183509

Washer
(Superseded to 532183509)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 183510

Seal, Case
(Superseded to 532183510)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 183511

Bushing
(Superseded to 532183511)

$5.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 183512

Shaft, Output
(Superseded to 532183512)

$46.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 183513

Screw
(Superseded to 532183513)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 183514

Seal, Input Shaft
(Superseded to 532183514)

$7.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 183404

Kit, Gearcase Replacement
(Superseded to 532180184)

Note: (Includes Instructions)

$

$

Not available
