PR 725 Y22RP (961480056-00) - Poulan Pro Walk-Behind Mower (2016-02) DRIVE Parts Diagram

Walk-Behind Mower

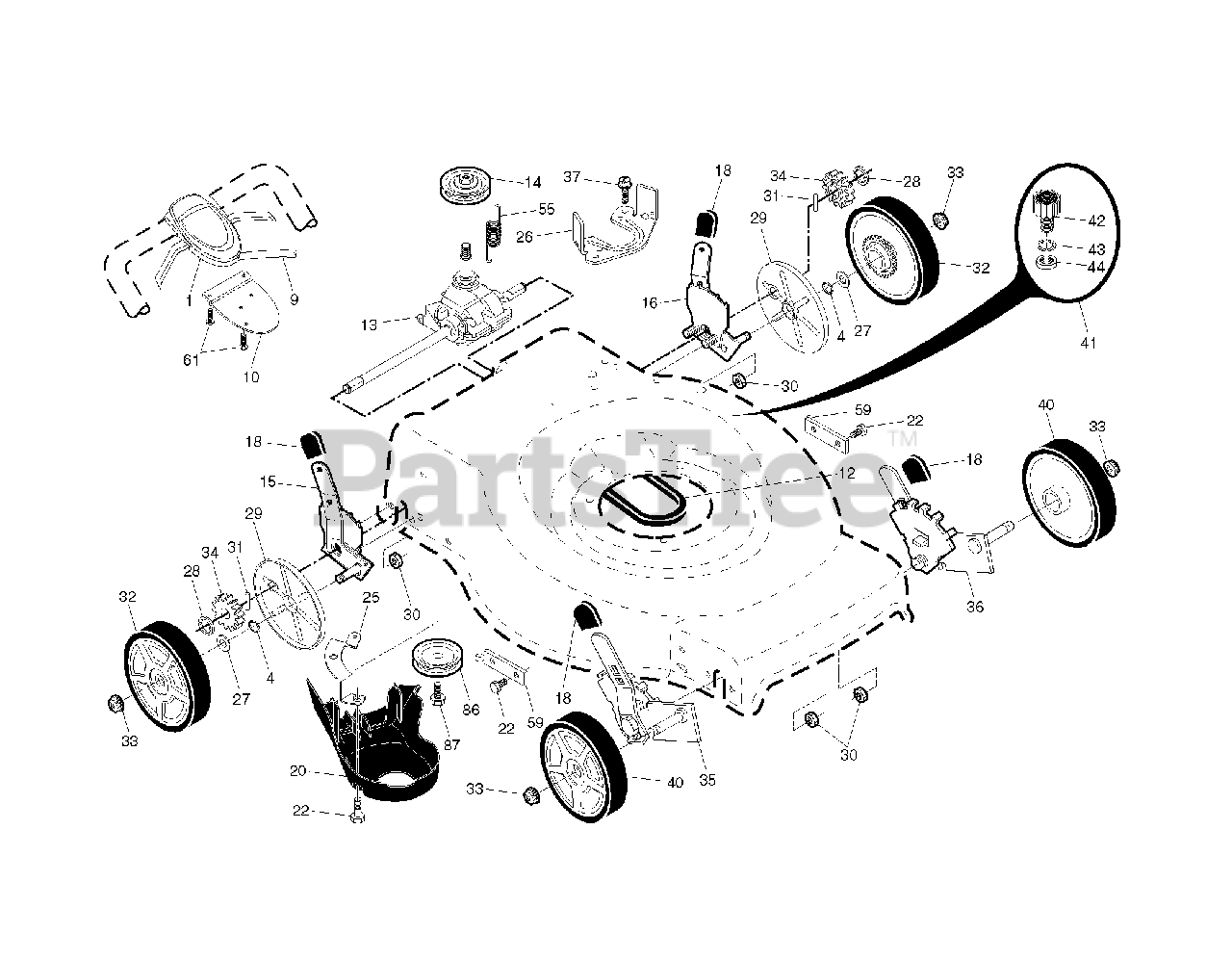

DRIVE Parts Diagram

  • Title

1

Poulan 501408105

CONTROL.EZ2.22+RG.ST.BLK/BLK

Note: . 9

$79.99

$

Usually ships in 3-10 days

0

4

Poulan 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 581952101

CABLE.DRIVE.RWD.WALK.

$34.99

$

In Stock, Qty 20+

0

10

Poulan 587249302

Dual Trigger Control Bracket

$

$

Not available

12

Poulan 580364604

Drive Belt, RGD SS

$13.99

$

In Stock, Qty 9

0

13

Poulan 581680801

TRANSMISSION.22+AWD.WALK.MOWER
(Superseded to 532434564)

$148.99

$

In Stock, Qty 20+

0

14

Poulan 586963001

Drive Pulley, Sm Awd/Rwd
(Superseded to 586963002)

$11.99

$

In Stock, Qty 12

0

15

Poulan 581497908

Adjuster Assembly Kit, RH Front

Note: RH

$22.99

$

In Stock, Qty 8

0

16

Poulan 581497907

Adjuster Assembly Kit, LH Front

Note: LH

$

$

Not available

18

Poulan 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

20

Poulan 580806901

COVER.REAR.DRIVE.22+2013

$31.99

$

In Stock, only 1 left!

0

22

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

25

Poulan 581313802

BRACKET.DRIVE.COVER.RGD.

$11.99

$

Usually ships in 3-10 days

0

26

Poulan 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

27

Poulan 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

28

Poulan 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, only 1 left!

0

30

Poulan 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

31

Poulan 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

32

Poulan 581685505

WHEEL.8X1.75.5SPK.RAD3.421.BU2
(Superseded to 583630801)

$22.99

$

Usually ships in 3-10 days

0

33

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Poulan 532404835

PINIION.14.TOOTH.RGD

$6.99

$

Usually ships in 3-10 days

0

35

Poulan 532431138

ADJUSTER.ASM.9POS.LW.RL/RGD.FR

Note: RH

$

$

Not available

36

Poulan 532431139

ADJUSTER.ASM.9POS.LW.RR/RGD.

Note: LH

$

$

Not available

37

Poulan 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

40

Poulan 532197985

NO LONGER AVAILABLE
(Superseded to 532412173)

$15.99

$

Usually ships in 3-10 days

0

41

Poulan 532421114

KIT.WASH-OUT.PORT

$24.99

$

In Stock, only 2 left!

0

42

Poulan 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

43

Poulan 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

44

Poulan 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

55

Poulan 581351301

SPRING.RETURN.AUTO.

$10.99

$

In Stock, Qty 5

0

59

Poulan 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

61

Poulan 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

86

Poulan 587969201

Idler Pulley, RWD Double Seal

$14.99

$

In Stock, Qty 20+

0

87

Poulan 581127601

SCREW

$7.99

$

In Stock, Qty 11

0
