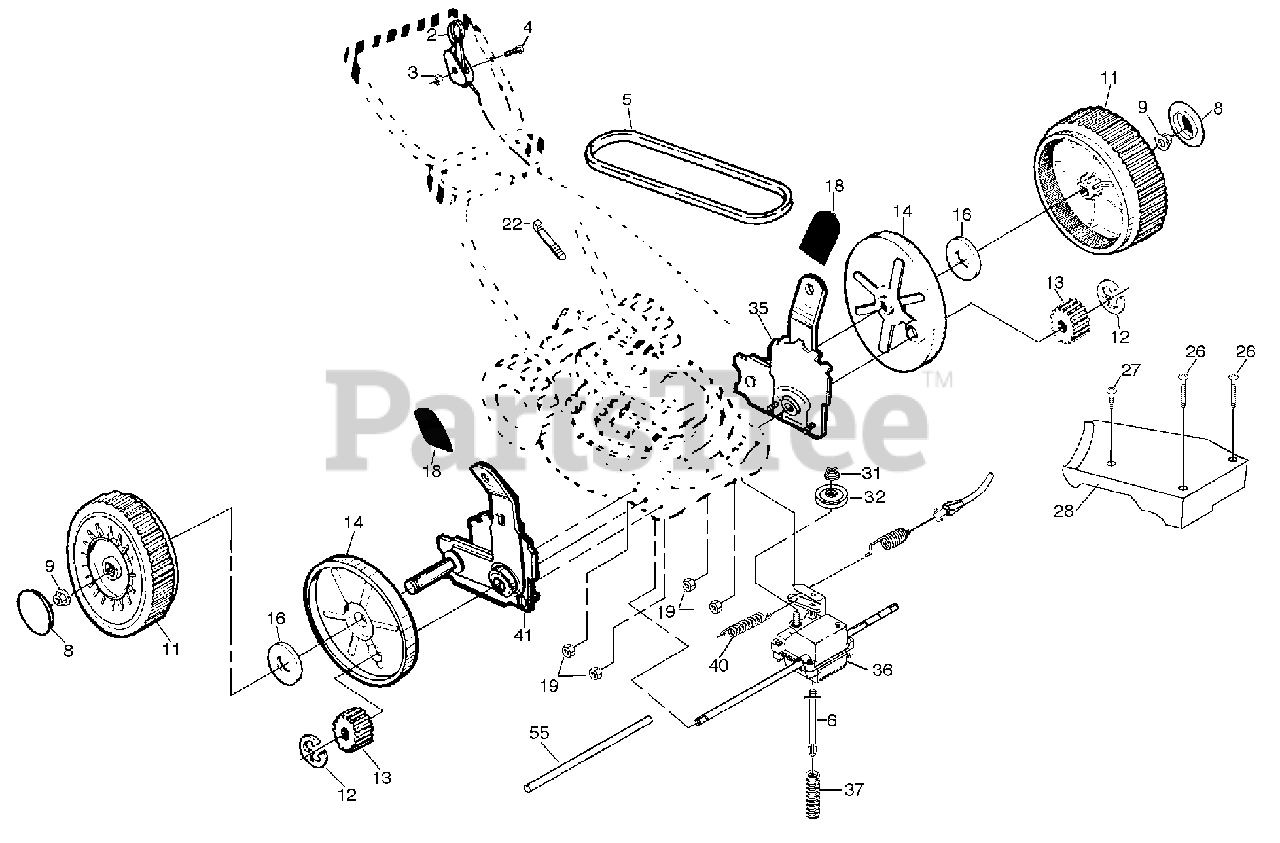

PR 6Y22SH A - Poulan Pro Walk-Behind Mower (2000-02) Drive Parts Diagram

Walk-Behind Mower

Drive Parts Diagram

  • Title

1

Electrolux/AYP 151721X479

Lower Handle
(Superseded to 532175245)

$

$

Not available

2

Electrolux/AYP 153638

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

3

Electrolux/AYP 63601

Locknut 1/4-20

$

$

Not available

4

Electrolux/AYP 131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

5

Electrolux/AYP 170287

Control Bar
(Superseded to 583678201)

$

$

Not available

6

Electrolux/AYP 66426

Wire Ties
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 170294

Throttle Control
(Superseded to 532170294)

$14.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 751772X479

Mulcher Plate

$

$

Not available

10

Electrolux/AYP 130861

Engine Zone Control Cable
(Superseded to 532130861)

$

$

Not available

11

Electrolux/AYP 166862X479

Upper Handle
(Superseded to 532166862)

$84.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 170146

Handle Knobs
(Superseded to 532183724)

$

$

Not available

14

Electrolux/AYP 140540

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 750097

Hex Head Screw
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

16

Electrolux/AYP 170345X479

Handle Bracket Assembly (Right)
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 170346X479

Handle Bracket Assembly (Left)
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 149741

Screw 5/16-18 x 3/4
(Superseded to 532149741)

$7.49

$

In Stock, Qty 6

0

20

Electrolux/AYP 134612

Debris Shield

$

$

Not available

21

Electrolux/AYP 751592

Locknut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 700325X007

Wheel Adjusting Bracket
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

24

Electrolux/AYP 87584X004

Skirt Bracket
(Superseded to 532192301)

$

$

Not available

25

Electrolux/AYP 700331X004

Selector Spring
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 170143

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 750913X004

Axle Arm Assembly
(Superseded to 532750913)

$

$

Not available

28

Electrolux/AYP 61651

Belleville Washer

$2.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

30

Electrolux/AYP 170258

Wheel & Tire Assembly (Rear)
(Superseded to 532170258)

$84.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 83923

Flanged Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 88348

Flat Washer
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

33

Electrolux/AYP 750386X479

Wheel Support Bracket (RT)

$

$

Not available

34

Electrolux/AYP 750388X479

Wheel Support Bracket (LT)

$

$

Not available

35

Electrolux/AYP 17600406

Screw
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 150406

Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 851201X004

Engine Washer

$

$

Not available

38

Electrolux/AYP 63601

Nut

$

$

Not available

39

Electrolux/AYP 170031

Front Baffle Kit
(Superseded to 532170031)

$

$

Not available

40

Electrolux/AYP 172837

Mower Housing Kit
(Superseded to 583056201)

Note: (Includes Key No. 61)

$122.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 850263

Helical Washer 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 141114

22" Blade
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 147286

Hinge Rod
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

49

Electrolux/AYP 87593

Housing Bracket
(Superseded to 532087593)

$6.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 87589

Torsion Spring
(Superseded to 532087589)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 750149

Discharge Guard

$

$

Not available

55

Electrolux/AYP 87677

Hi-Pro Key
(Superseded to 532087677)

$

$

Not available

57

Electrolux/AYP 84596

Engine Pulley
(Superseded to 532084596)

$34.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 213146

Cable Clamp

$

$

Not available

59

Electrolux/AYP 83816

Screw #10 x 5/8
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 107339X

Danger Decal
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

62

Engine - Briggs & Stratton 12H802

Note: (Order parts from engine manufacturer)

$

$

Not available

65

Electrolux/AYP 74760612

Bolt
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

66

Electrolux/AYP 751592

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 165175X479

Support Rod
(Superseded to 532165175)

$10.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 54583

Screw hex Tap. 1/4/20
(Superseded to 532054583)

$

$

Not available

69

Electrolux/AYP 57143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

70

Electrolux/AYP 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 162300

Warning Decal
(Superseded to 532162300)

$

$

Not available

70

Electrolux/AYP 134027X479

Rear Baffle

Note: (Not Shown)

$

$

Not available

70

Electrolux/AYP 172787

Operator's Manual (English)

$

$

Not available

70

Electrolux/AYP 172788

Operator's Manual (French)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 173816

Repair Parts Manual

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP GCK3200

Grass Catcher

Note: Available accessories not included with lawn mower:

$

$

Not available
